Name: Jamicon Electrolytic capacitor Radial lead 5 mm 680 µF 50 V 20 % 1 pc(s)
Brand: Jamicon
SKU: 3463011

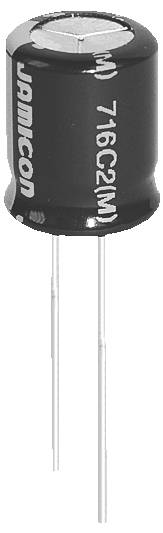

A black cylindrical capacitor with two metal leads, labeled 'Jamicon 716C21M'.

Product type

Electrolytic capacitor

Type

Radial lead

Capacity (elec.)

680 µF

Nominal voltage

50 V

5 mm

Datasheet (PDF)

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Jamicon electrolytic capacitor 680UF 50V 12.5x25mm RM5 loose

Our service for you

Technical specifications

ESD Packaging: No ESD
Series TL
Design_1: Radial
Applications: Suitable for EVG, adapter and switched-mode power supply
Technology: Aluminium electrolytic capacitor
Mounting type_1: THT
Delivery form_1: Loose
Connections_1: 2-pin
Characteristics_1: Low impedance and long life with a continuous load of 5000 hours.
Wire diameter 0.6 mm.
Pitch_1:5 mm
Capacity 680 µF
Capacity_1: 680
Unit of capacity: µF
Capacity Tolerance 20%
Loss factor tan δ: 0.1
Leakage current 3 µA
Ripple current 1.83 mA
Equivalent Series Resistance (ESR): 0.059 ohms
Nominal voltage DC 50 V
Surge voltage 63 V
Lifetime_1: 5,000 h

Product type: Electrolytic capacitor

Type: Radial lead

CS: 5 mm

Capacity (elec.): 680 µF

Nominal voltage: 50 V

Tolerance ±: 20 %

Height: 25.0 mm

Content: 1 pc(s)

Material: Aluminium

RoHS-compliant: Yes

Type: JTL687M050S1ABK25L

Operating temperature (max.): 105 °C

Operating temperature (min.): 55 °C
