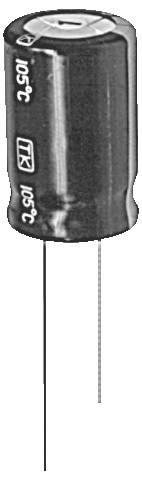

Jamicon JTK338M050S1GMN35L // TKR332M1HL35M Electrolytic capacitor Radial lead 7.5 mm 3.300 µF 50 V 20 % (Ø x H) 18 mm x
Packaging type
Piece
Product type
Electrolytic capacitor
Type
Radial lead
Capacity (elec.)
3.300 µF
Nominal voltage
50 V
Datasheet (PDF)
Part number:
Item no:
Technical specifications
- ESD Packaging: No ESD
- Series TK
- Design_1: Radial
- Applications: For general purposes, decoupling, bypass and filter circuits in consumer electronics
- Technology: Aluminium electrolytic capacitor
- Mounting type_1: THT
- Delivery form_1: Loose
- Connections_1: 2-pin
- Properties_1: Small design
- In an aluminum cup, insulated
- Radial connections
- Extended temperature range (up to 105°C)
- High reliability
- Wire diameter 0.8 mm.
- Pitch_1:7.5 mm
- Capacity 3,300 µF
- Capacity_1: 3,300
- Unit of capacity: µF
- Capacity Tolerance 20%
- Loss factor tan δ: 0.1
- Leakage current 4 µA
- Ripple current 2,360 mA
- Nominal voltage DC 50 V
- Surge voltage 63 V
- Lifetime_1: 2,000 h
- Packaging type
Piece
- Product type
Electrolytic capacitor
- Type
Radial lead
- CS
7.5 mm
- Dim
(Ø x H) 18 mm x 35.0 mm
- Capacity (elec.)
3.300 µF
- Nominal voltage
50 V
- Tolerance ±
20 %
- Height
35.0 mm
- (Ø)
18 mm
- Content
1 pc(s)
- Material
Aluminium
- Width
18 mm
- Length
35.0 mm
- RoHS-compliant
Yes
- Max. temperature
105 °C
- Type
JTK338M050S1GMN35L // TKR332M1HL35M
- Operating temperature (max.)
105 °C
- Operating temperature (min.)
-55 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3462993 Jamicon JTK338M050S1GMN35L // TKR332M1HL35M Electrolytic capacitor Radial lead 7.5 mm 3.300 µF 50 V 20 % (Ø x H) 18 mm x
User & Safety Instructions
User & Safety Instructions 3462993 Jamicon JTK338M050S1GMN35L // TKR332M1HL35M Electrolytic capacitor Radial lead 7.5 mm 3.300 µF 50 V 20 % (Ø x H) 18 mm x
Description
Miniature electrolytic capacitors radial 50V 20% 105°C
