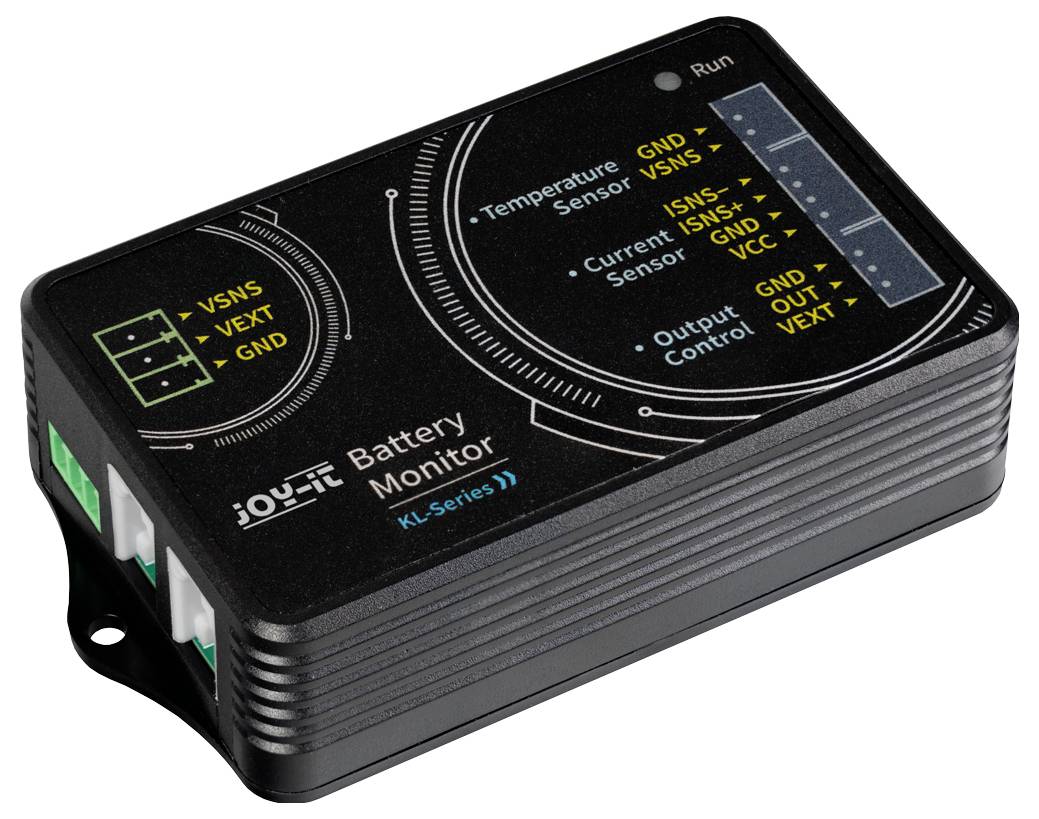

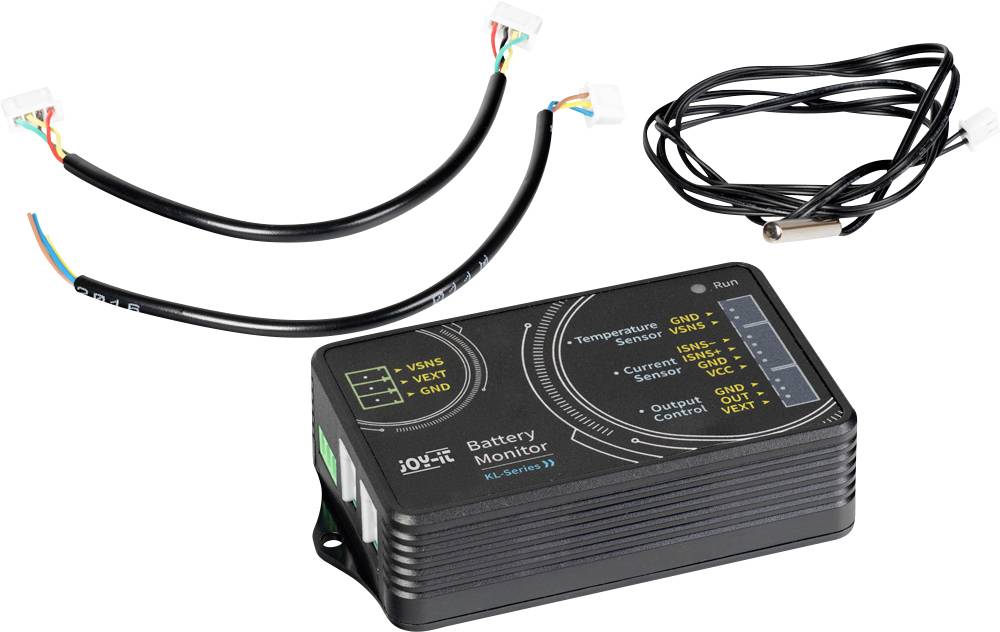

Joy-it Battery tester JT-KL110F

The KL110F is a high-precision battery monitoring solution for professionals who require reliable measurement and control of DC systems. With its ability to monitor voltage, current, performance, capacity and power in real time, it provides comprehensive insight into battery performance and operational status. Fitted with advanced coulomb counting technology the KL110F offers an exact tracking of the charging and discharging cycles. The automatic current direction detection provides for a smooth change between charging and discharging mode, while integrated protection devices protect against overvoltage, undervoltage, overcurrent, over-load and overheating. The wireless connection via BT allows convenient monitoring and configuration directly from a smartphone APP, while the optional RS-485 serial interface allows integration into surveillance systems and remote monitoring systems. Adjustable calibration functions guarantee precise results over a wide range of applications. The KL110F is available for active protection
A relay control output. This output can be configured to trigger when user-defined thresholds are exceeded. To actually disconnect loads or chargers, the customer must connect an external relay. With this flexible approach, the KL110F can be used with a variety of relay types and system voltages and can thus be adapted to different applications such as low-voltage shutdown, overcurrent shutdown or thermal protection. With support of up to 120 V and 100 A in combination with a low internal power consumption of only 0.4 W, the KL110F Ideal is suitable for use in renewable energy systems, mobile power supply solutions, electric vehicles and industrial battery systems. Compact, versatile and reliable, it makes professional energy management affordable.
