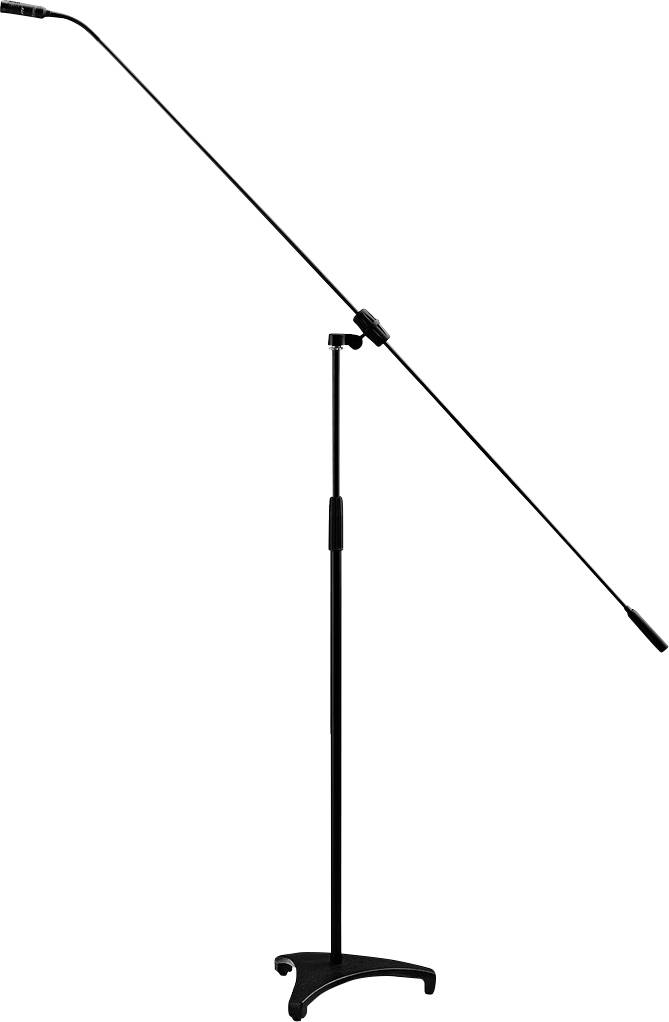

JTS FGM-170T Microphone stand
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 3.404 kg
- Dimensions: 1.46 m (mike)1.6 m (stand)
- Ass. Operating temperature 0-40 °C
- Weight: 3.4 kg
- Gross weight: 5 kg
- Max. Sound pressure 140 dB
- Connection: 3-pin XLR plug, balanced
- Characteristic: Kidney
- Sensitivity 15.8 mV/Pa
- Type: Microphone for floor stand
- Transmission type: Cable
- System: Capacitor
- Audio frequency range 20-20000 Hz
- Supply: DC 48 V, Phantom
- Nominal impedance 100 Ω
- Product type
Microphone stand
- Weight
3.404 kg
- Height
1.6 m
- Interfaces
XLR out
Documents & Downloads
Datasheet
Datasheet 3340539 JTS FGM-170T Microphone stand
User & Safety Instructions
User & Safety Instructions 3340539 JTS FGM-170T Microphone stand
Description
Floor stand microphone
With carbon-fiber gibbet
High-quality condenser microphone capsule with extremely thin, gold-coated 1.25 cm diaphragm (½"), cardioid characteristics and excellent sound features Low-cut switch (80 Hz) Switchable 10 dB damping Extremely light (105 g) and extremely stable carbon fiber booms (1.46 m) with miniature gooseneck Long stand base, for overhead microphone operation Body-isolated die-cast metal plate capsule unit and capsule can be replaced (plug system with screw locking) Including wind protection The delivery consists of 2 boxes
This text is machine translated.
With carbon-fiber gibbet
High-quality condenser microphone capsule with extremely thin, gold-coated 1.25 cm diaphragm (½"), cardioid characteristics and excellent sound features Low-cut switch (80 Hz) Switchable 10 dB damping Extremely light (105 g) and extremely stable carbon fiber booms (1.46 m) with miniature gooseneck Long stand base, for overhead microphone operation Body-isolated die-cast metal plate capsule unit and capsule can be replaced (plug system with screw locking) Including wind protection The delivery consists of 2 boxes
This text is machine translated.
Features
- Type: Microphone for floor stand
- Transmission type: Cable
- Characteristic: Kidney
- System: Capacitor
- Audio frequency range 20-20000 Hz
- Nominal impedance 100 Ω
- Sensitivity 15.8 mV/Pa
- Max. Sound pressure 140 dB
- Supply DC 48 V
- Phantom
- Ass. Operating temperature 0-40 °C
- Dimensions: 1.46 m (mike);1.6 m (stand)
- Weight: 3.4 kg
- Connection: 3-pin XLR-plug
- balanced
- Packaging dimensions (W x H x L) 0.29 x 0.18 x 1.53 m
- Gross weight: 5 kg
- Net weight: 3.404 kg
