Name: Jumo 43008164 Pressure transducer
Brand: Jumo
SKU: 2756757
Availability: BackOrder

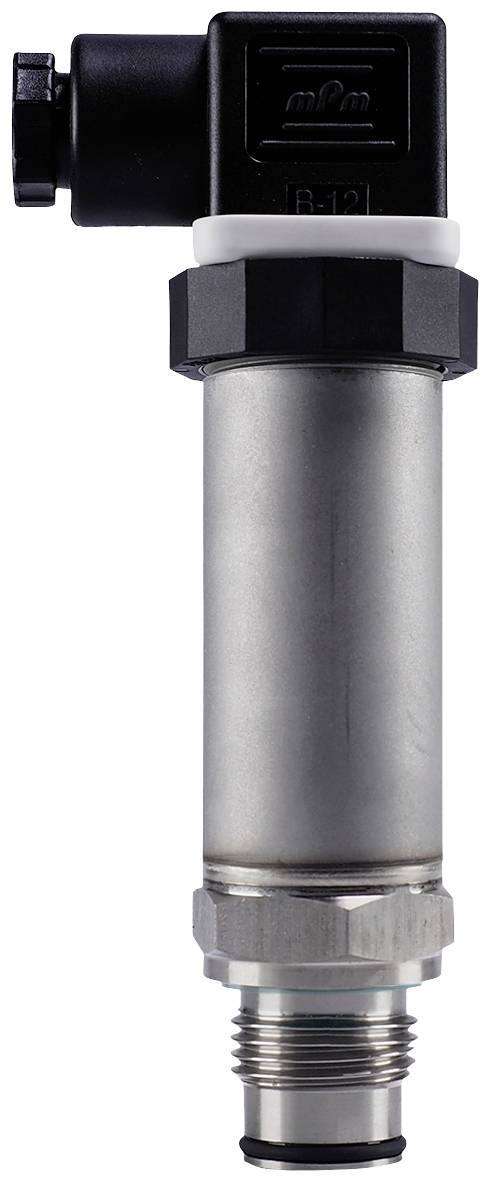

Pressure sensor with metal housing, suitable for industrial applications.

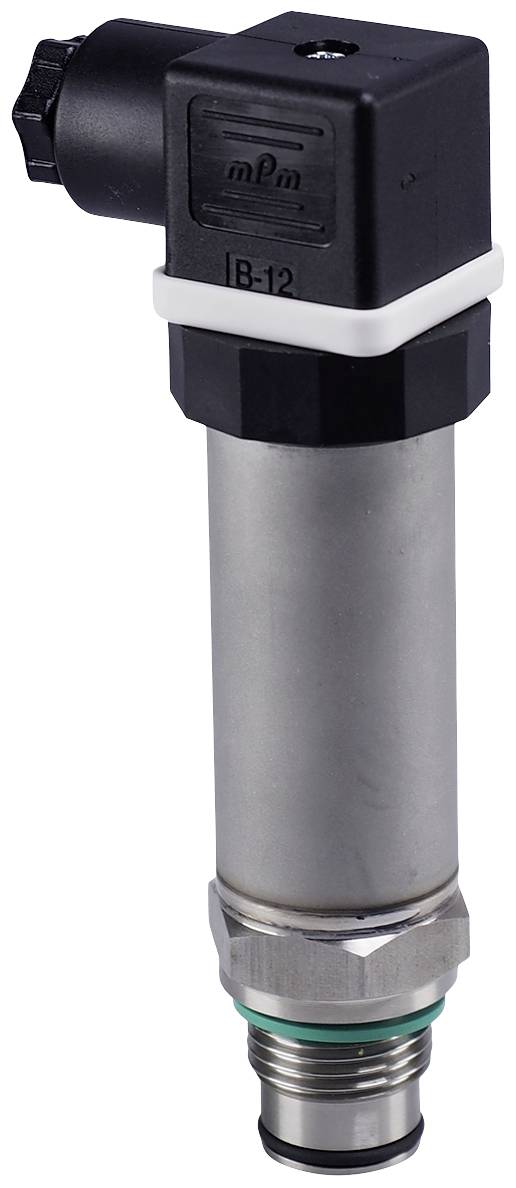

Pressure sensor with a cylindrical metal housing and black electrical connection on top, used for monitoring pressure systems.

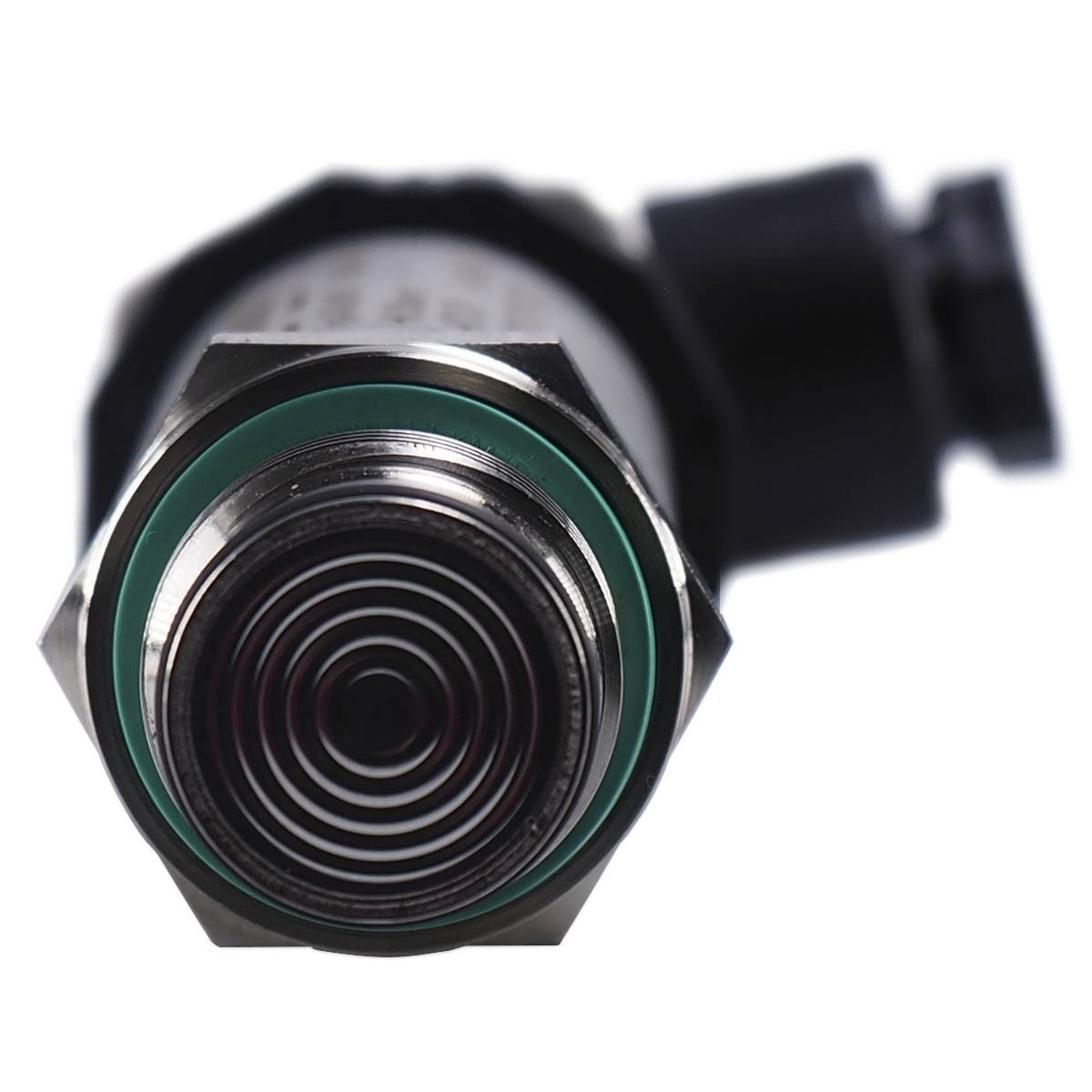

Close-up of a pressure sensor with a metallic casing and a spiral-shaped pattern at its tip.

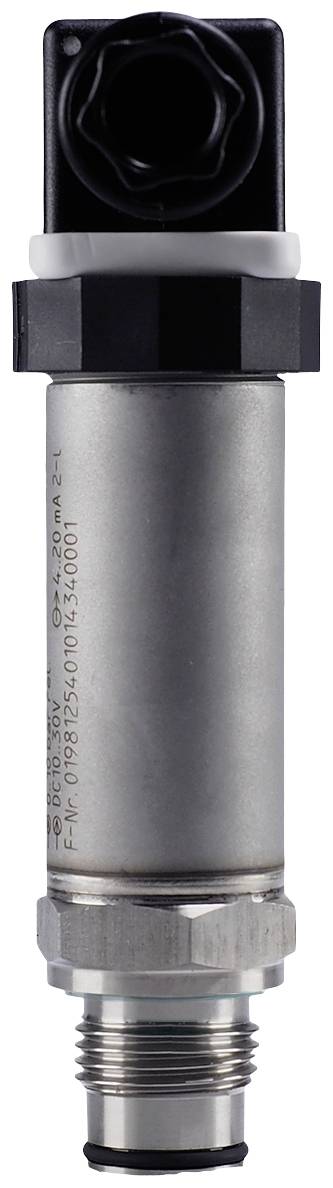

A cylindrical pressure sensor with a metallic housing and black plastic connector, suitable for industrial applications.

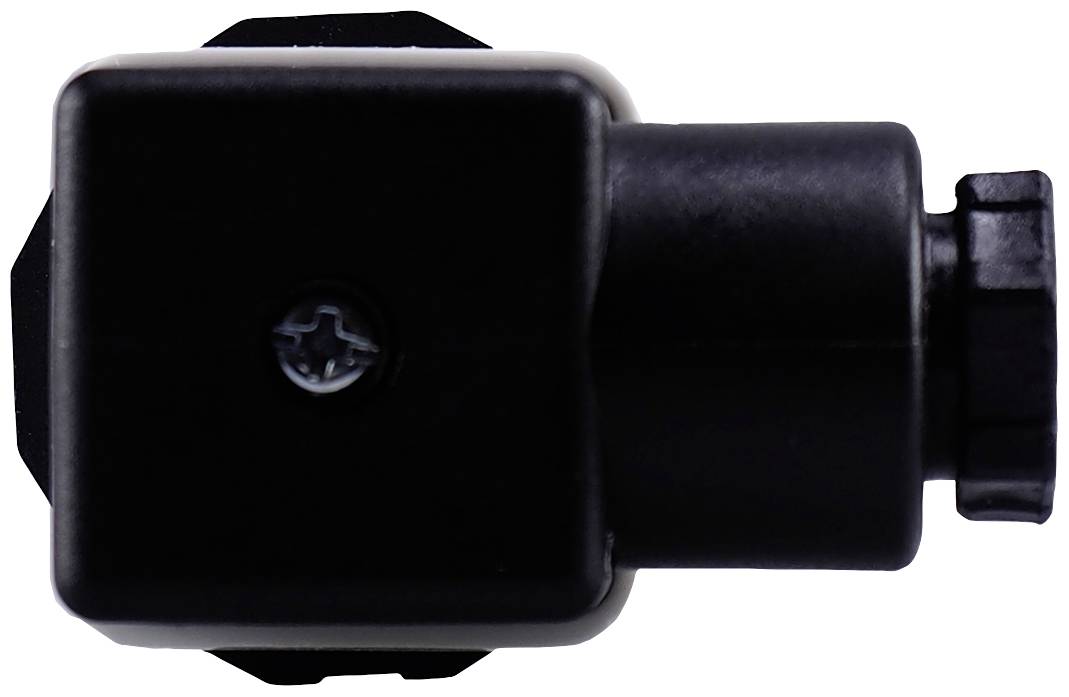

A black plastic connector with a visible screw in the centre. A ridged rotary knob is located at the right-hand end.

1/5

Product type

Pressure transducer

Media temperature (range)

-30 up to +120 °C

Type

43008164

Manufacturer part #

43008164

Max. media temperature

+120 °C

Datasheet (PDF)

Dispatches on Mon 2 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 665.00 / piece)

€ 665.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: Pressure transducer

Media temperature (range): -30 up to +120 °C

Type: 43008164

Manufacturer part #: 43008164

Max. media temperature: +120 °C

Media temperature (min.): -30 °C

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2756757 Jumo 43008164 Pressure transducer

User & Safety Instructions

User & Safety Instructions 2756757 Jumo 43008164 Pressure transducer

Description

The pressure transmitter can be used in liquid and gaseous media. The fully welded measuring system requires no seals and ensures the highest process reliability. The core piece is a piezoresistive measuring cell, which is safe, reliable and temperature resistant with a high overload resistance and long-term stability. Thanks to the high-quality choice of the parts in contact with the pressure medium (stainless steel 316 L / 316 Ti) and a wide temperature range of -30 to +120 °C, the pressure transmitter can be used in different industrial applications. The device is supplied with a contact box.

This text is machine translated.
