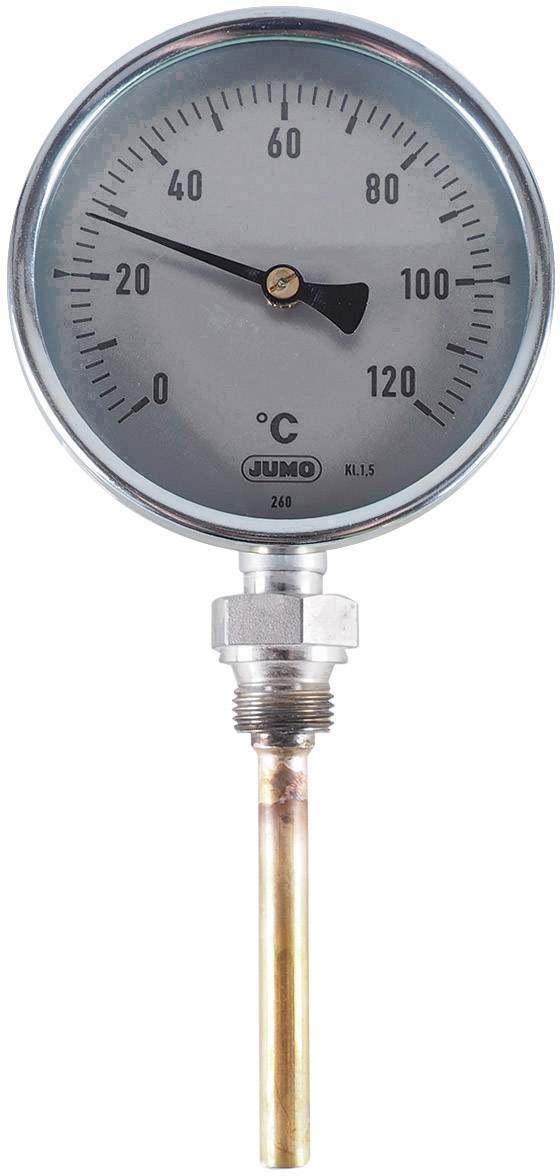

Image similar
Jumo 80000101 Bimetallic thermometer
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 219.99 / piece)
€ 219.99
incl. VAT
14-day return policy included
Highlights & Details
Dial thermometer
- Display ranges -50° C to +500° C.
- Galvanized steel housing
- Housing sizes Ø 63 mm, 80 mm and 100 mm
- Protection type IP 51
Technical specifications
- Display range 0..250°C
- Display range unit: Celsius
- Process connection: TA04; immersion tube with fixed hexagonal screw-in pins
- Diameter 10 mm
- Thread type PA: Screw connection G1/2
- WST.sensor/holding tube: CrNi 1.4571
- Serv. Process ans: CrNi 1.4571
- Installation length: 200mm.
- Product type
Bimetallic thermometer
- Operating temperature
0 °C (min)
- Min. operating temperature
0 °C
- Manufacturer part #
80000101
- Dim
(Ø) 63 mm
- (Ø)
63 mm
- Pipe Ø
10 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1928144 Jumo 80000101 Bimetallic thermometer
User & Safety Instructions
User & Safety Instructions 1928144 Jumo 80000101 Bimetallic thermometer
Description
The local standard thermometers work according to the principle of bimetal spiral.
The measuring principle is based on the fact that the bimetal spiral is exposed to the medium temperature in a stainless steel or brass immersion tube. It turns when the temperature rises or falls. The rotation acts directly on the pointer over an axis. The
The pointer deflection is therefore proportional to the temperature change.
This text is machine translated.
The measuring principle is based on the fact that the bimetal spiral is exposed to the medium temperature in a stainless steel or brass immersion tube. It turns when the temperature rises or falls. The rotation acts directly on the pointer over an axis. The
The pointer deflection is therefore proportional to the temperature change.
This text is machine translated.
