Name: Kaiser Nienhaus 110050 110050 Tubular motor 60 mm 50 Nm
Brand: Kaiser Nienhaus
SKU: 2114973

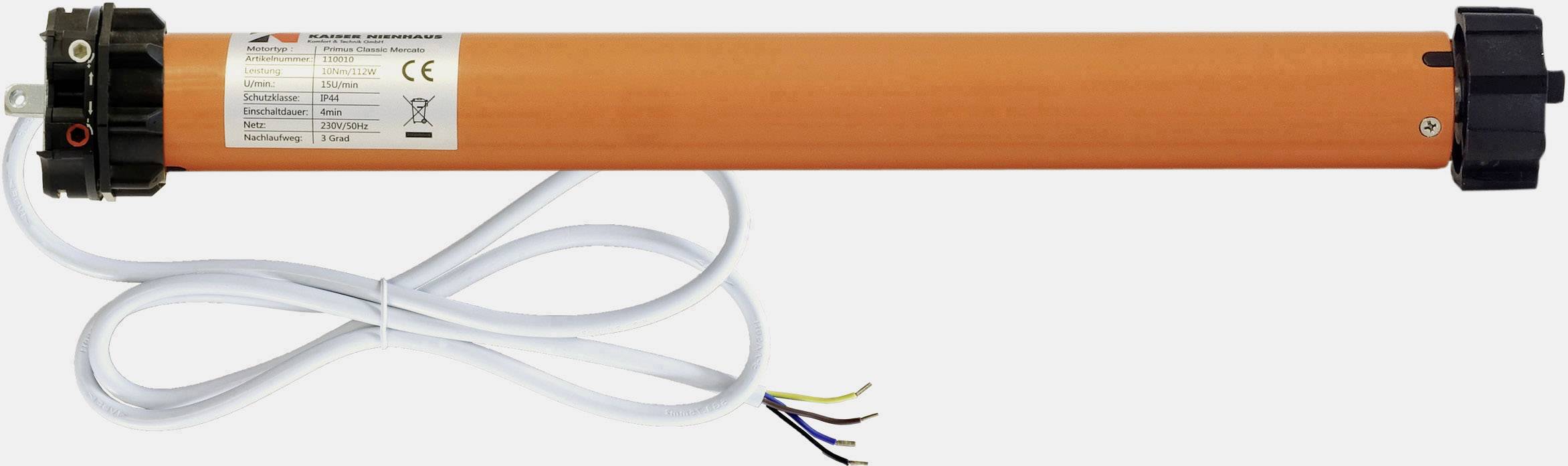

Orange tubular motor for roller shutters with a white cable, four cores. Technical specification label is visible.

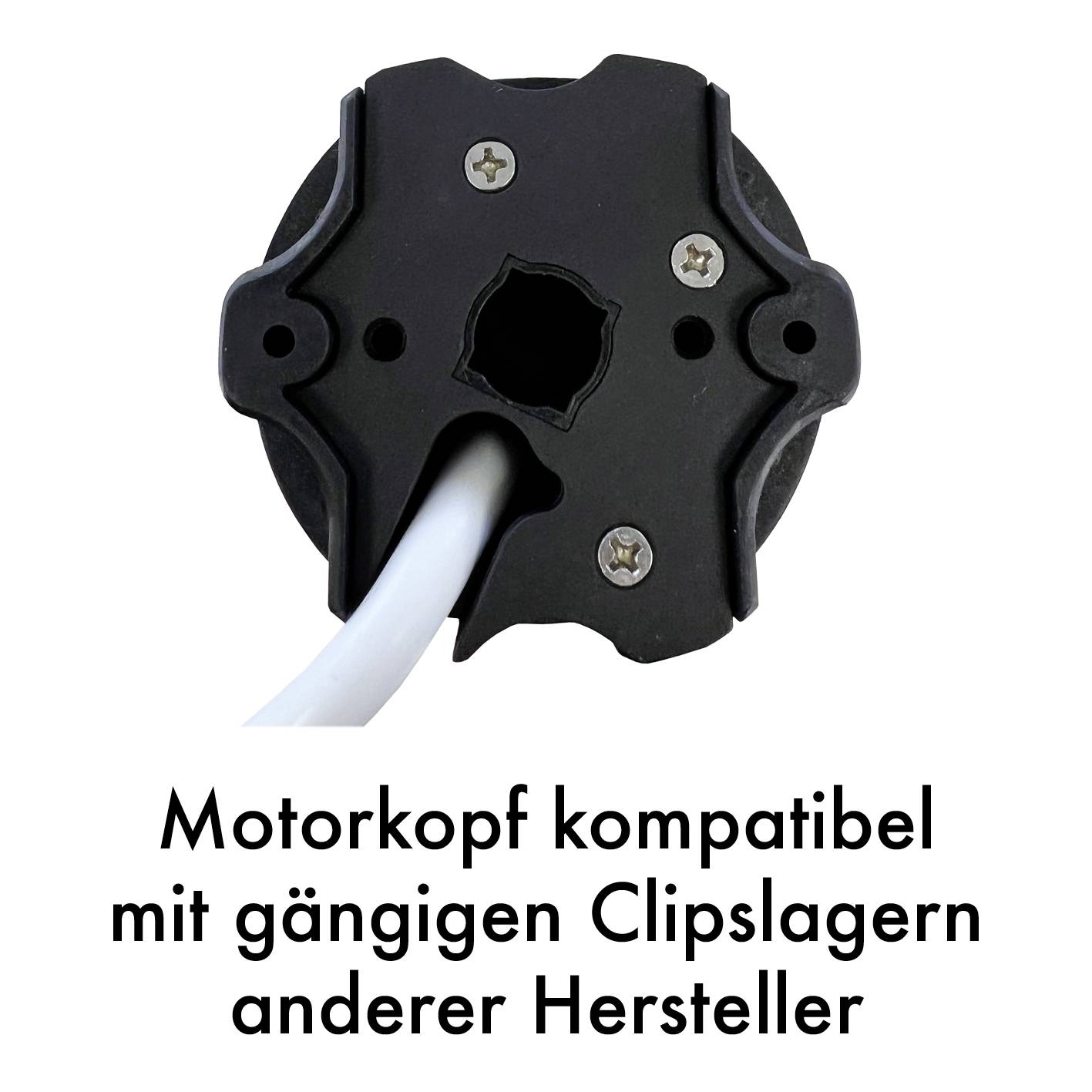

'Motor head compatible with common clip stores from other manufacturers'<br><br>Note: In British English, this would more naturally be phrased as:<br>'Motor head compatible with standard clip stores from other manufacturers'

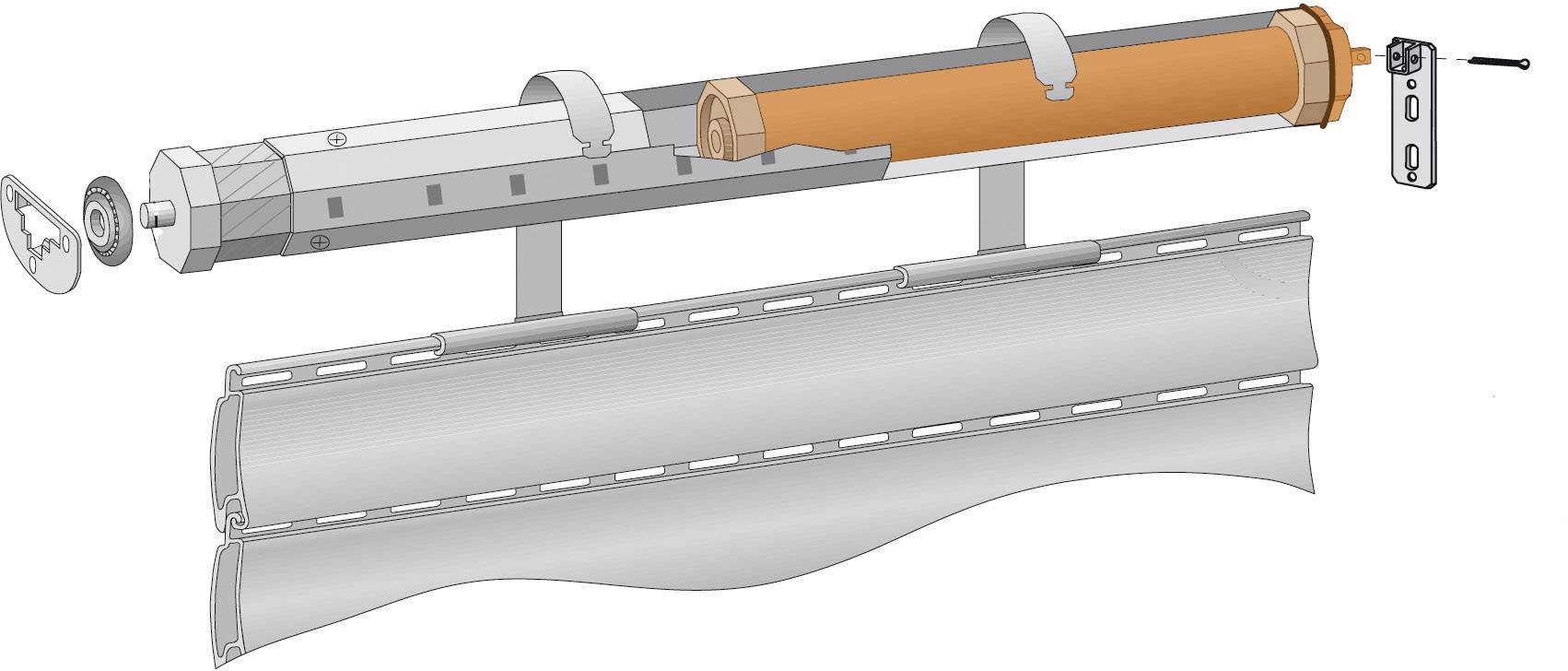

Schematic cross-section of a roller shutter motor, showing the various components and their assembly within the shaft.

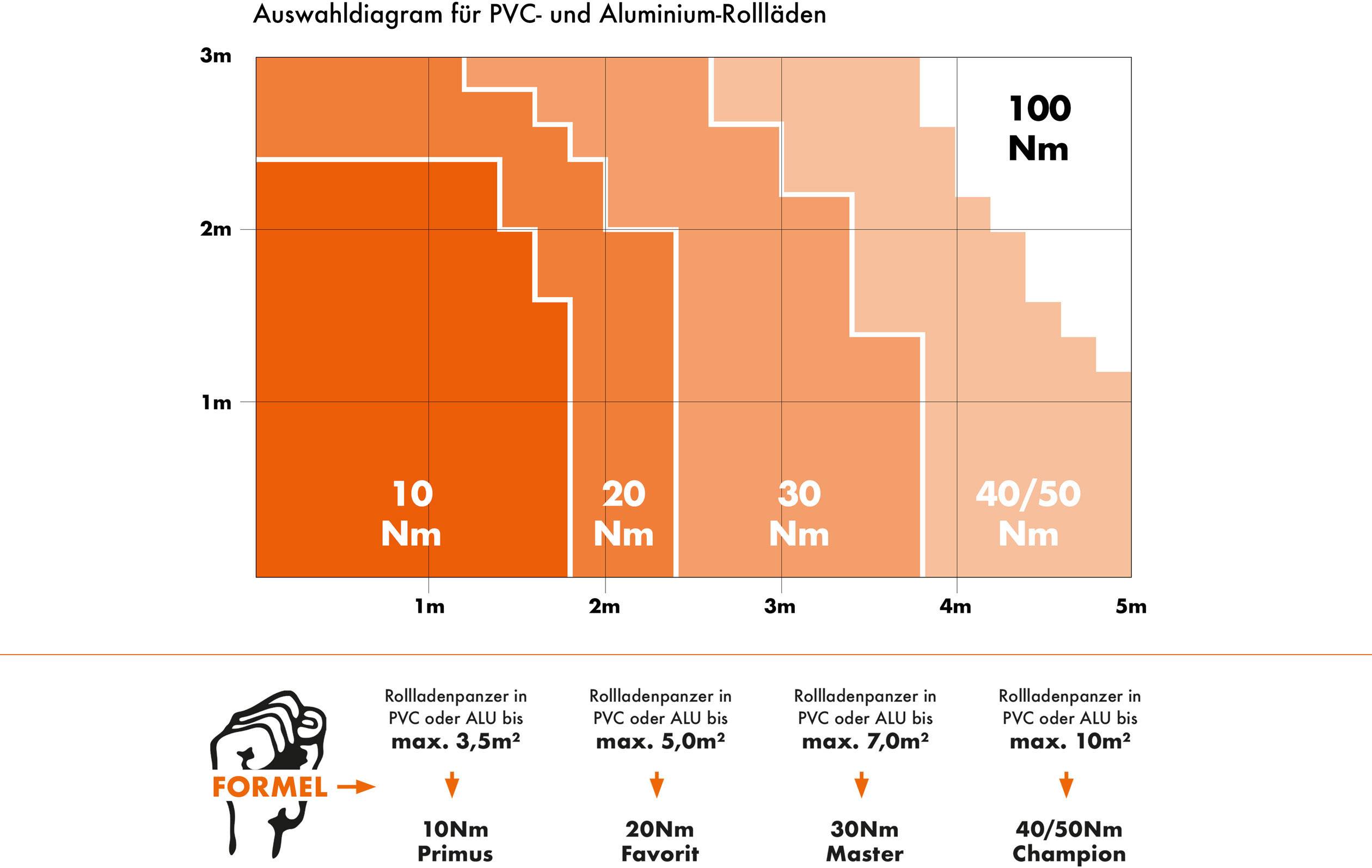

'Selection Diagram for PVC and Aluminium Roller Shutters' shows selection by roller shutter length with Nm requirements: 10, 20, 30 and 40/50 Nm.

1/4

Unavailable

12 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Tubular motor Kaiser Nienhaus 110050 110050 50 Nm

Motor head suitable for common clip bearings of other manufacturers (Somfy)Simple end point setting with threaded spindlesFor PVC/aluminum shutters up to 10 m²With SW60 adapter, motor bearing & adjustment tool

Technical specifications

Product type: Tubular motor

Suitable for shutter axle Ø: 60 mm

Rotational speed: 12 U/min

Length: 620 mm

Max. current consumption: 0.8 A

Limit switched: mechanical

Operating voltage: 230 V

Hub: Not required

Torque: 50 Nm

Lead length: 3 m

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2114973 Kaiser Nienhaus 110050 110050 Tubular motor 60 mm 50 Nm

Description

Classic Mercato motors are characterized by their very precise end point setting via threaded spindles on the motor head as well as by quiet and at the same time high-torque running properties. They are ideal for renovation. The adapter for the SW60 roller shutter shaft as well as the matching motor bearing are included in the delivery and thus the motor can usually be simply inserted into the existing roller shutter shaft and mounted.

This text is machine translated.
