Kaiser Nienhaus 140010 Mercato Primus Wireless tubular motor 433 MHz 60 mm 112 W 10 Nm
EAN:
Part number:
Item no:
Highlights & Details

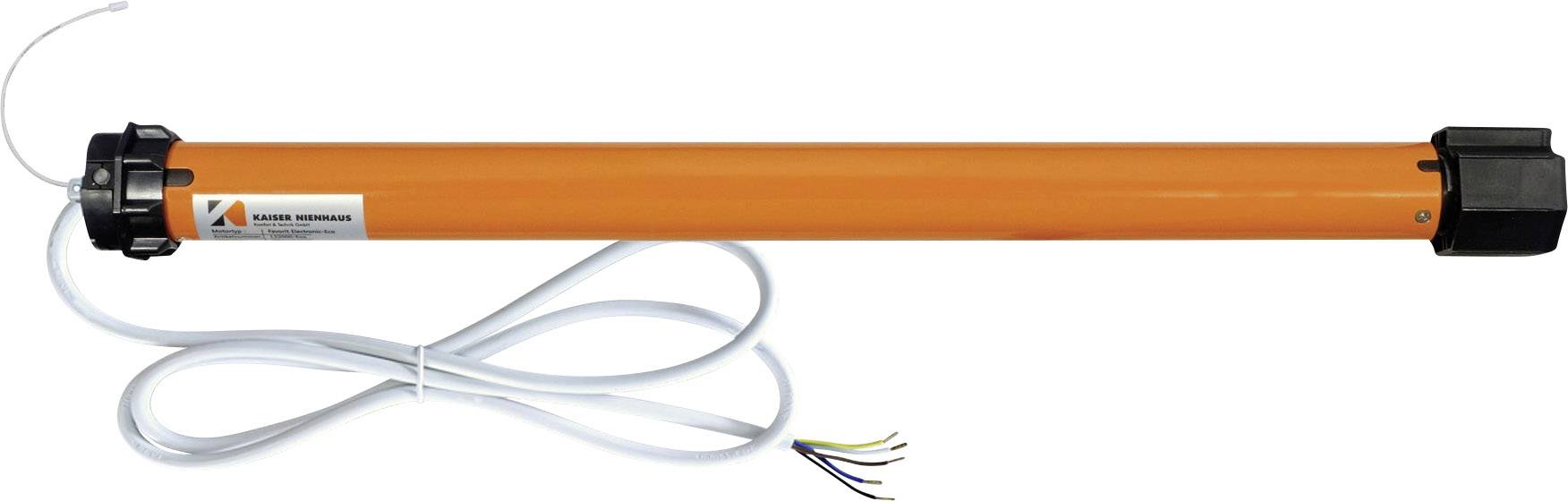

Wireless tubular motor Kaiser Nienhaus Mercato Primus 433 MHz 10 Nm

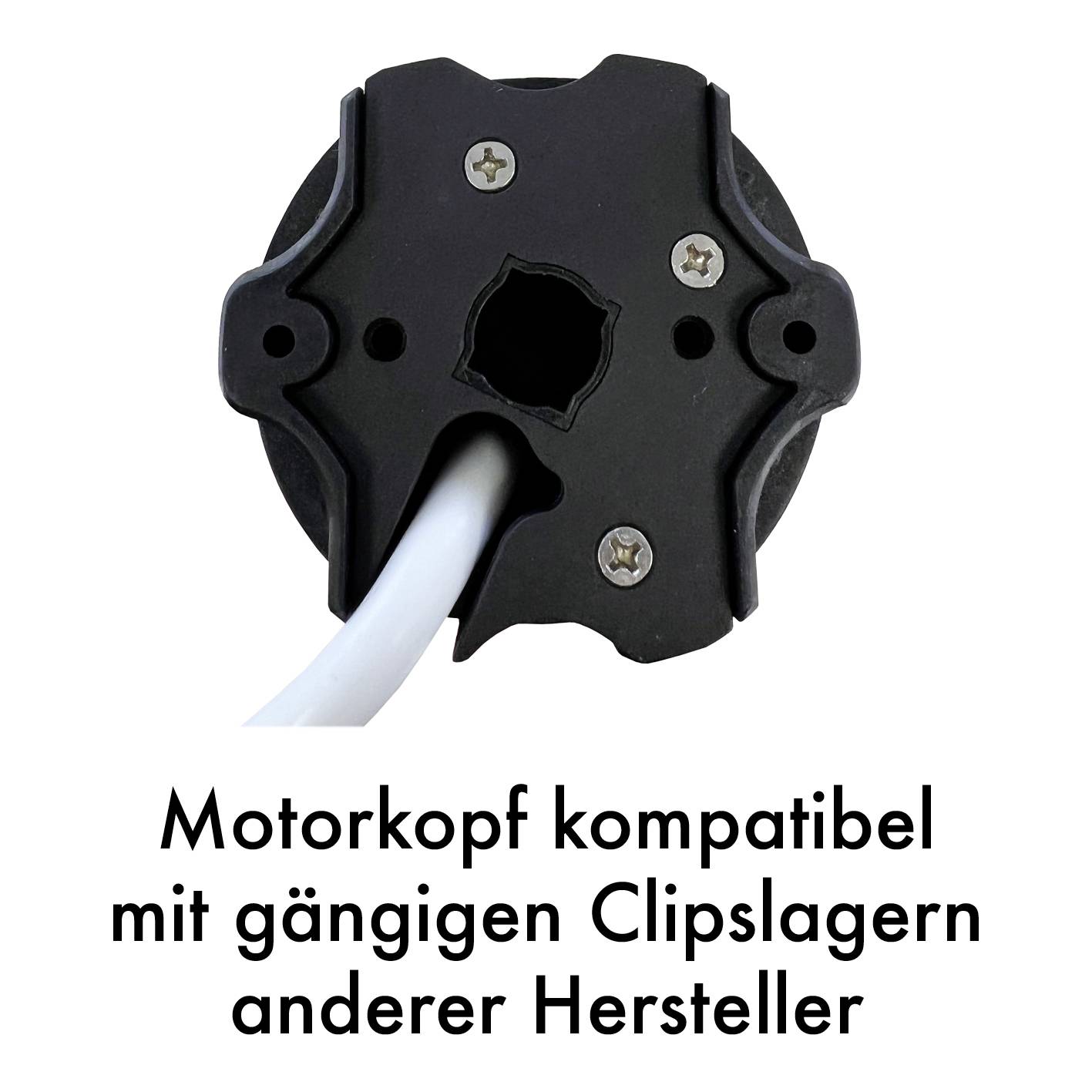

- Motor head suitable in common clip bearings of other manufacturers (Somfy)Ideal in combination with Mediola Smart Home controlSimply set using hand transmitterReversible button can be directly connected
Technical specifications
- Product type
Wireless tubular motor
- Series
Kaiser Nienhaus Mercato 434
- Torque
10 Nm
- Rotational speed
15 U/min
- Motor power
112 W
- Suitable for shutter axle Ø
60 mm
- Limit switched
electrical
- Operating voltage
230 V
- Lead length
2 m
- Width
660 mm
- Hub
Not required
- Data exchange
Bidirectional (bi)
n.rel.
- Frequency
434 MHz
- Frequency
433 MHz
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1487579 Kaiser Nienhaus 140010 Mercato Primus Wireless tubular motor 433 MHz 60 mm 112 W 10 Nm
Description
The Primus Funk Mercato tubular motor with its 10 Nm pulling force offers not only obstacle detection, freeze protection and very good running properties but also a safe bi-directional radio frequency. Thanks to this, the motor is particularly comfortable in conjunction with the Mediola SmartHome control, since it can respond to status queries of the app control and respond. So you are always informed about the actual status of your shutters. In addition, the integrated, activatable repeater ensures that radio commands from individual motors are repeated in the house, in order to guarantee a more reliable transmission.
This text is machine translated.
This text is machine translated.
Features
- Pluggable connection cable with 2 m length
- Integrated radio receiver and repeater
- Thermal cut-off
- Particularly quiet running.
Scope of delivery
- Primus Mercato 10 Nm wireless tubular motor
- Motor
- Adapter/catch SW60
- User manual.
