Kaiser Nienhaus 140030 Mercato Master Wireless tubular motor 433 MHz 60 mm 200 W 30 Nm
EAN:
Part number:
Item no:
Highlights & Details

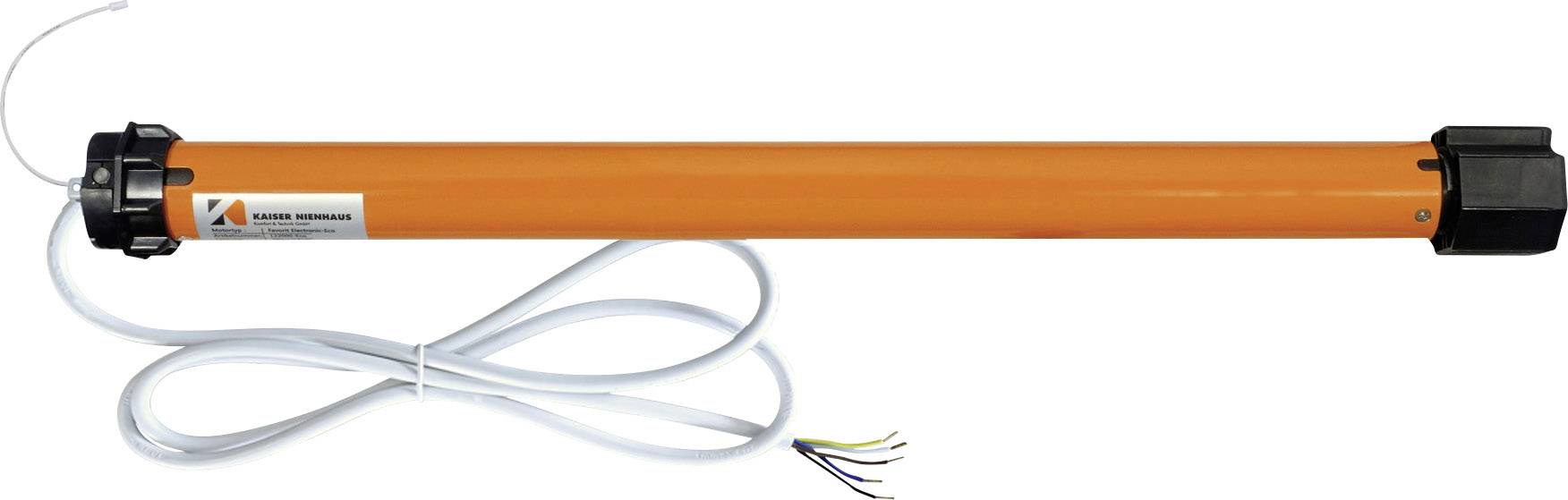

Wireless tubular motor Kaiser Nienhaus Mercato Master 433 MHz 30 Nm
- Motor head suitable in common clip bearings of other manufacturers (Somfy)Ideal in combination with Mediola Smart Home controlSimply set using hand transmitterReversible button can be directly connected
Technical specifications
- Product type
Wireless tubular motor
- Series
Kaiser Nienhaus Mercato 434
- Torque
30 Nm
- Rotational speed
15 U/min
- Motor power
200 W
- Suitable for shutter axle Ø
60 mm
- Limit switched
electrical
- Operating voltage
230 V
- Lead length
2 m
- Width
660 mm
- Hub
Not required
- Data exchange
Bidirectional (bi)
n.rel.
- Frequency
434 MHz
- Frequency
433 MHz
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1487581 Kaiser Nienhaus 140030 Mercato Master Wireless tubular motor 433 MHz 60 mm 200 W 30 Nm
Description
The tubular motor master radio MERCATO with its 30 Nm traction offers next to the obstacle detection, the antifreeze protection and the very good operating characteristics and a secure bi-directional radio frequency. Thanks to this, the motor, together with the Mediola Smart Home control is especially comfortable, since it on status of the app-enabled react and answers. So you are always on the actual status of your shutters in the picture. In addition, the integrated, which can be activated repeater that radio commands of individual motors in the house be repeated, in order to provide a more reliable transmission.
This text is machine translated.
This text is machine translated.
Features
- Pluggable connection cable with 2 m length
- Integrated radio receiver and repeater
- Thermal cut-off
- Particularly quiet running.
Scope of delivery
- Master wireless tubular motor Mercato 30 Nm
- Motor
- Adapter/catches SW60
- User manual.
