Name: Kaiser Nienhaus Primus Electronic Mini Mercato 130012 Tubular motor 40 mm 10 Nm
Brand: Kaiser Nienhaus
SKU: 1663603

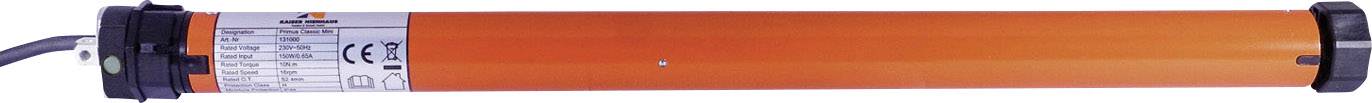

An orange electric roller shutter motor by 'Somfy', cylindrical in shape, with connection cable on the left side.

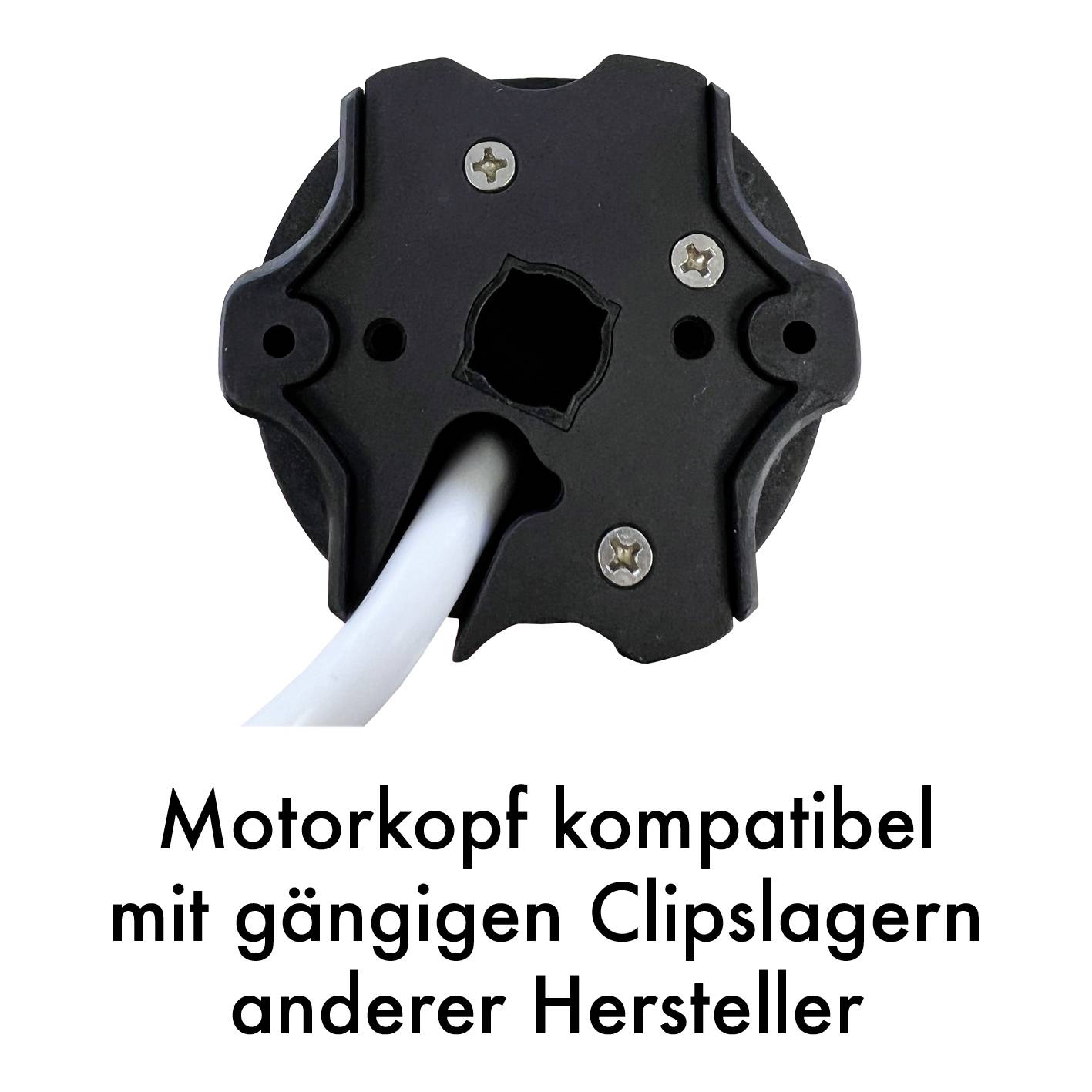

The motor is compatible with universally usable clip bearings from other manufacturers; the illustration shows the motor with cable connection.

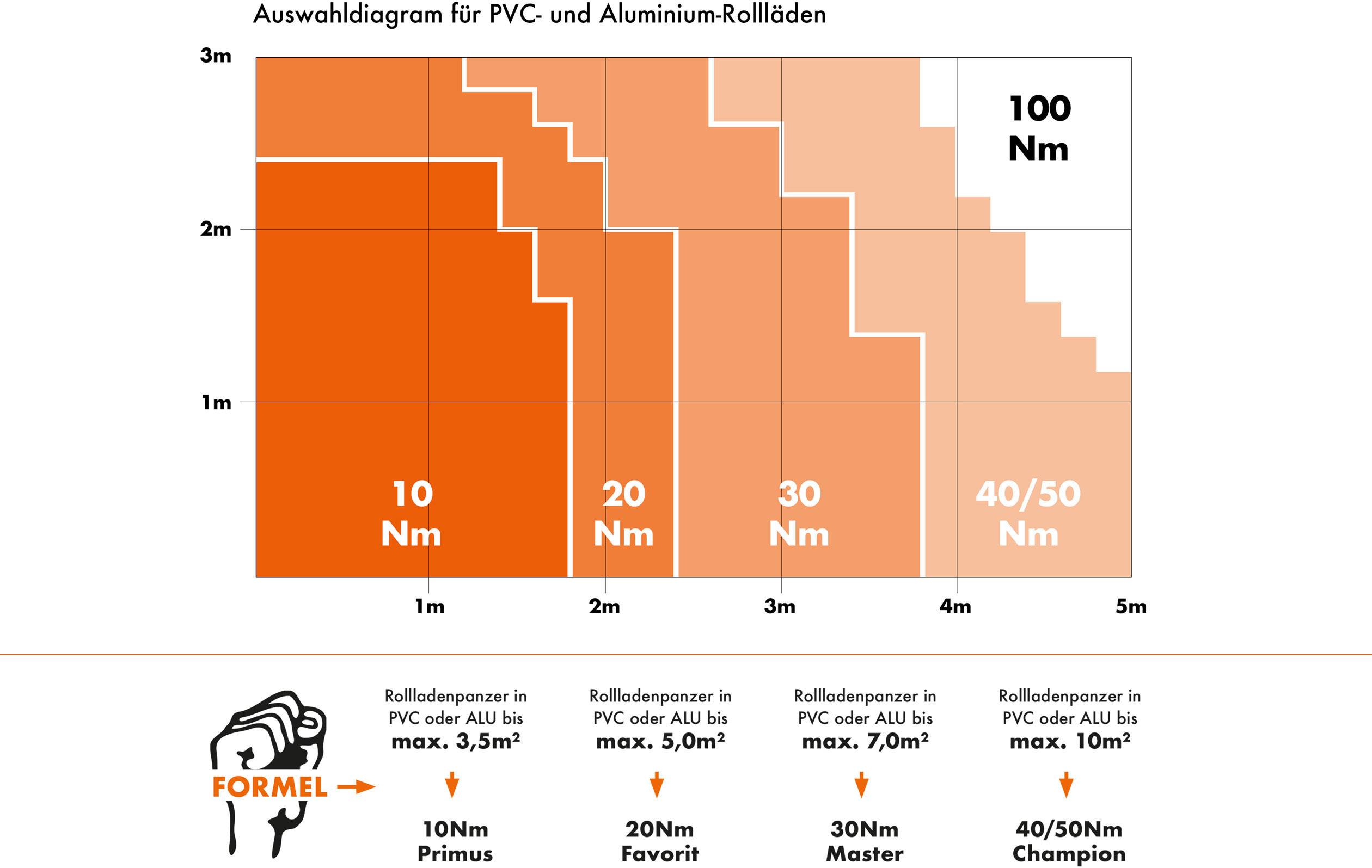

'Selection Diagram for PVC and Aluminium Roller Shutters' shows different Nm levels (10, 20, 30, 40/50) depending on the roller shutter size.

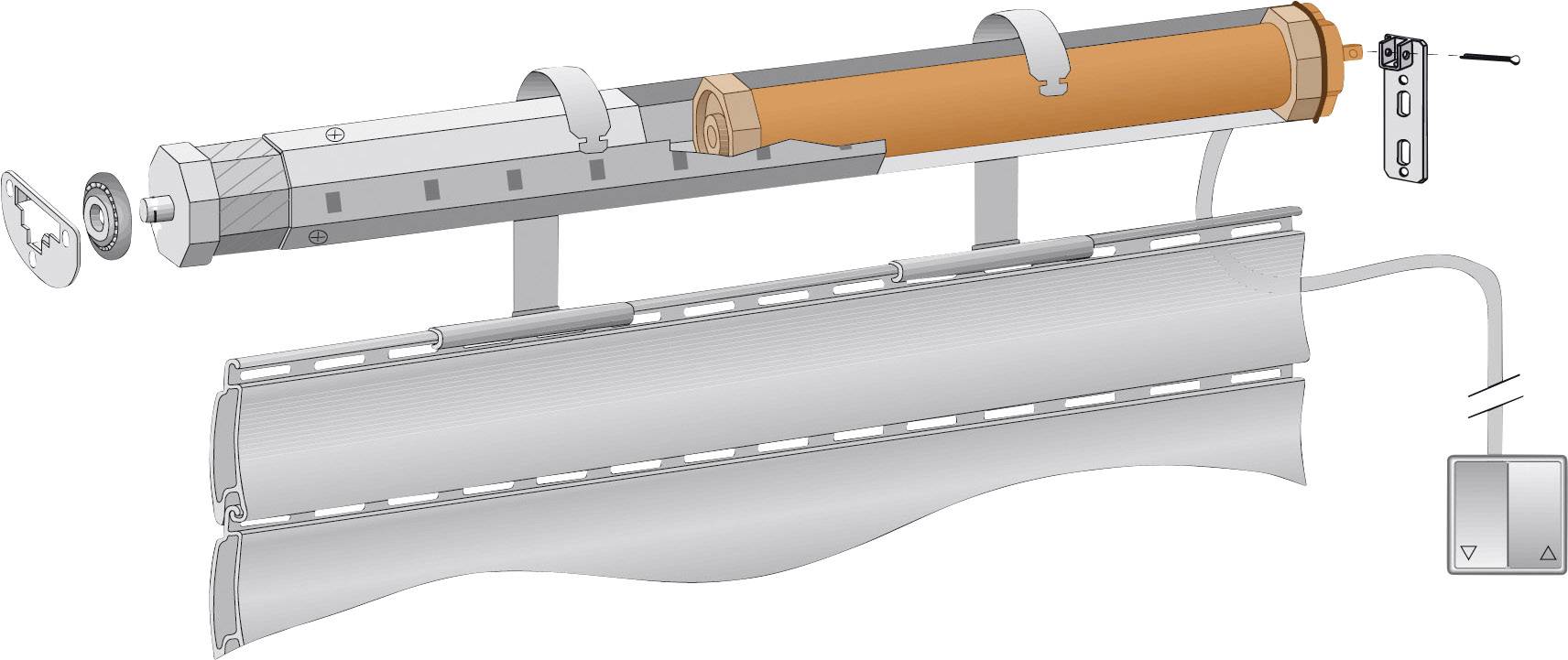

Illustration of a roller shutter motor. Shows the motor's construction and its position within the roller shutter housing. Cables and control mechanism are visible.

1/4

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Tubular motor Kaiser Nienhaus Primus Electronic Mini Mercato 130012

Motor head suitable for common clip bearings of other manufacturers (Somfy)Electronic and automatic end point adjustmentObstacle detection with reverse functionFor shutter shaft SW40

Technical specifications

Product type: Tubular motor

Suitable for shutter axle Ø: 40 mm

Motor power: 10 Nm

Rotational speed: 17 U/min

Limit switched: electrical

Obstacle detection: Yes

Operating voltage: 230 V AC

Width: 600 mm

Hub: Not required

Lead length: 2 m

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1663603 Kaiser Nienhaus Primus Electronic Mini Mercato 130012 Tubular motor 40 mm 10 Nm

Description

Series Engines Electronic Mini Mercato, for use in 40 octagon steel shaft, you can very easily via justierschalter or automatically. In addition to very quiet running properties, the motors via an obstacle detection and a antifreeze protection, each with reverse function.
