Kalthoff 725300 725300 Portable electricity meter Analogue MID-approved: Yes 1 pc(s)
EAN:
Part number:
Item no:
Product type
Portable electricity meter
Display
Analogue
Operating voltage
400V, 50Hz
MID-approved
Yes
Reading type
Reactive power
cos phi
Energy consumption
Frequency
Power
Apparent power
AC voltage
DC voltage
Amperage
Datasheet (PDF)
Highlights & Details

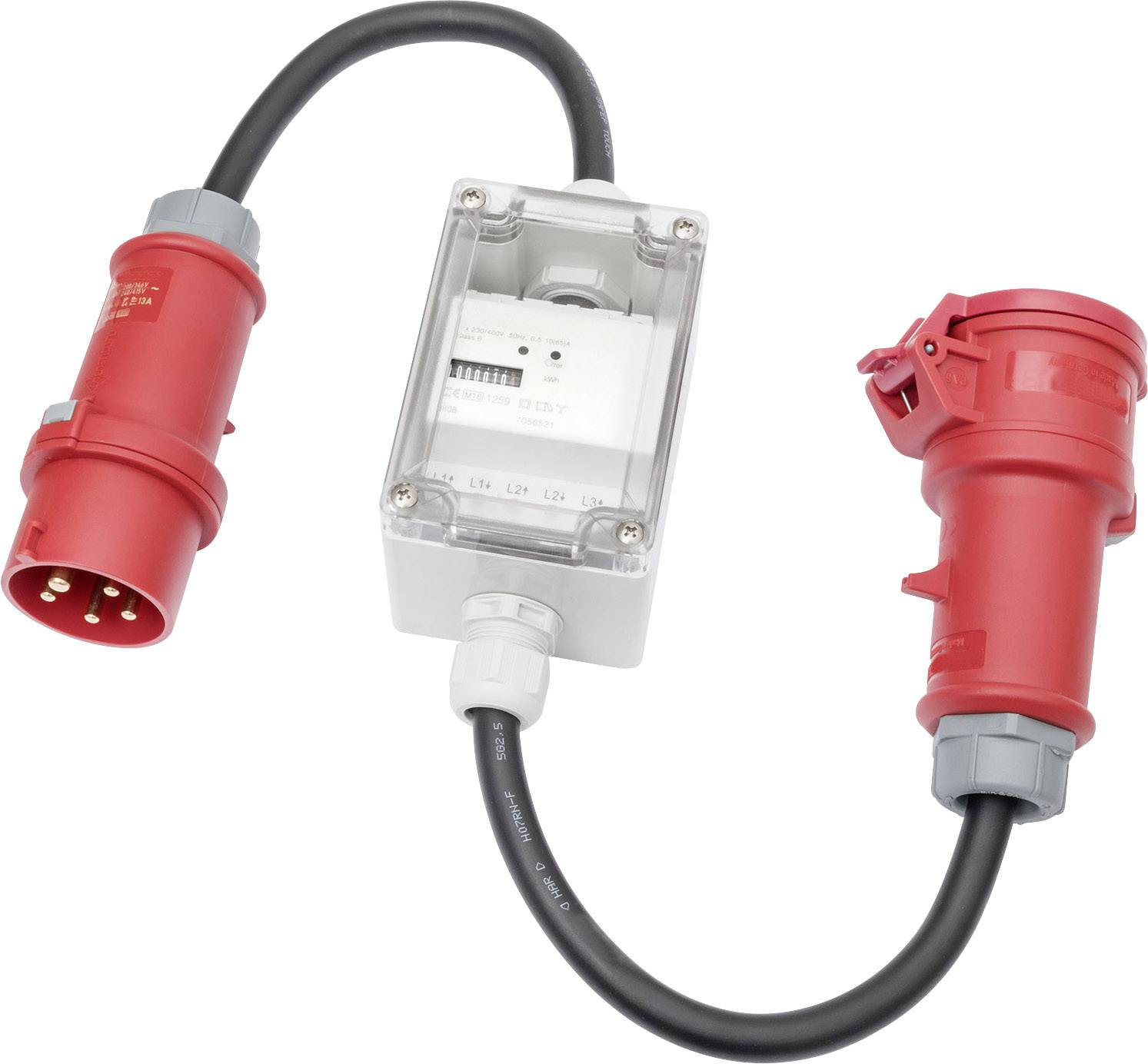

Bauer 725300 mobile electricity meter
- Polycarbonate housing
- Cable H07RN-F5G4
- Analogue Display:
- IP44 or IP67
- Total length of about 2.30m.
- Rated current 32 A
- This text is machine translated.
Technical specifications
- Product type
Portable electricity meter
- Display
Analogue
- Operating voltage
400V, 50Hz
- MID-approved
Yes
- Reading type
Reactive power
cos phi
Energy consumption
Frequency
Power
Apparent power
AC voltage
DC voltage
Amperage
- Current (max.)
85 A
- Current (min.)
0.25 A
- Current range
0.25 up to 85 A
- Type
725300
Documents & Downloads
Datasheet
Datasheet 2102567 Kalthoff 725300 725300 Portable electricity meter Analogue MID-approved: Yes 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2102567 Kalthoff 725300 725300 Portable electricity meter Analogue MID-approved: Yes 1 pc(s)
Description
Features
- IP44
