1/2

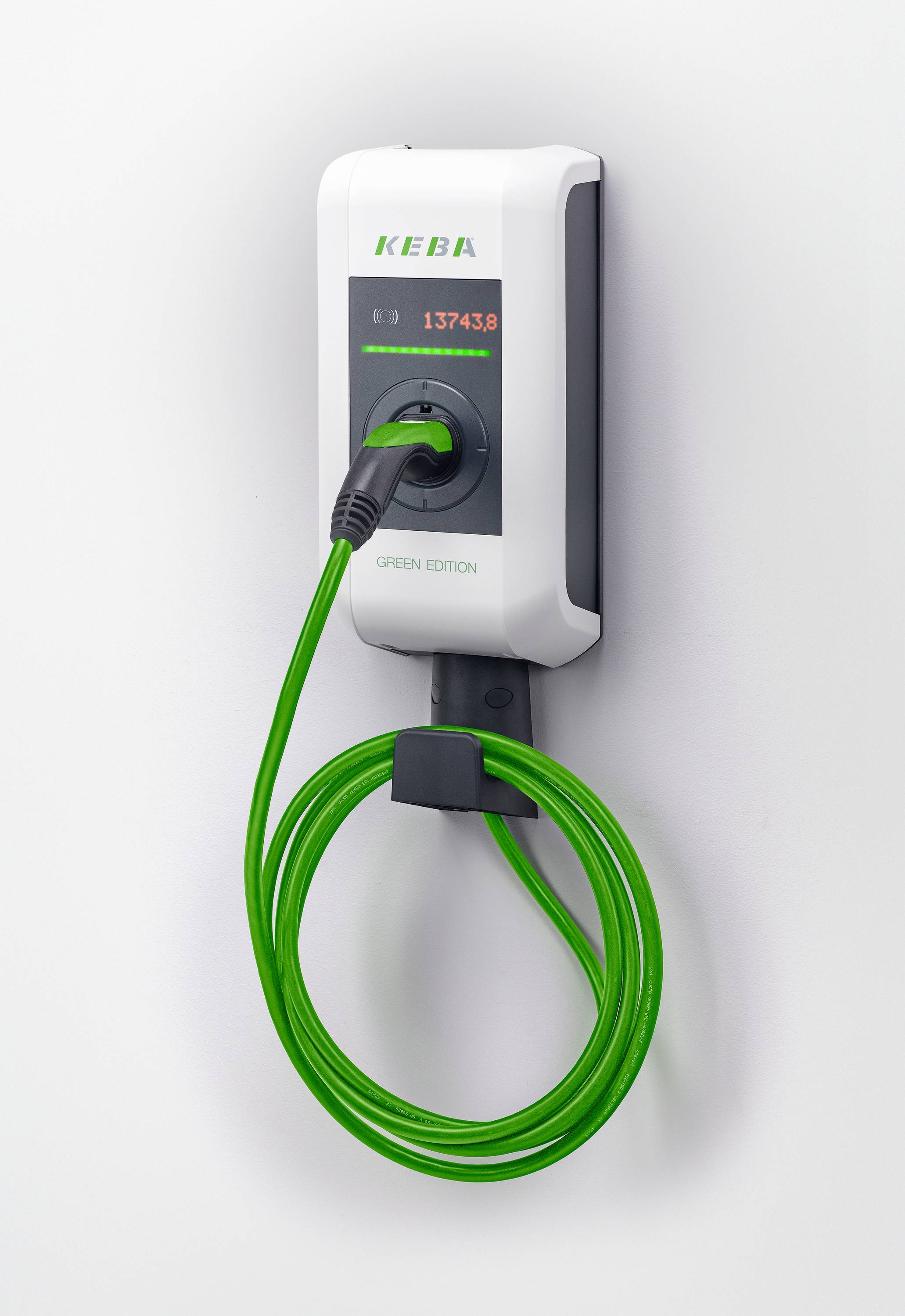

KEBA KC-P30-EC240422E0RGE Wallbox No. of ports 1 22 kW
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Housing material: Plastic
- With display: Yes
- Compatible with Apple HomeKit: No.
- Compatible with Amazon Alexa: No.
- Compatible with Google Assistant: No.
- IFTTT support available: No.
- Rated connection power 22 kW
- Number of loading points: 1
- Max. Power per charging point 22 kW
- Length of charging cable 6 m
- With house connection box (HAK): No.
- DC fault current detection: Yes
- With circuit breaker: No.
- With energy meter: Yes
- Number of charging couplings type 2: 1
- Product type
Wallbox
- No. of ports
1
- Charging capacity
22 kW
- No. of phases
3-phase
- Cable length
6 m
IP54
IK09
- Width
240 mm
- Height
615 mm
- Depth
140 mm
Documents & Downloads
Datasheet
Datasheet 3836355 KEBA KC-P30-EC240422E0RGE Wallbox No. of ports 1 22 kW
User & Safety Instructions
User & Safety Instructions 3836355 KEBA KC-P30-EC240422E0RGE Wallbox No. of ports 1 22 kW
Description
Wallbox for intelligently controlled charging, allows both single-phase and three-phase charging, mounting: On the wall or on the stand, rated supply voltage: 3 x 230V / 400V, rated current (configurable): 10 A / 13A / 16A / 20A / 25A / 32A (1-phase or 3-phase), type 2 cable according to EN 62196-1 and VDE-AR-E 2623-2-2 up to 32 A / 400 V AC, network forms: TT / TN / IT, communication protocol: UDP / Modbus TCP, use: indoor and outdoor, interfaces: Ethernet interface, Ethernet1: LSA+® terminals, data transfer rate: 10/100 Mbit/s, Ethernet2: RJ45 (for debug), USB interface, Type: A, USB 2.0 (hi-speed), Max. Output current: 500 mA, equipment: RFID-card type: MIFARE card / day according to ISO 14443 or ISO 15693
