KEENON DINERBOT T9 Dining Service White App-controlled, Voice-controlled, Incl. charger
Part number:
Item no:
Highlights & Details
KEENON DINERBOT T9 Powerful delivery robot for gastronomy, hotel and service areas
- Autonomous delivery and service robots for catering, hotels, canteens, event areas and service-intensive interiors
- Four removable trays with a total load capacity of 40 kg, up to 10 kg per level and flexible use for different transport goods
- Alternative 3-tablet configuration and open front and rear access for easy loading and unloading
- Multi-Point delivery with up to 20 delivery points per journey and multi-robot collaboration with up to 20 robots
- LiDAR, 3D stereo Vision, image module, collision sensor and IMU for precise navigation and obstacle detection
- Adjustable driving speed of 0.1 to 0.8 m/s and 70 cm minimum passage width for structured service paths
- 11.6-inch HD touchscreen with 1080p resolution, light/touch interaction, expressive indicators, and voice alerts
- Automatic charging via charging station, manual charging by battery charger and 13 to 18 hours battery runtime
- Robust, shock-absorbing chassis for quiet and stable delivery trips in daily operation
Technical specifications
- Lidar, stereo Vision sensor, image module, collision sensor, IMU
- LiDAR: 216°, up to 20 m; 3D stereo Vision: 140°, 0.1-1.5 m; picture module: 120°, required ceiling height 2-8 m.
- Network Wi-Fi 2412-2472 MHz
- Touch-screen: 11.6", 1080p
- Product type
Dining Service
- Operating time (max.)
18 h
- Dim
(L x W x H) 527 x 500 x 1266 mm
- Battery capacity
12 Ah
- Weight
63 kg
- Factory colour
White
- Charging time
4 h
50 W
- Width
500 mm
- Height
1266 mm
- Length
527 mm
- Features
App-controlled
Voice-controlled
Incl. charger
Documents & Downloads
Information
Test Summary Report 3795411 KEENON DINERBOT T9 Dining Service White App-controlled, Voice-controlled, Incl. charger
Security datasheet
Security datasheet 3795411 KEENON DINERBOT T9 Dining Service White App-controlled, Voice-controlled, Incl. charger
Description

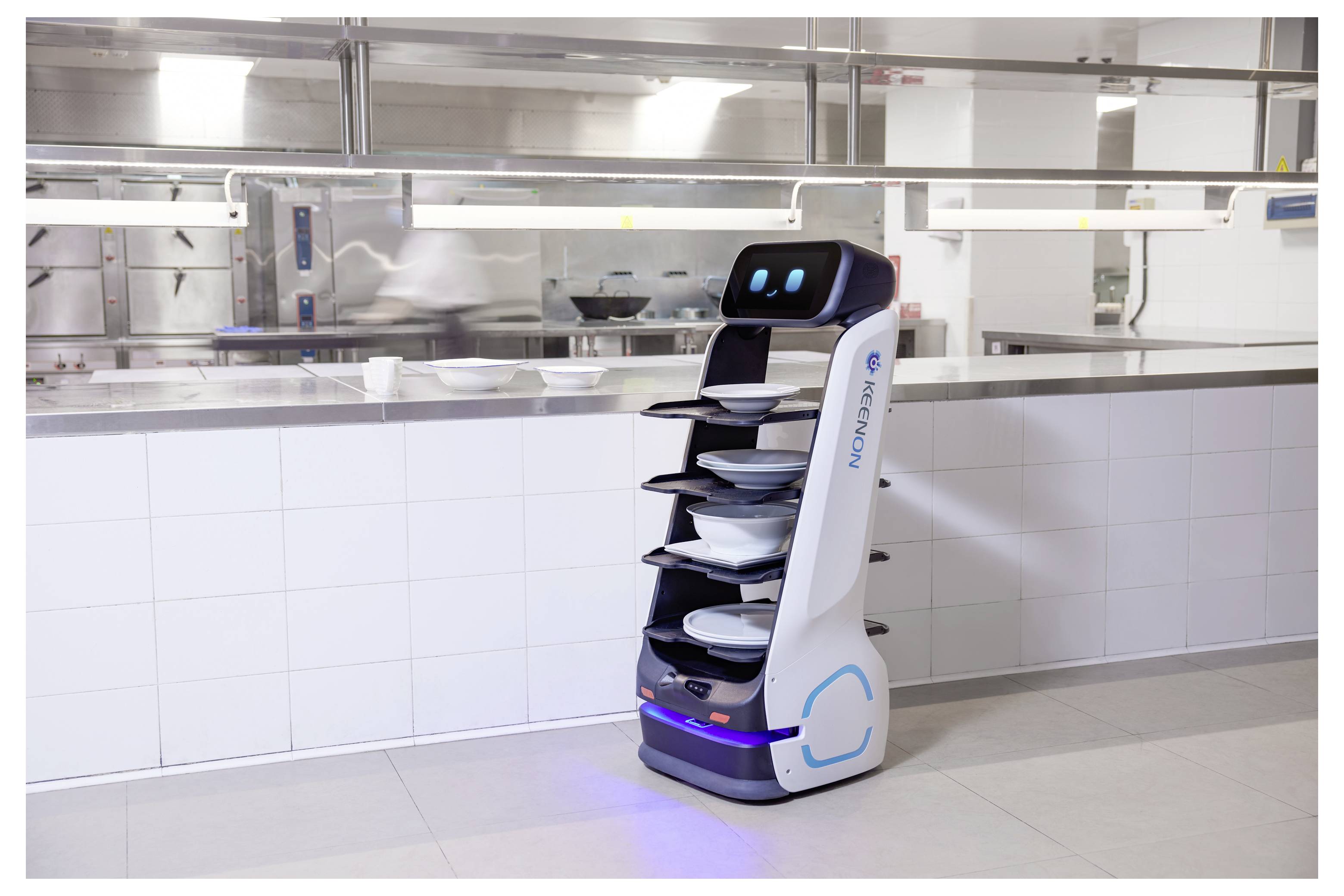

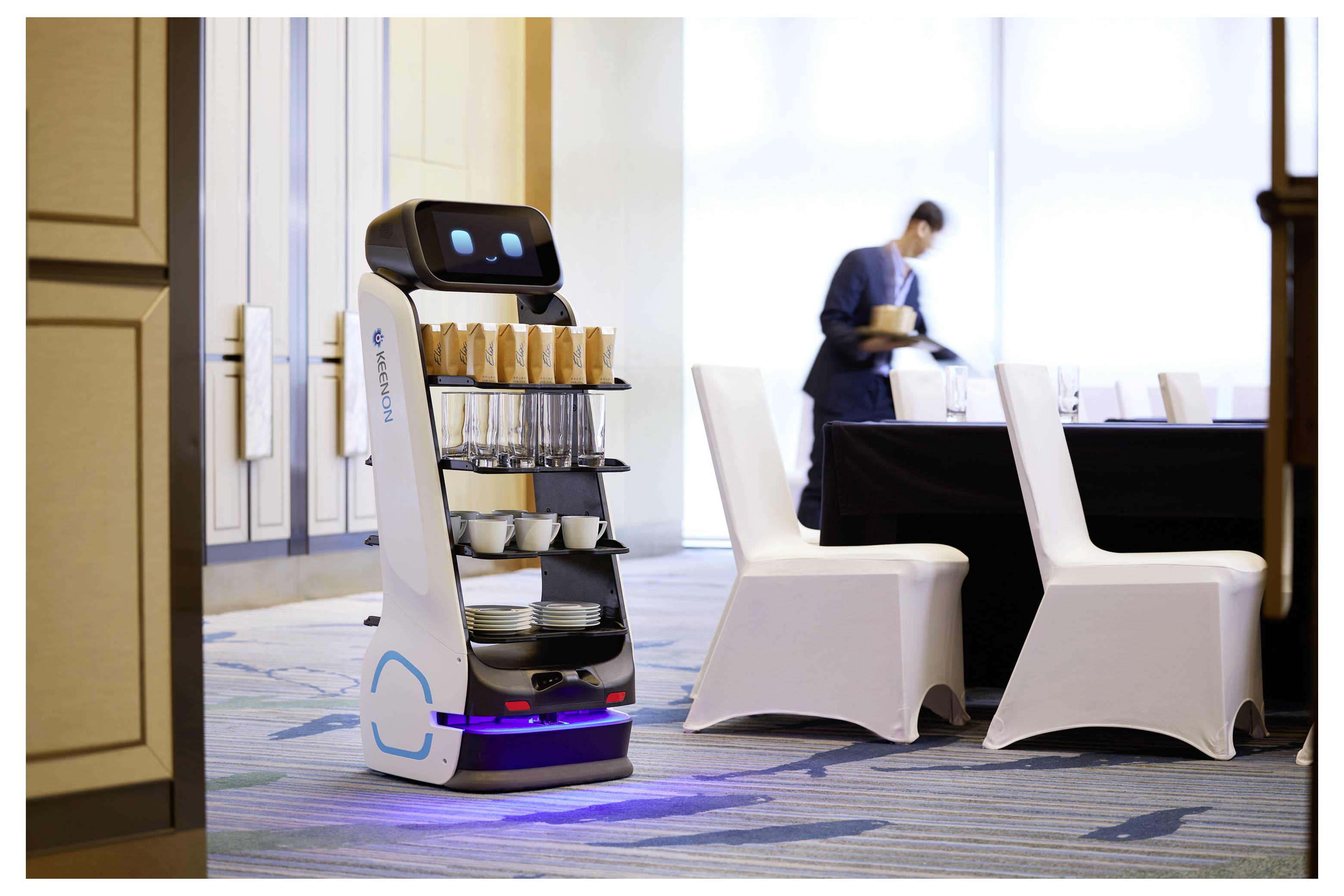

The KEENON DINERBOT T9 is an autonomous delivery and service robot for professional service environments. It is designed to reliably and efficiently transport food, drinks, dishes or other items inside the room. With four removable trays, a total load capacity of up to 40 kg and intelligent navigation the T9 is especially suitable for restaurants, hotels, cafeterias, cafeterias, events and service-intensive areas of operation.
LiDAR, 3D-stereo-Vision, picture module, collision sensor and IMU support a precise movement on defined paths as well as a reliable obstacle detection. The adjustable driving speed from 0.1 to 0.8 m/s, a minimum transmission width of 70 cm and the braking distance of 80 cm at maximum speed and full load on dry road surfaces enable a usage adapted to the daily working life.
T9 supports multi-Point delivery with up to 20 delivery points per trip and multi-robot collaboration with up to 20 robots in the same environment. This makes it suitable for serving food and drinks, return dishes, buffet and conference service, delivery processes close to the room, as well as internal transport tasks in restaurants, hotels and commercial facilities.
The four tablets are removable and can be used flexibly for different types of transport goods. Alternatively, a 3-tablet configuration is provided. The open access from front and rear facilitates the loading and unloading. The 11.6-inch HD touchscreen with 1080p resolution, light/touch interaction, expression indicators, and voice alerts support intuitive operation in day-to-day service operations.
Automatic charging via the charging station as well as manual charging by charging enables a flexible power supply. With 13 to 18 hours of battery life, 50 W rated power and a non-removable battery, the robot is designed for long service times and predictable internal processes.
This text is machine translated.
LiDAR, 3D-stereo-Vision, picture module, collision sensor and IMU support a precise movement on defined paths as well as a reliable obstacle detection. The adjustable driving speed from 0.1 to 0.8 m/s, a minimum transmission width of 70 cm and the braking distance of 80 cm at maximum speed and full load on dry road surfaces enable a usage adapted to the daily working life.
T9 supports multi-Point delivery with up to 20 delivery points per trip and multi-robot collaboration with up to 20 robots in the same environment. This makes it suitable for serving food and drinks, return dishes, buffet and conference service, delivery processes close to the room, as well as internal transport tasks in restaurants, hotels and commercial facilities.
The four tablets are removable and can be used flexibly for different types of transport goods. Alternatively, a 3-tablet configuration is provided. The open access from front and rear facilitates the loading and unloading. The 11.6-inch HD touchscreen with 1080p resolution, light/touch interaction, expression indicators, and voice alerts support intuitive operation in day-to-day service operations.
Automatic charging via the charging station as well as manual charging by charging enables a flexible power supply. With 13 to 18 hours of battery life, 50 W rated power and a non-removable battery, the robot is designed for long service times and predictable internal processes.
This text is machine translated.
Scope of delivery
- KEENON DINERBOT T9 ROBOT
- 4 silicon supports
- Battery charger
- Product manual
- Charging station
Hints
Optional: Floating Tray and Dishpan are provided as optional accessories.
