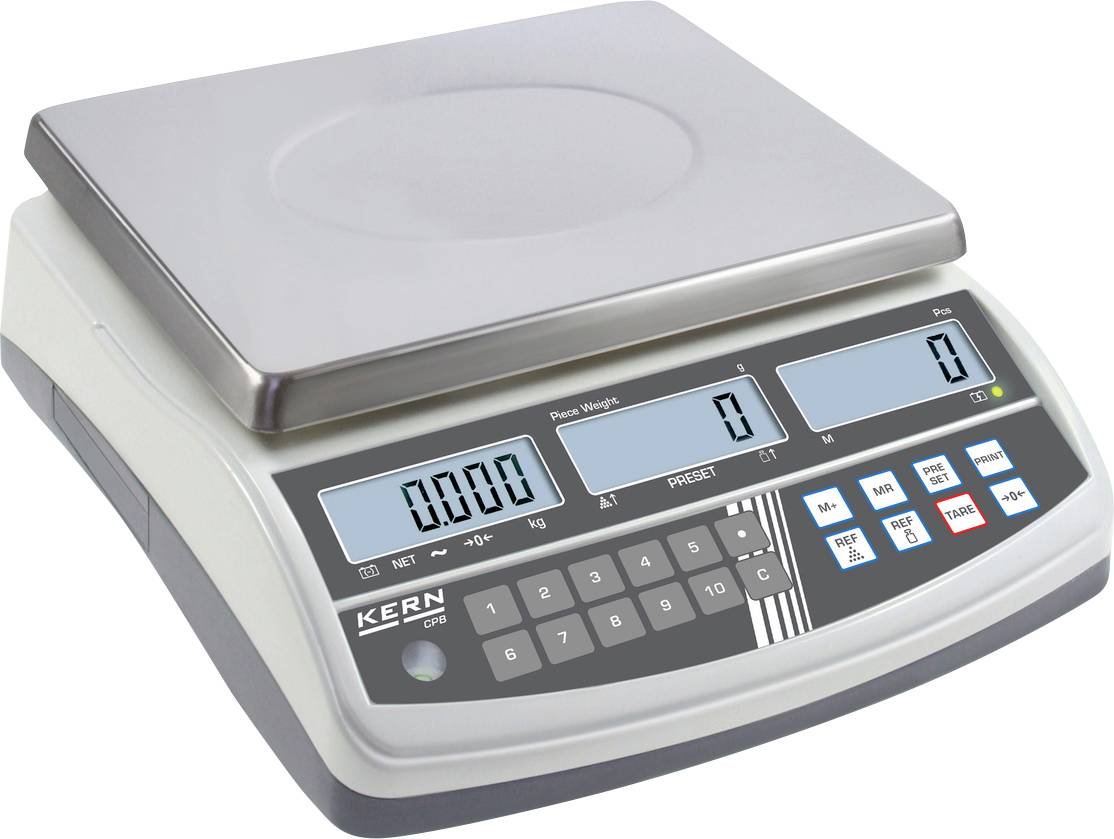

Kern CPB 30K5DM+C Counting scales CPB 30K5DM+C Calibrated to (DAkkS standards) Weight range 30 kg Readability 5 g, 10 g
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Counting scale with type approval 0,005 kg: 0,01 kg : 15 kg: 30 kg
- The economical model
- also with EC type approval [M]
- counting resolution up to 60,000 points
Technical specifications
- Weight range
30 kg
- Product type
Counting scales
- Readability
5 g
10 g
- Display
Digital
- Power supply (LOV)
via PSU
DAkkS standards
- Factory colour
Silver
- Power supply (details)
220 V - 240 V/AC 50 Hz
- Dim
(L x W x H) 100 x 315 x 100 mm
- Weight
3.6 kg
- Calibratable
No
- Weighing plate
Stainless steel
- Width
315 mm
- Height
100 mm
- Length
100 mm
- Reproducibility
0.005 kg
0.01 kg
- Type
CPB 30K5DM+C
- Features
Counting
Calibratable
Calibratable
- Top plate (width)
295 mm
- Top plate (length)
225 mm
Documents & Downloads
Datasheet
Datasheet 2237320 Kern CPB 30K5DM+C Counting scales CPB 30K5DM+C Calibrated to (DAkkS standards) Weight range 30 kg Readability 5 g, 10 g
User & Safety Instructions
User & Safety Instructions 2237320 Kern CPB 30K5DM+C Counting scales CPB 30K5DM+C Calibrated to (DAkkS standards) Weight range 30 kg Readability 5 g, 10 g
Information
Information 2237320 Kern CPB 30K5DM+C Counting scales CPB 30K5DM+C Calibrated to (DAkkS standards) Weight range 30 kg Readability 5 g, 10 g
Description
Accurate figures: The automatic reference optimisation gradually improves the average value of the piece weight can be programd via keypad: - - desired reference quantities-known reference weight - Target Quantity for check-weighing can be programd with an acoustic signal - Total Counting memory: for summing up of the same number of parts in total weight and total-Acoustic Fill-to-target: target quantity or weight can be programd. Beeps upon reaching the target value - High Mobility: thanks to battery mode (optional), compact, flat design and low self-weight suitable for use at several locations (production, storage, dispatch,...)
This text is machine translated.
This text is machine translated.
Features
- Precise counting: The automatic optimisation of reference weight gradually improves the average value of the piece weight
- Programmable using numerical key pad:
- - required reference quantity
- - known reference weight
- Target piece input check-weighing with an audible signal
- Counting results memory: adds up all individual counting operations, result is shown in total weight and total pieces
- Audible Fill-to-target: target quantity or target weight can be programmed. When the target value is reached, a signal will sound
- High mobility: thanks to battery operation (optional), compact, flat construction and low weight, it is suitable for use in several locations (production, warehouse, dispatch department,...)
Hints
Note: For applications requiring calibration, please order the calibration at the same time, subsequent initial calibration is not possible. For the calibration we need the complete address of the site.
