Klauke 50068920SET Sheetmetal punch set
EAN:
Part number:
Item no:
Technical specifications
- With tool: Yes
- Splitting hole: No.
- Hydraulic actuation type: Yes
- Mechanical actuation type: No.
- Hole sizes ISO: 16, 20, 25, 32, 40, 50, 63
- Number of sheet metal holes: 7
- With case/bag: Yes
- Product type
Sheetmetal punch set
- Material suitability
Steel
Plastic
Aluminium
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3430610 Klauke 50068920SET Sheetmetal punch set
Description
This high-quality Slug Buster® split-hole punch set has been specially developed for punching fast, clean and burr-free holes according to ISO 16 to 63 in materials such as steel plate (St37), plastic and aluminum up to 3.5 mm.
This text is machine translated.
This text is machine translated.

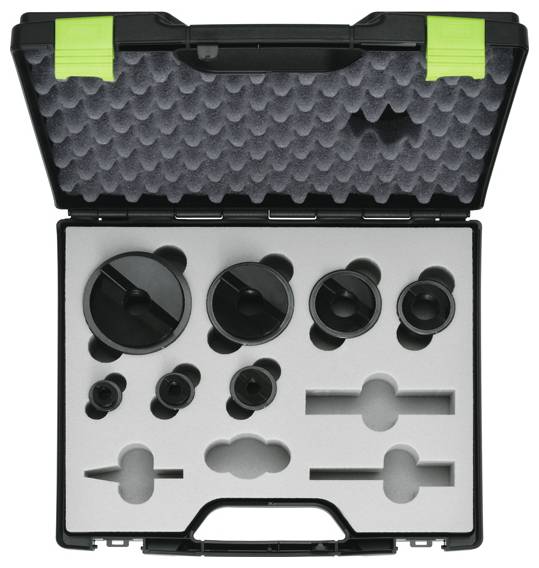

Scope of delivery
- ISO 16 stamp and die (16.2 mm)
- ISO 20 stamp and die (20.4 mm)
- ISO 25 stamp and die (25.4 mm)
- ISO 32 stamp and die (32.5 mm)
- ISO 40 stamp and die (40.5 mm)
- ISO 50 stamp and die (50.8 mm)
- ISO 63 stamp and die (64.0 mm)
- Traction screws for manual operation Ø 9.5 x 40 mm (50000420)
- Traction screw for manual operation Ø 19.0 x 75 mm (50040421)
- Ratchet (50349414)
- Kwik Stepper™ Step Drill 9.7 mm (50360183)
