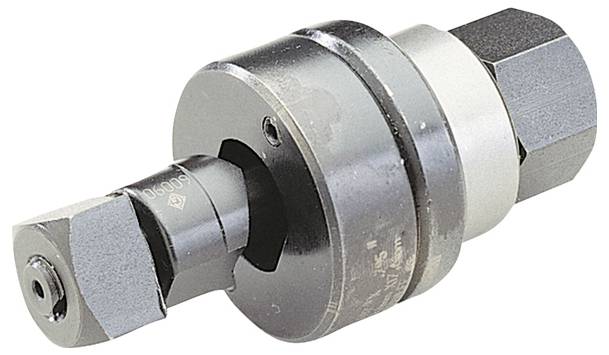

Klauke 50610953 Dual punch form
EAN:
Part number:
Item no:
Technical specifications
- Design: Complete (with draw bolt)
- Splitting hole: No.
- Hole width 23.2 mm
- Hole height 20.2 mm
- Hydraulic actuation type: Yes
- Mechanical actuation: Yes
- Product type
Dual punch form
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3429357 Klauke 50610953 Dual punch form
Description
Suitable for steel sheet (ST37), plastic and aluminum up to 2.0 mm thickness. Complete system consisting of stamp, die plate, traction screw, lock nut and ball bearing nut. Manual and hydraulic actuation. Pre-drilling with 15.9 mm diameter pre-drill 50344030.
