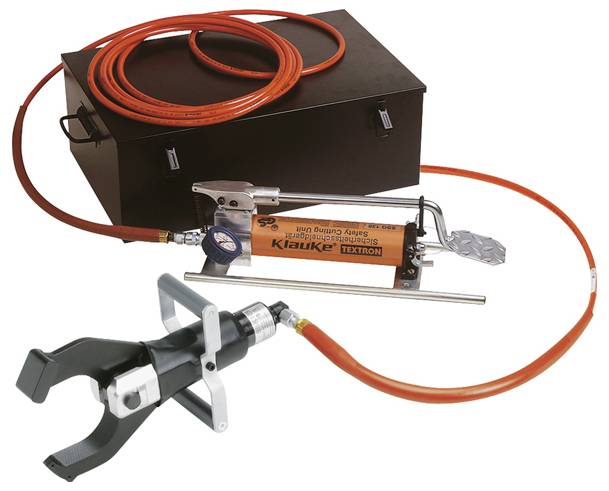

Klauke Hydraulic safety cutting device with foot pump SSG105
EAN:
Part number:
Item no:
Highlights & Details
Hydraulic safety cutting device with foot pump
- Two-stage hydraulics
- Manual reverse if required
- Cutting head with quick coupling, rotatable by 360°
Technical specifications
- Operating pressure 625 bar
- Head shape: Open
- Product type
Multi-purpose shear
- Max. blade diameter
105 mm
- Weight
19 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3430651 Klauke Hydraulic safety cutting device with foot pump SSG105
Description
BG-tested safety cutting equipment for cutting live Cu/Al cables without steel reinforcement with nominal voltage up to 60 kV in the event of a fault. Single-conductor cables without steel reinforcement can be cut safely under voltage up to 110 kV/60Hz. Cutting head with quick coupling, rotatable by 360°. Two-stage hydraulics. Manual return as required, also in the high pressure range.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Hydraulic safety hose, 10 m
- PG set (EG1)
- Steel sheet box (MKSSG)
