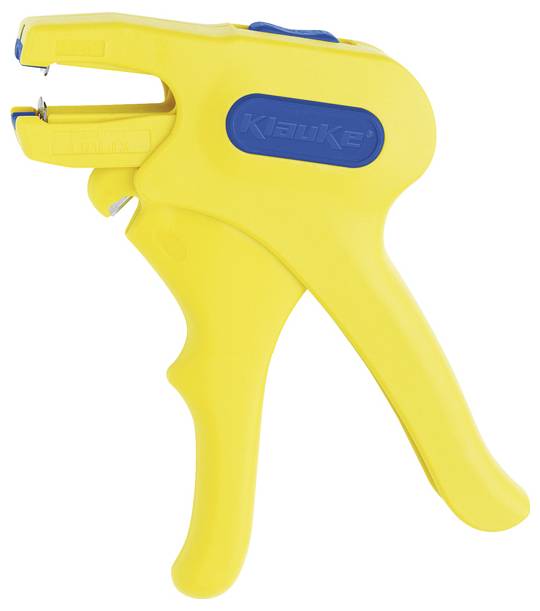

Name: Klauke KL765PV KL765PV Electrician Cable stripping pliers 1.5 up to 6 mm² 9 up to 15 awg Suitable for brand (pliers) Kla
Brand: Klauke
SKU: 3430342

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Stripping length adjustable: Yes
Notch depth adjustable: Yes
Self-adjusting: Yes
Longitudinal cut: No.
Round cut: Yes
Spiral cut: No.
With wire cutter: Yes
Insulated: No.
Protective insulation 1000 V: No.
VDE tested: No.
ESD tested: No.
With impact protection: No.
Grip cover: Without
Handle design: 1 components
Surface treatment: Sandblasted

Product type: Cable stripping pliers

Suitable for: Solar cables

Working area (cross section): 1.5 up to 6 mm²

Working area cross section (min.): 1.5 mm²

Operating range (cross section) (max.): 6 mm²

Operating range (AWG diameter): 9 up to 15 awg

Range of use: Electrician

Operating range (AWG cross section) (min.): 15 awg

Operating range (AWG cross section) (max.): 9 awg

Length stop range: 8 up to 24 mm

Length stop (min.): 8 mm

Length stop (max.): 24 mm

Material properties: sandblasted

Length: 180 mm

Suitable for: Klauke

Weight: 205 g

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3430342 Klauke KL765PV KL765PV Electrician Cable stripping pliers 1.5 up to 6 mm² 9 up to 15 awg Suitable for brand (pliers) Kla

Description

Fine adjustment (5-way) possible for different cable types and cable diameters. Built-in side cutter upto max. 3 mm diameter. Visual length measure 8 - 24 mm (5/16 - 1 inch). Stripping and stripping of all common, flexible cables in the field of solar technology from 1.5 mm² - 6.0 mm² (15-9 AWG).
