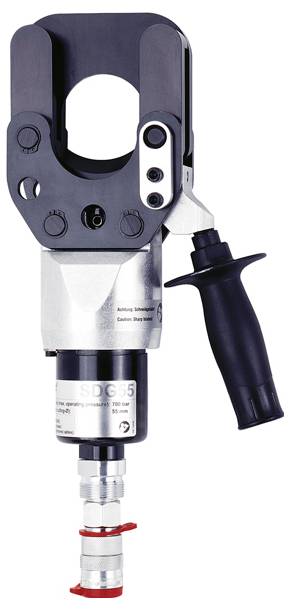

Klauke SDG55 SDG55 Cutting head 55 mm 625 mm²
EAN:
Part number:
Item no:
Technical specifications
- Cutting force 120 kN
- Operating pressure (max.): 700 bar
- Suitable for solid conductors: Yes
- Suitable for multi-wire conductors: Yes
- Suitable for fine-wire conductors: Yes
- Insulated: No.
- Cutter jaws can be changed: No.
- With stripping function: No.
- Protective insulation 1000 V: No.
- With impact protection: No.
- VDE tested: No.
- Product type
Cutting head
- Manufacturer part #
SDG55
- Length
380 mm
- Wire hardness diameter (max.)
55 mm
- Wire hardness cross section (max.)
625 mm²
- Weight
5.6 kg
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3429950 Klauke SDG55 SDG55 Cutting head 55 mm 625 mm²
Description
High cutting strength for cutting copper and aluminum cables with armoring and with Al/St-ropes (ACSR). Also suitable for aluminum, copper and steel round materials. 120 kN cutting force for maximum power. Closed cutting head with bolt lock, can be folded up. Rotates 360° in zero pressure. With quick coupling For connecting to hydraulic pumps with a working pressure of 700 bar. Ergonomic handling through handle.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Carrying case (TT2)
