Knipex 83 30 015 L-pipe wrench 45° 1 1/2"
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Pipe wrench S-Maul
- Jaw Opening Max: Ø 60 mm (2 3/8 mm, Overall Length: 420 mm
- Slim, S-type jaw
- Jaws with offset teeth in opposite direction
- Teeth additionally induction hardened

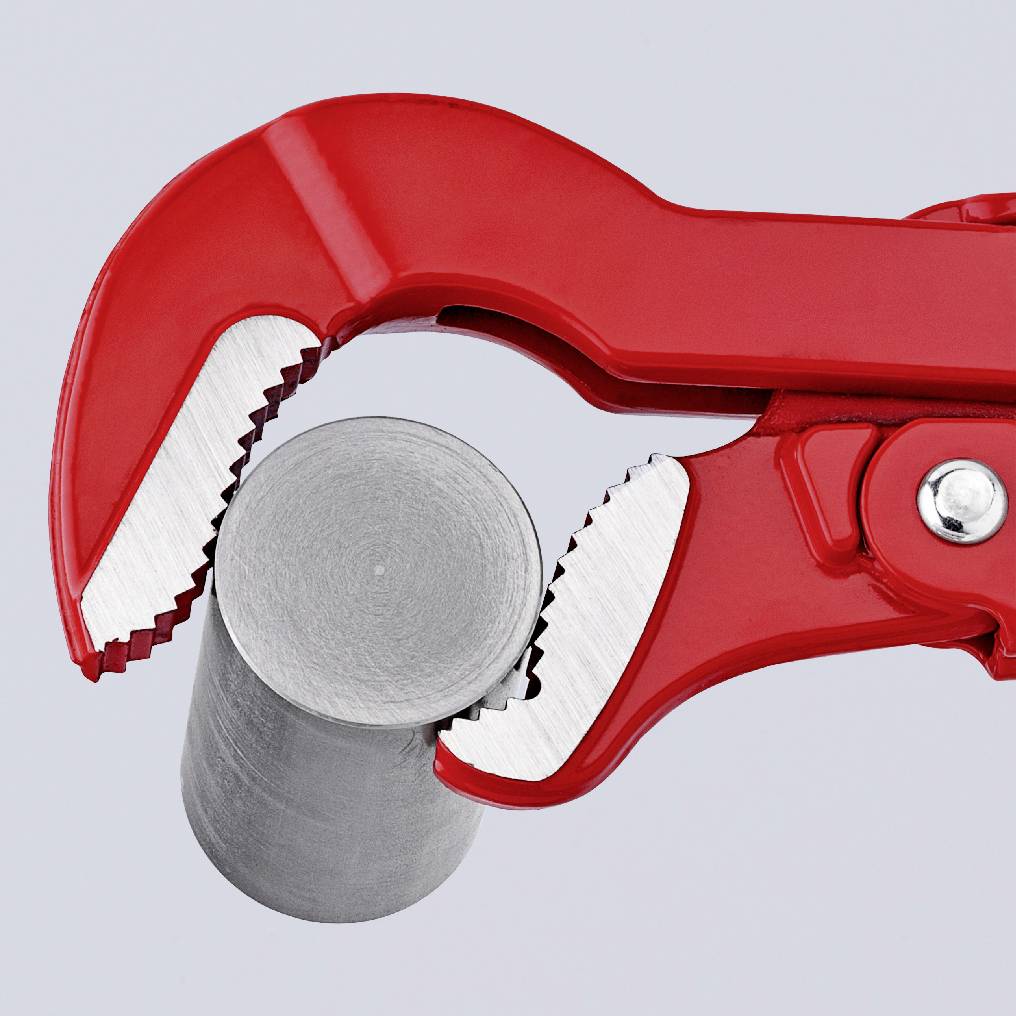

- Three-point contact on pipes, self-locking
- I-beam handle design
- Captive adjusting nut
- Red powder coated, jaws bright ground
- Chrome vanadium electric steel, forged, oil-hardened
- DIN 5234
Technical specifications
- Clamping range
Ø 60 mm (2 3/8 mm
- Type
83 30 015
- Length
420 mm
- Dim
(L x W x H) 420 x 78 x 35 mm
- Height
35 mm
- Width
78 mm
- Jaw angle
45°
- Material
Chromium-vanadium electric furnace steel
- Material properties
tempered
- Pipe diameter (in inches) (max.)
1 1/2"
- Jaw shape
C
- Manufacturer part #
83 30 015
- Range (max.)
60 mm
- Weight
1540 g
- DIN standard
DIN 5234
- Product type
L-pipe wrench
Variants(All information is without VAT, plus shipping costs)
Dim
Type
(L x W x H) 420 x 78 x 35 mm
83 30 015
Minimum order quantity: 1
Multiple: 1
€ 50.41*
Knipex 83 30 005 L-pipe wrench 45° 1/2"
(L x W x H) 245 x 41 x 20 mm
83 30 005
Minimum order quantity: 1
Multiple: 1
€ 36.97*
Knipex 83 30 010 L-pipe wrench 45° 1"
(L x W x H) 320 x 59 x 30 mm
83 30 010
Minimum order quantity: 1
Multiple: 1
€ 36.13*
Knipex 83 30 020 L-pipe wrench 45° 2"
(L x W x H) 540 x 95 x 35 mm
83 30 020
Minimum order quantity: 1
Multiple: 1
€ 77.30*
Knipex 83 30 030 L-pipe wrench 45° 3"
(L x W x H) 680 x 87 x 25 mm
83 30 030
Minimum order quantity: 1
Multiple: 1
€ 151.25*
Documents & Downloads
Datasheet
Datasheet 822354 Knipex 83 30 015 L-pipe wrench 45° 1 1/2"
User & Safety Instructions
User & Safety Instructions 822354 Knipex 83 30 015 L-pipe wrench 45° 1 1/2"
Description
Slim, S-shaped mouth. Against the direction of rotation offset teeth. Teeth hardened inductively in addition. Three Point plant at the pipe, wedging. Double-T profile grip. Captive adjusting nut. Red powder coated, polished jaws. Forged. Chrome-vanadium electric steel, forged, oil-hardened multi-level
This text is machine translated.
This text is machine translated.
Features
- Double-T profile grip
- Red powder-coated, polished jaws
- Forged
- Captive Adjusting Nut
- Teeth induction hardened
- Slim, S-shaped mouth
- Against the direction of rotation offset teeth
- Three Point plant at the pipe, WEDGING
- Chromium-vanadium electric-steel, forged, oil-hardened.
- This text is machine translated.
