Buy Knipex 86 05 180 Multigrip pliers 40 mm 18 cm

'Lineman's pliers with red and blue grips, labeled "KNIPEX," "Made in Germany," and "86 05 180." Features a multi-groove, serrated jaw.'

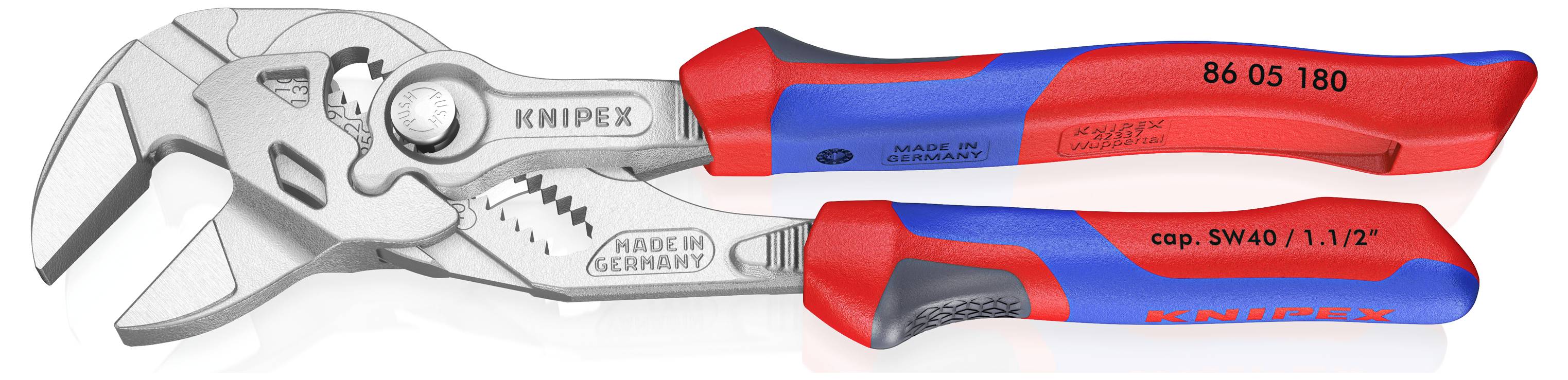

Adjustable pliers with red and blue handles, metallic head, featuring a zig-zag gripping mechanism.

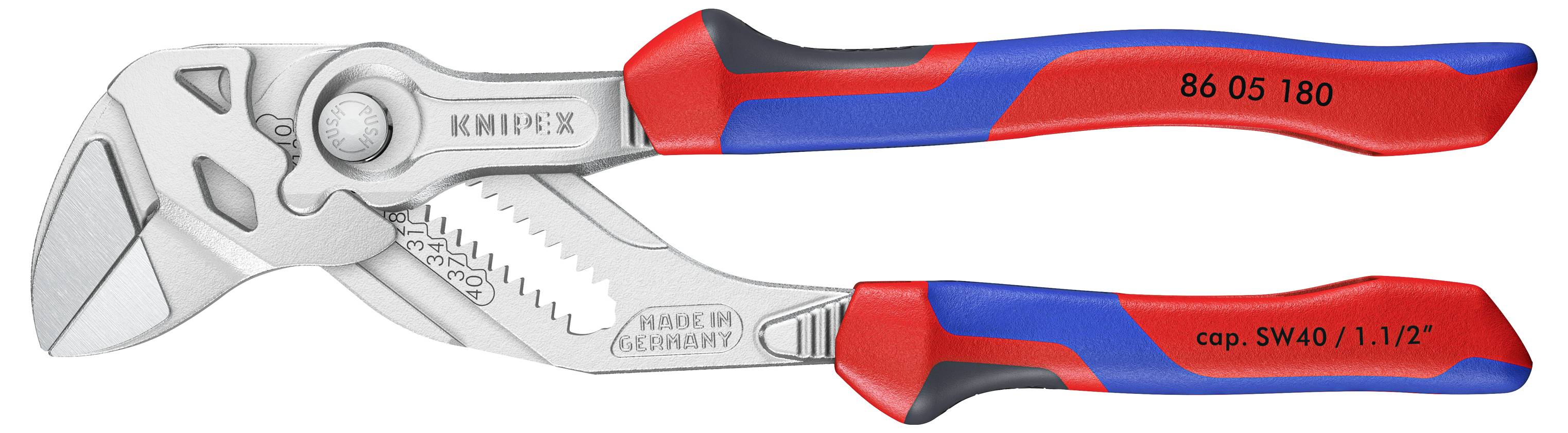

Adjustable wrench with red and blue handles, engineered for gripping various sized objects.

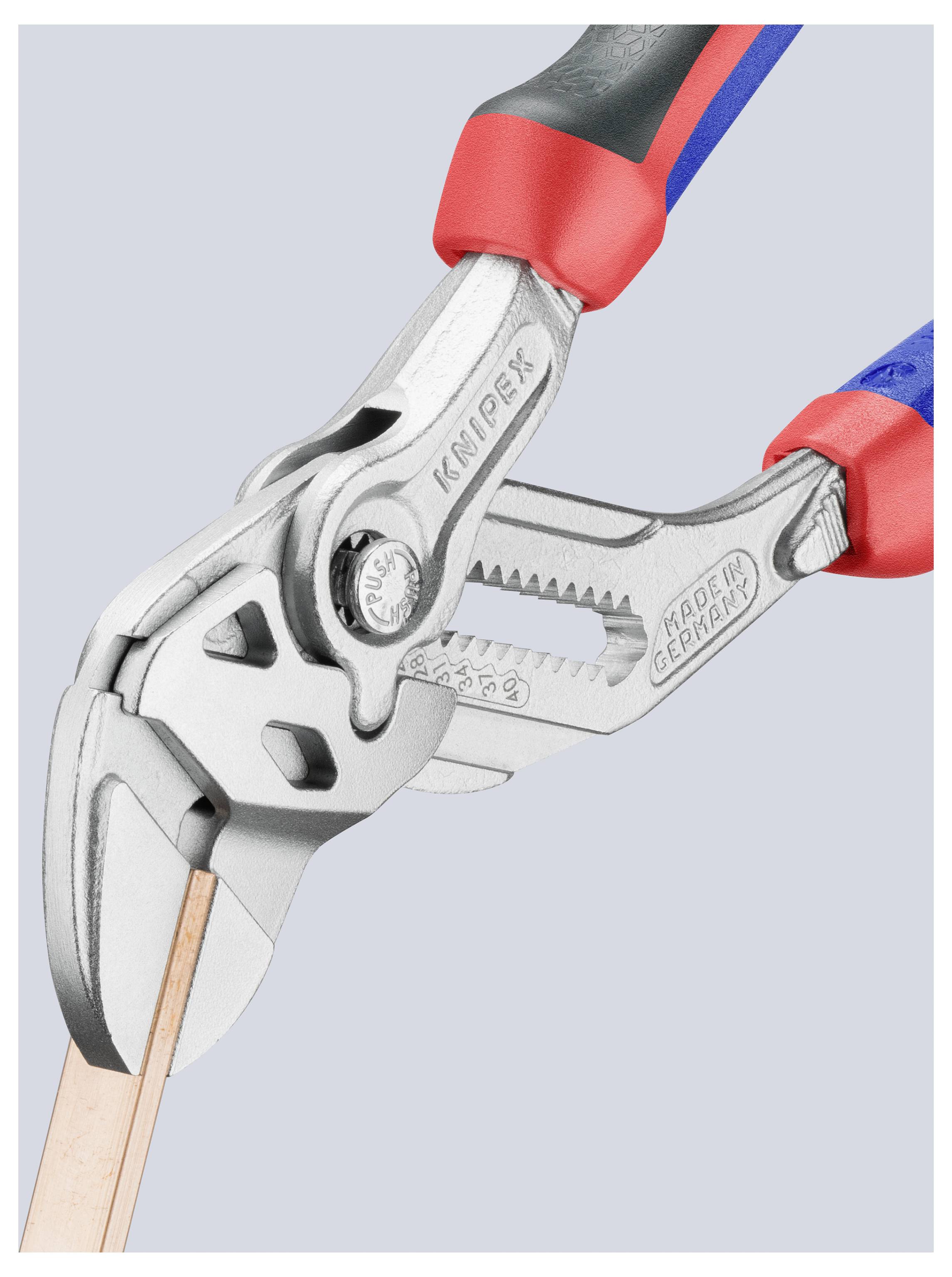

A metal plier grips a wire, with red and blue rubber handles for insulation. The tool has an adjustable jaw mechanism.

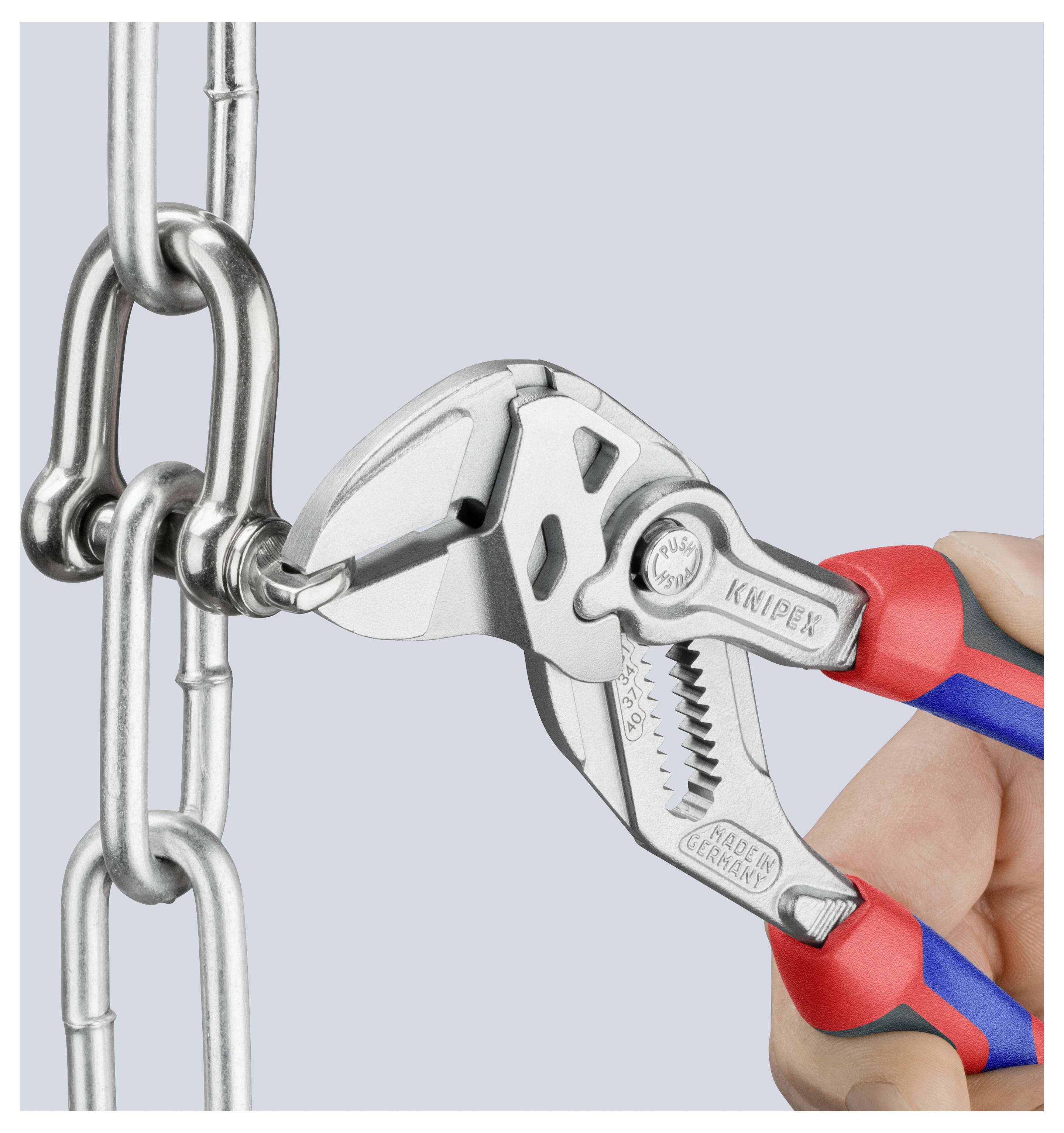

A hand uses adjustable pliers to cut a metal chain link, demonstrating the cutting function of the tool.

A person uses adjustable pliers to grip a metal chain, showing the tool's versatility and grip strength.

A pair of adjustable pliers gripping a metal nut, showcasing a precise and secure hold.

1/7

Datasheet (PDF)

250 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 43.69 / piece)

€

Report legal concerns

Highlights & Details

Multigrip Pliers

Increased gripping capacity through two additional adjustment positions: Continuous gripping of all wrench widths up to 40 mm
Convenient setting scale: A lasered scale allows the presetting of the key width before access
Pliers and wrench in one tool
Replaces a set of wrenches - metric and imperial
Also for the gentle mounting of surface-refined fittings
Ideal for gripping, holding, crimping and bending workpieces
Steplessly measures metric and imperial dimensions
A lasered scale allows the preset width of the key before access
Strong gripping power with 10x hand strength transmission
Chrome-plated pliers

Technical specifications

B1 5.00 mm
B2 8.00 mm
B3 12.00 mm
Adjusting positions 13

Manufacturer part #: 86 05 180

Range (max.): 40 mm

Range (in inches): 1 1/2"

Positon: 15

Length: 18 cm

Material: Chromium-vanadium electric furnace steel

Material properties: tempered
chrome plated

DIN standard: DIN ISO 5743

Dim: (L x W x H) 18 cm x 62 mm x 20 mm

Weight: 260 g

Height: 20 mm

Width: 62 mm

Product type: Multigrip pliers

Documents & Downloads

Datasheet

Datasheet 822359 Knipex 86 05 180 Multigrip pliers 40 mm 18 cm

User & Safety Instructions

User & Safety Instructions 822359 Knipex 86 05 180 Multigrip pliers 40 mm 18 cm

Description

Smooth jaws for gentle assembly of with refined surface fittings - working directly on chrome!. Replaces a set of screw wrenches, metric as imperial. with narrow jaws - for screw situations that require a slim tool also ideal for gripping, holding, crimping and bending workpieces. Smooth jaws for gentle assembly of with refined surface fittings - working directly on chrome!. Damage to edges of sensitive fittings backlash-free, even jaw pressure prevents. Fast adjustment at the touch of a button directly on the workpiece. No accidental jaw adjustment or slipping of the joint Replaces a set of screw wrenches, metric as Imperial. Parallel jaws allow infinitely variable gripping of all wrench widths up to the specified maximum size The hub between the jaws enables the joint to be rapidly tightened and loosened using the ratchet principle Strong gripping power with 10x hand strength transmission. Chromium-vanadium electric-steel, forged, oil-hardened.

This text is machine translated.

Features

The secret of these pliers is in the smooth, parallel jaws
These can comfortably accommodate nuts and screws up to a width of 40 mm
Also for mountings with surface finish
The upward movement between the jaw surfaces applies the ratchet principle, without having to remove the pliers.
