Name: Krause 781031 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 5.40 m Silver 192.5 kg
Brand: Krause
SKU: 2521483

Mobile scaffolding tower with multiple platforms, guardrails, and wheels. Suitable for construction or repair work at greater heights.

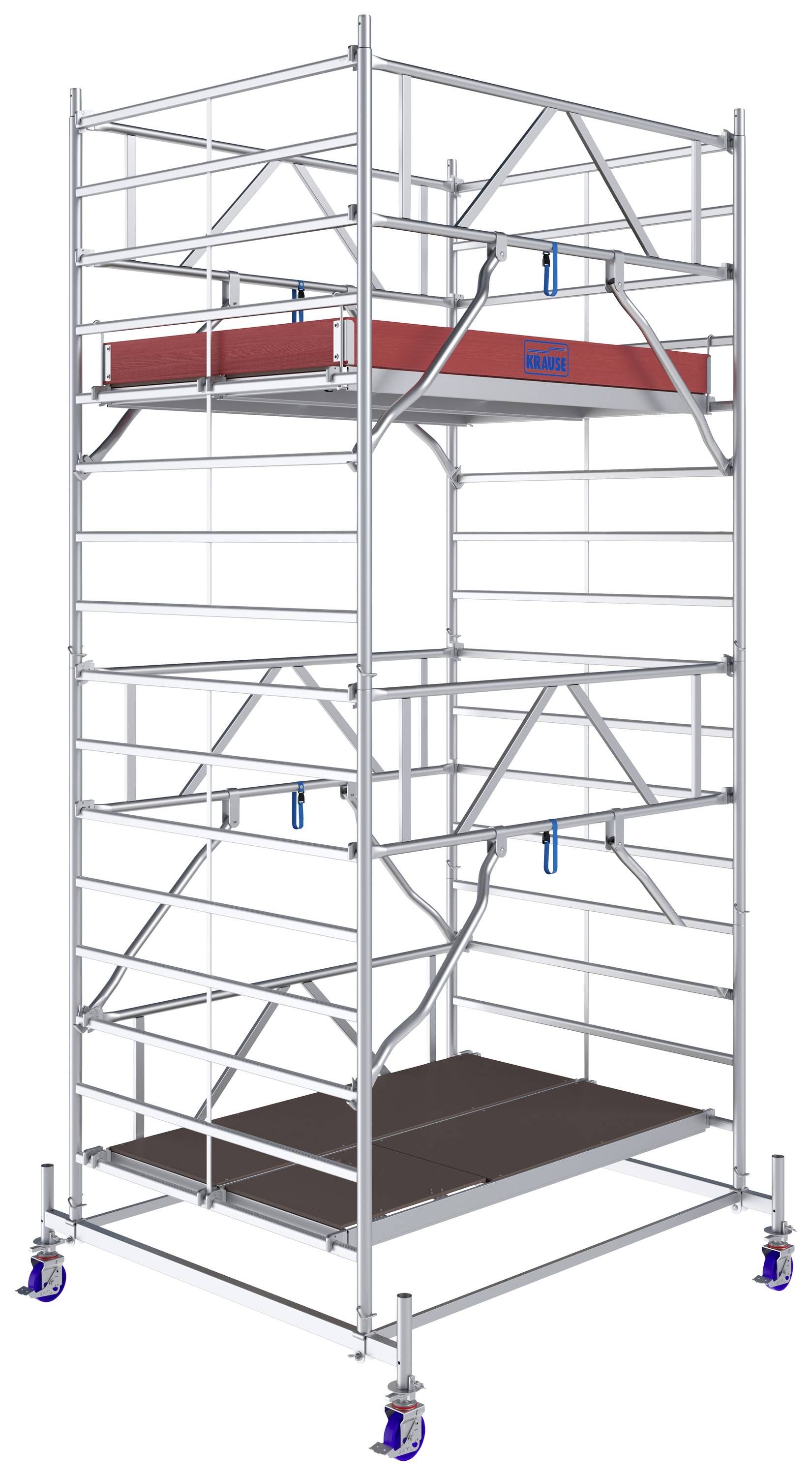

A mobile aluminium scaffold with two platforms at different heights and blue wheels for easy movement.

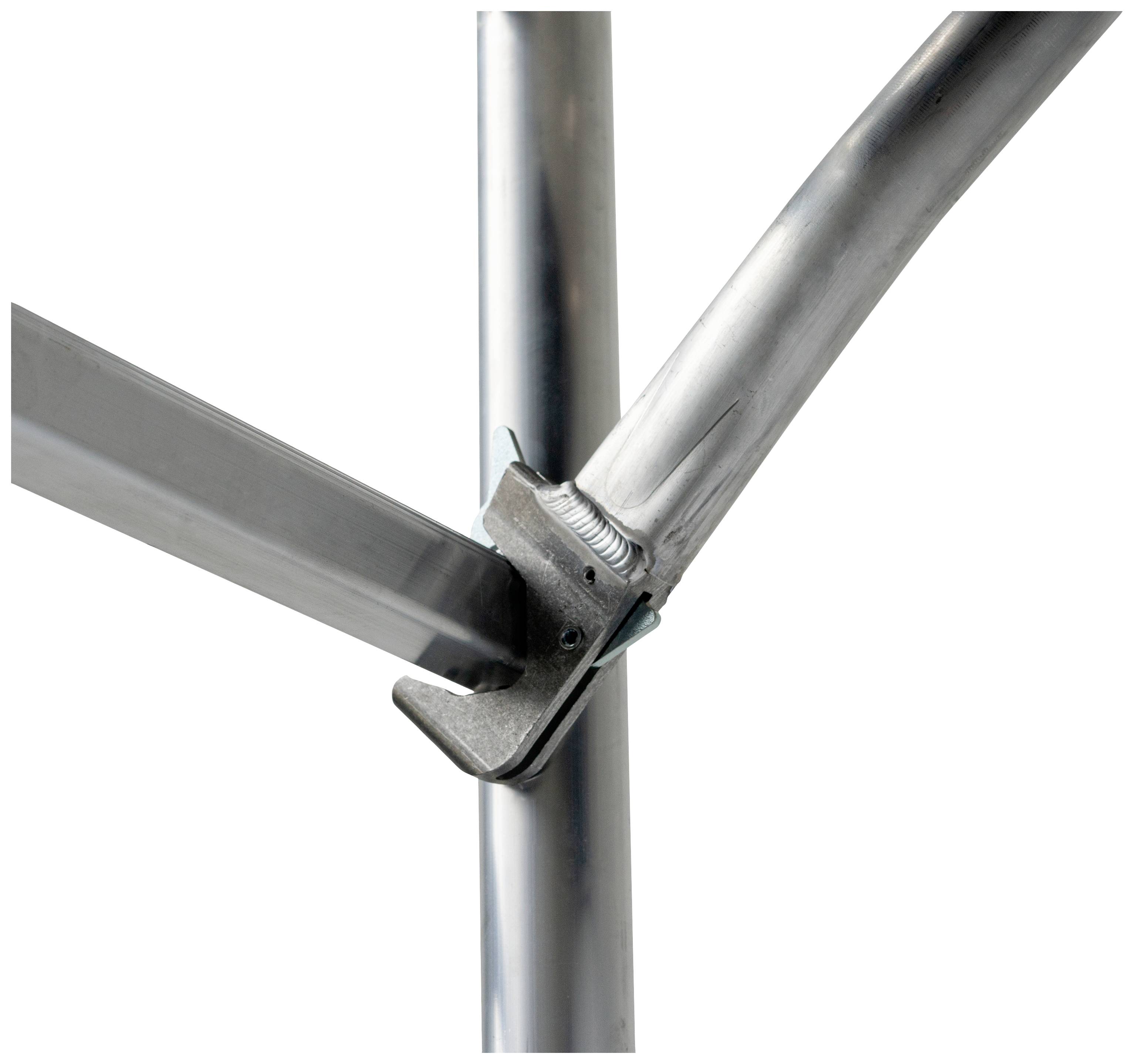

A metallic scaffolding component with a sturdy connection, comprising a vertical tube and a diagonally attached cross member.

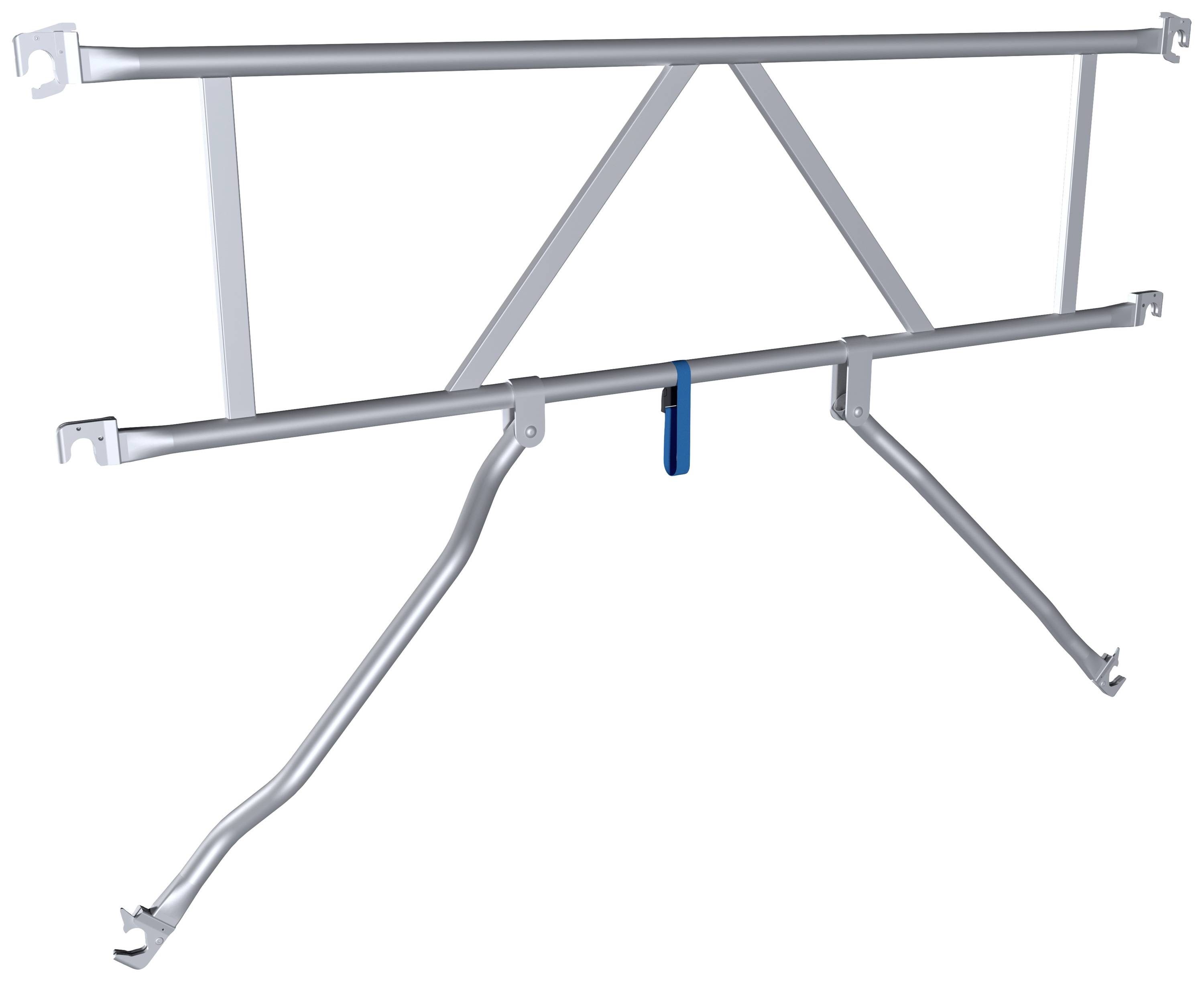

Metal frame with three horizontal bars, two curved legs, and hooks at the ends; suitable for scaffolding.

1/4

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

STABILO 50 series mast, field length 2.00 m, working height approx. 5.40 m.

TUV-tested, load capacity 200 kg/m² (frame group 3) according to DIN EN 1004-1
The 6-point fixing of the GuardMatic system provides for maximum stability in height. The unique self-locking KRAUSE locking system with a positive connection enables easy, fast and safe installation and removal
Maximum spacing of 2 m for comfortable and safe construction without auxiliary equipment
Stable steel traverse provides for a secure stand (starting from working height 4.40 m)
Height-adjustable castors (Ø 150 mm) ensure that they can also be used on uneven terrain thanks to the integrated spindle thread (stepless adjustment range: 220 - 335 mm)
The stand area of over 3,00 m² offers a large and safe workplace for personnel and material
Easy to mount boom with infinitely telescopic swivel base (adjustment range up to 230 mm) ensures a secure support and stability for high heights from a working height of 6.40 m on any surface

Technical specifications

Product type: Mobile scaffold

Max. load: 200 kg/m²

Dim: (L x W x H) 2.05 m x 1.9 m x 4.5 mm

Working height range: 5.1 m - 6 m

Factory colour: Silver

Material: Aluminium

Weight: 192.5 kg

Operating height (max.): 5.40 m

Features: Mobile

Platform width: 2 m

Platform depth: 1.50 m

Width: 1.9 m

Height: 4.5 mm

Length: 2.05 m

Maximum height: 3.40 m

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)

Dim

Working height range

Krause 781031 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 5.40 m Silver 192.5 kg

Item no:2521483

Unavailable

Conrad Electronic

This article

(L x W x H) 2.05 m x 1.9 m x 4.5 mm

5.1 m - 6 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 781017 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 3 m Silver 72.5 kg

Item no:2521485

Unavailable

Conrad Electronic

(L x W x H) 2.05 m x 1.9 m x 2.3 mm

2.1 m - 3 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 781024 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 4.40 m Silver 140 kg

Item no:2521484

Unavailable

Conrad Electronic

(L x W x H) 2.05 m x 1.9 m x 3.5 mm

4.1 m - 5 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 781048 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 6.40 m Silver 230 kg

Item no:2521482

Unavailable

Conrad Electronic

(L x W x H) 2.05 m x 1.9 m x 5.5 mm

6.1 m - 7 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 781055 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 7.40 m Silver 282.5 kg

Item no:2521481

Unavailable

Conrad Electronic

(L x W x H) 2.05 m x 1.9 m x 6.5 mm

7.1 m - 8 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 781062 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 8.40 m Silver 294 kg

Item no:2521480

Unavailable

Conrad Electronic

(L x W x H) 2.05 m x 1.9 m x 7.5 mm

8.1 m - 9 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 781079 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 9.40 m Silver 346.5 kg

Item no:2521479

Unavailable

Conrad Electronic

(L x W x H) 2.05 m x 1.9 m x 8.5 mm

9.1 m - 10 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 781086 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 10.40 m Silver 358 kg

Item no:2521478

Unavailable

Conrad Electronic

(L x W x H) 2.05 m x 1.9 m x 9.5 mm

10.1 m - 11 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 781093 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 11.40 m Silver 411 kg

Item no:2521477

Unavailable

Conrad Electronic

(L x W x H) 2.05 m x 1.9 m x 10.5 mm

11.1 m - 12 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 781109 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 12.40 m Silver 422.5 kg

Item no:2521476

Unavailable

Conrad Electronic

(L x W x H) 2.05 m x 1.9 m x 12.4 mm

12.1 m - 13 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 2521483 Krause 781031 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 5.40 m Silver 192.5 kg

User & Safety Instructions

User & Safety Instructions 2521483 Krause 781031 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 5.40 m Silver 192.5 kg

Description

The professional aluminum mast with double working surface. The secure structure is ensured by the attachment of the GuardMatic system railing frame before the next higher lining stage is suspended. When climbing through the belagbühne, a complete railing and thus a fall protection is available. The integration of the diagonals in the GuardMatic system ensures a simple and safe installation. For transport or storage, the rail frame can be folded together to save space. The innovative shape of the diagonals offers a maximum usable surface on the surface stage and does not disturb in any way.
