Krause 787033 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 6.30 m Silver 236.5 kg

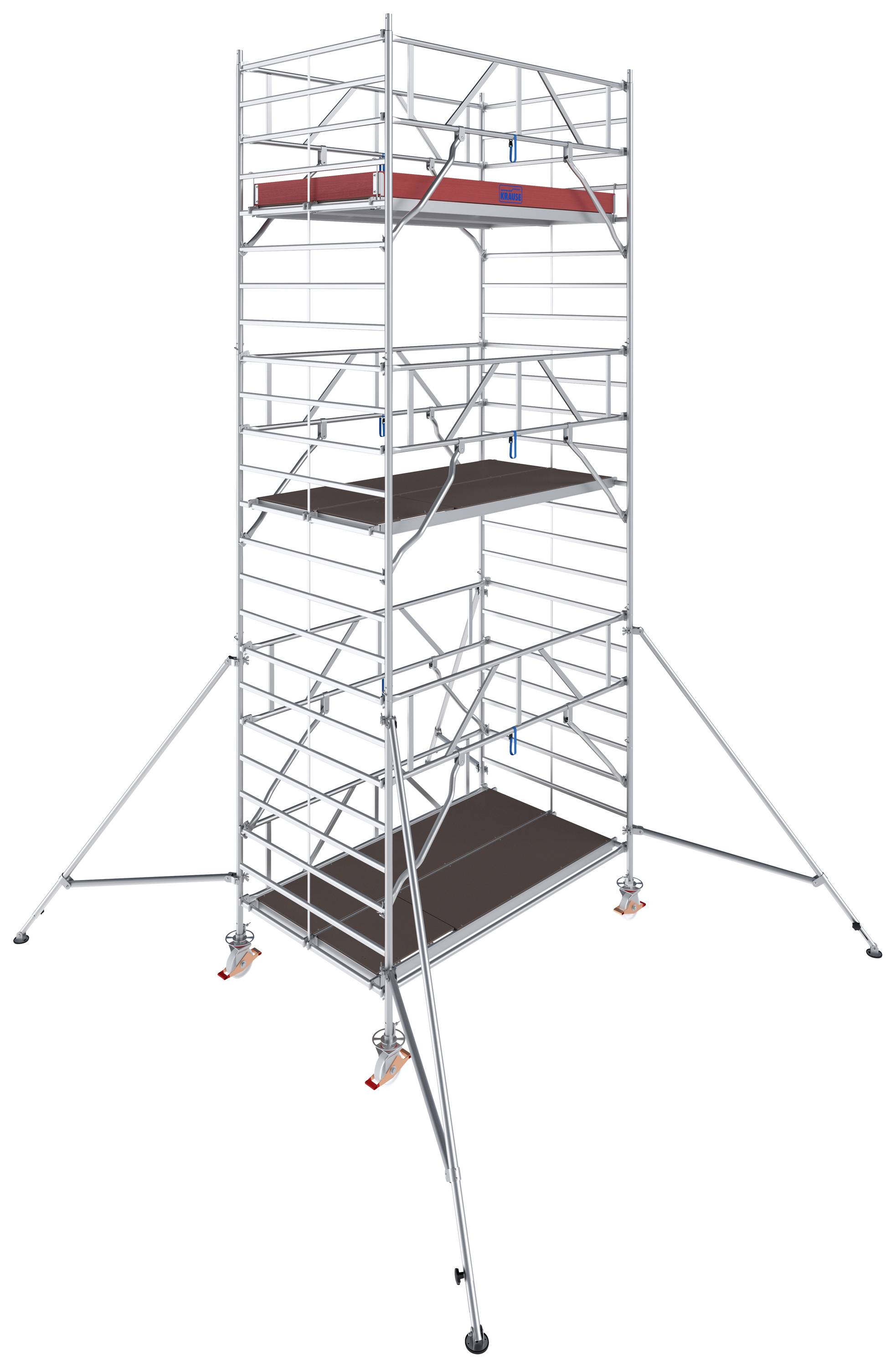

A tall metal scaffolding with multiple levels, surrounded by stabilising braces. It is used for working at greater heights.

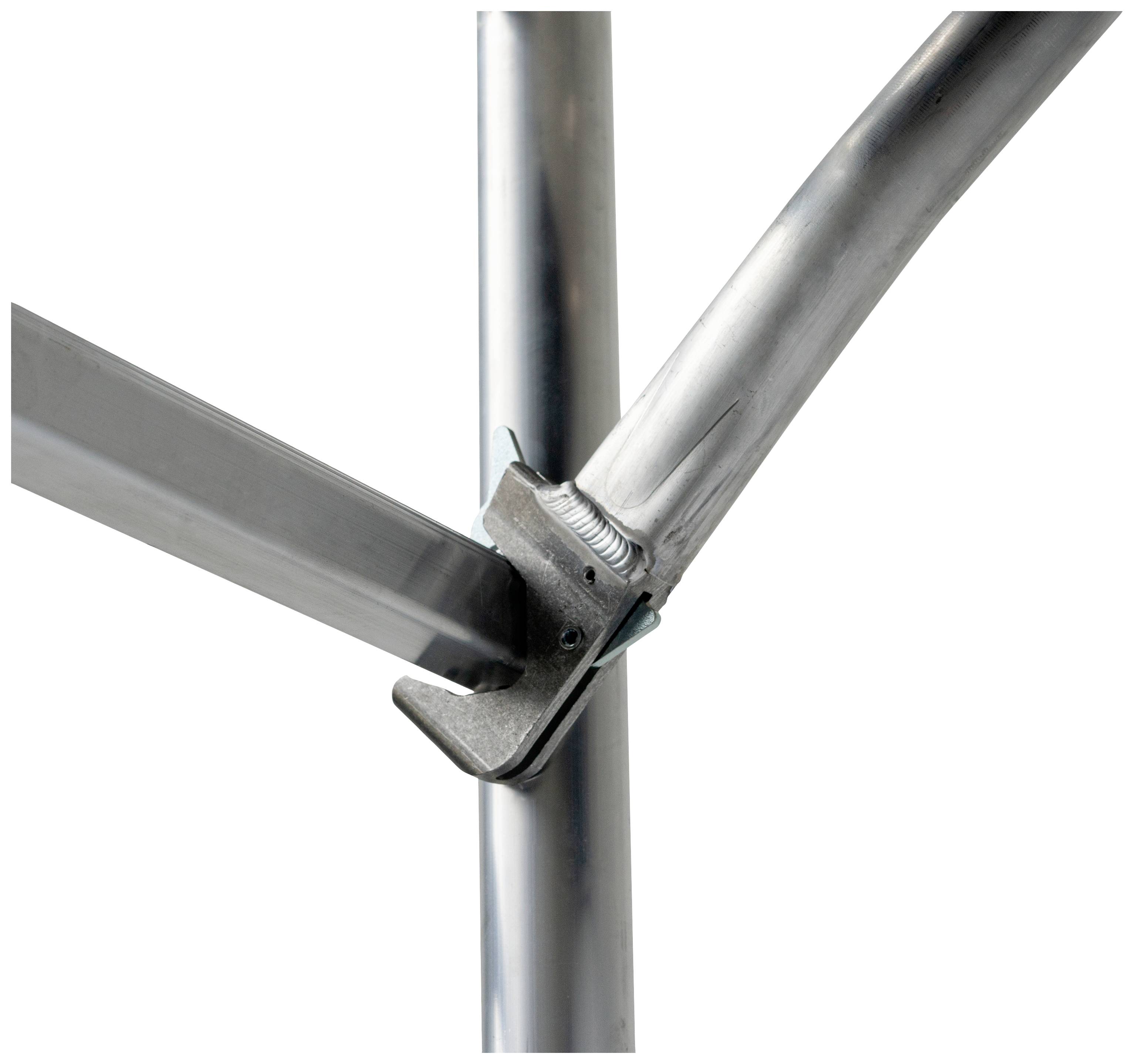

A metal tube connects to a frame via a mounting bracket and screw. The construction appears sturdy and robust.

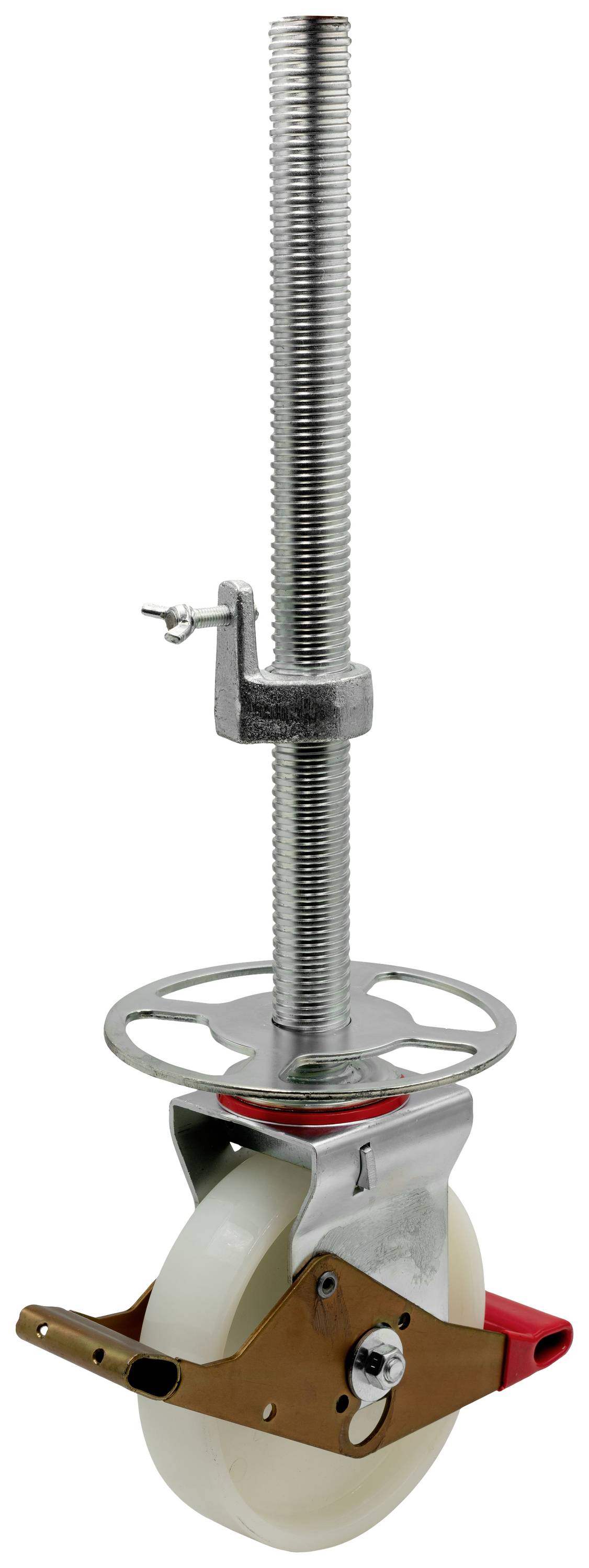

Swivel furniture castor with braking function; long thread for height adjustment; manufactured from metal and plastic.

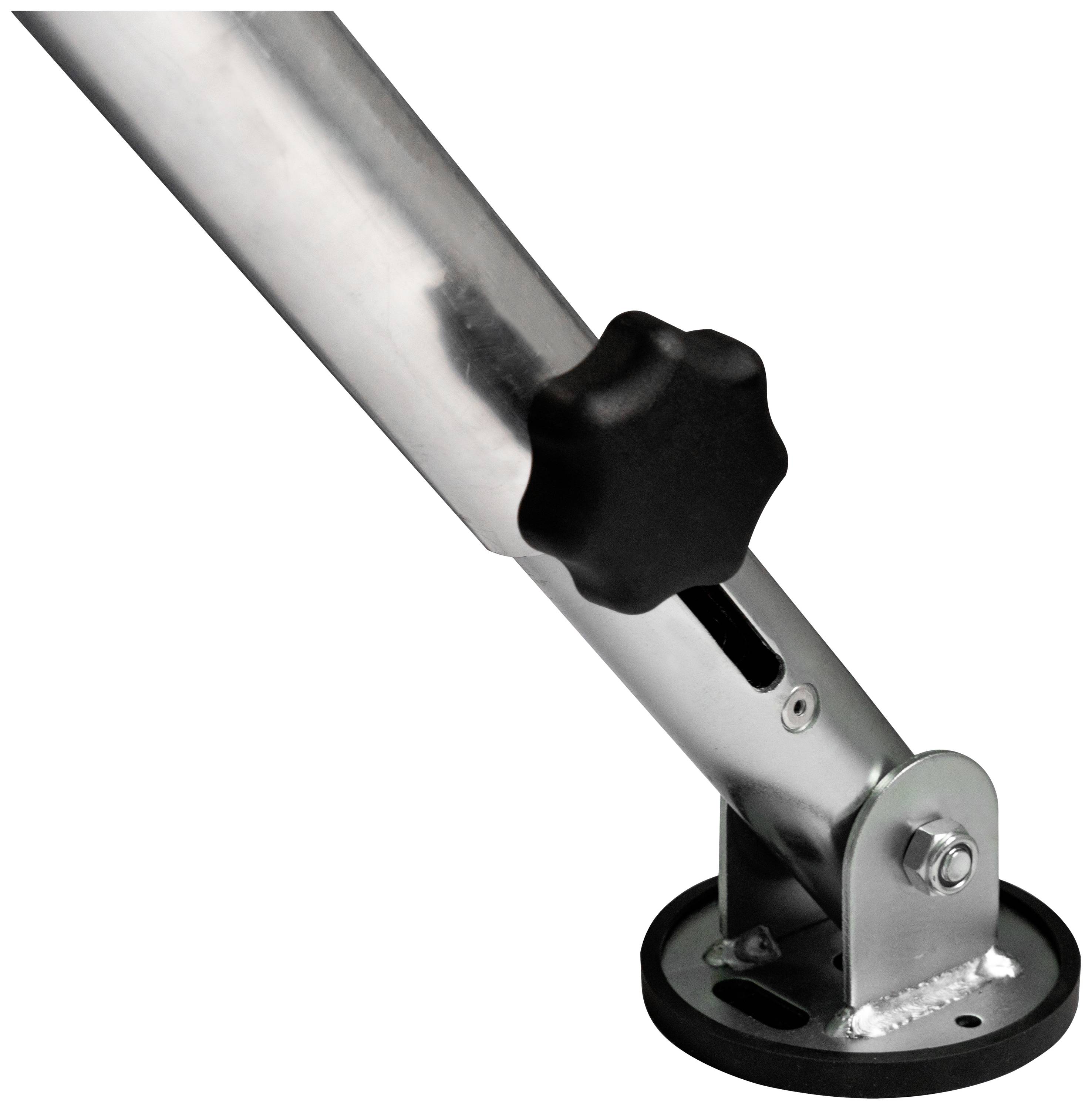

Close-up of an adjustable metal support with a black rotary knob for height adjustment, mounted on a circular base.

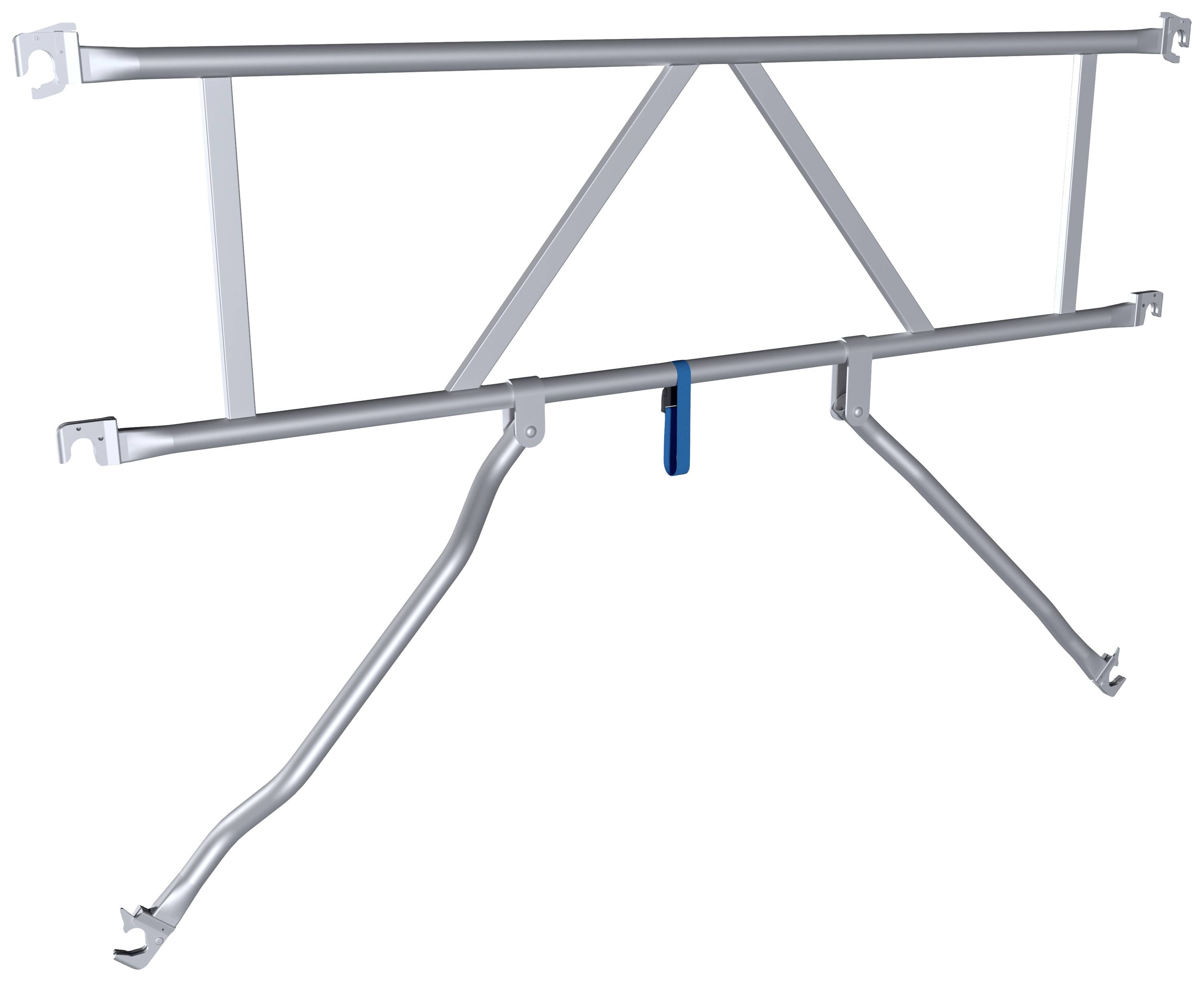

A silver scaffolding component with a blue lock in the centre, consisting of two horizontal bars and two angled supports.
1/5
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

STABILO 5000 series mast, field length 2.50 m, working height approx. 6.30 m.

  • TUV-tested, load capacity 200 kg/m² (frame group 3) according to DIN EN 1004-1
  • The stand area of almost 4.00 m² offers a large and safe workplace for personnel and material
  • The 6-point fixing of the GuardMatic system provides for maximum stability in height. The unique self-locking KRAUSE locking system with a positive connection enables easy, fast and safe installation and removal
  • Maximum spacing of 2 m for comfortable and safe construction without auxiliary equipment
  • Height-adjustable castors (Ø 200 mm) ensure that they can also be used on uneven terrain thanks to the integrated spindle thread (stepless adjustment range: 300 - 580 mm)
  • Easy to install boom with infinitely telescopic swivel base (adjustment range up to 230 mm) ensure secure support and stability for high heights on any surface

Technical specifications

Product type

Mobile scaffold

Max. load

200 kg/m²

Working height range

6.1 m - 7 m

Factory colour

Silver

Material

Aluminium

Weight

236.5 kg

No. of side arms

4

Operating height (max.)

6.30 m

Features

Mobile

Platform width

2.50 m

Platform depth

1.50 m

Maximum height

4.30 m

Documents & Downloads

Datasheet

Datasheet 2521390 Krause 787033 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 6.30 m Silver 236.5 kg

User & Safety Instructions

User & Safety Instructions 2521390 Krause 787033 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 6.30 m Silver 236.5 kg

Description

The professional aluminum mast without traverse with extra wide work surface. The secure structure is ensured by the attachment of the GuardMatic system railing frame before the next higher lining stage is suspended. When climbing through the belagbühne, a complete railing and thus a fall protection is available. The integration of the diagonals in the GuardMatic system ensures a simple and safe installation. For transport or storage, the rail frame can be folded together to save space. The innovative shape of the diagonals offers a maximum usable surface on the surface stage and does not disturb in any way.

This text is machine translated.

Scope of delivery

  • 4x Outlayer
