Krause 940100 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 2.90 m Silver 45 kg
EAN:
Part number:
Item no:
Highlights & Details
MONTO ProTec aluminum mast, working height approx. 2.90 m.
- TUV-tested, load capacity 200 kg/m² according to DIN EN 1004-1
- The 6-point fixing of the GuardMatic system provides for maximum stability in height

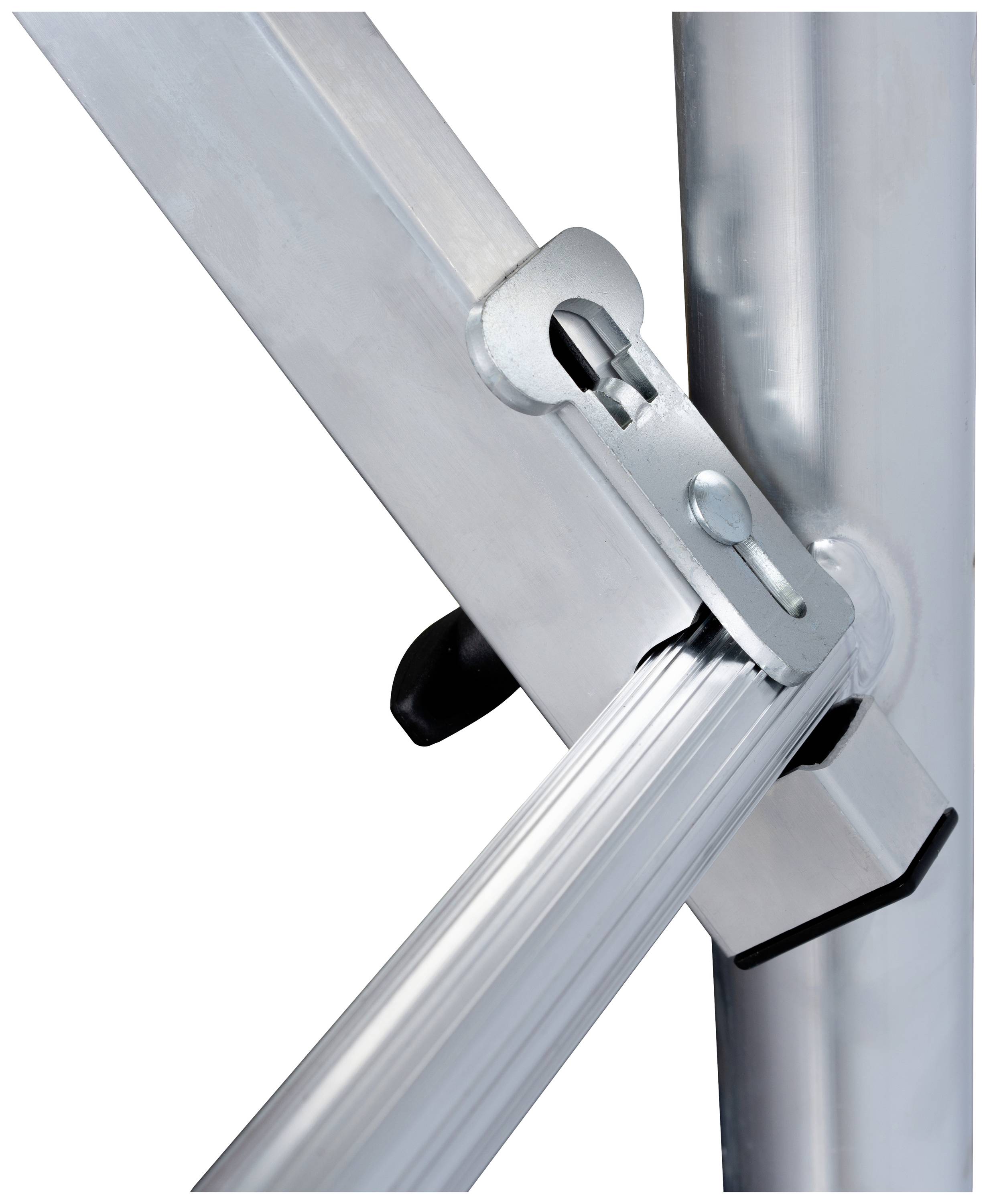

- Power-positive semi-automatic diagonal connections enable simple, fast and safe construction
- The innovative shape of the diagonals offers a maximum usable surface on the surface stage and does not disturb in any way
- Maximum spacing of 2 m for comfortable and safe construction without auxiliary equipment
- Secure inner ascent through non-slip profiled rungs
- Two 1-meter vertical frames included in the delivery, which can be plugged together to form a 2-meter vertical frame, enable flexible construction
- Weatherproof and anti-slip platforms (2.00 x 0.60 m)
- Braked, height-adjustable castors to compensate for uneven ground surfaces
- Easy-to-install radial arms provide additional stability from a working height of 7.30 m.
Technical specifications
- Product type
Mobile scaffold
- Max. load
200 kg/m²
- Working height range
2.1 m - 3 m
- Factory colour
Silver
- Material
Aluminium
- Weight
45 kg
- Operating height (max.)
2.90 m
- Features
Mobile
- Platform width
2.00 m
- Platform depth
0.60 m
- Maximum height
0.90 m
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2521526 Krause 940100 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 2.90 m Silver 45 kg
Description
The solid aluminum chassis for demanding applications with height-adjustable, braked rollers. The secure structure is ensured by the attachment of the GuardMatic system railing frame before the next higher lining stage is suspended. When climbing through the belagbühne, a complete railing and thus a fall protection is available. The integration of the diagonals in the GuardMatic system ensures a simple and safe installation. For transport or storage, the rail frame can be folded together to save space.
