Krause 945150 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 8.30 m Silver 237.90 kg
EAN:
Part number:
Item no:
Highlights & Details

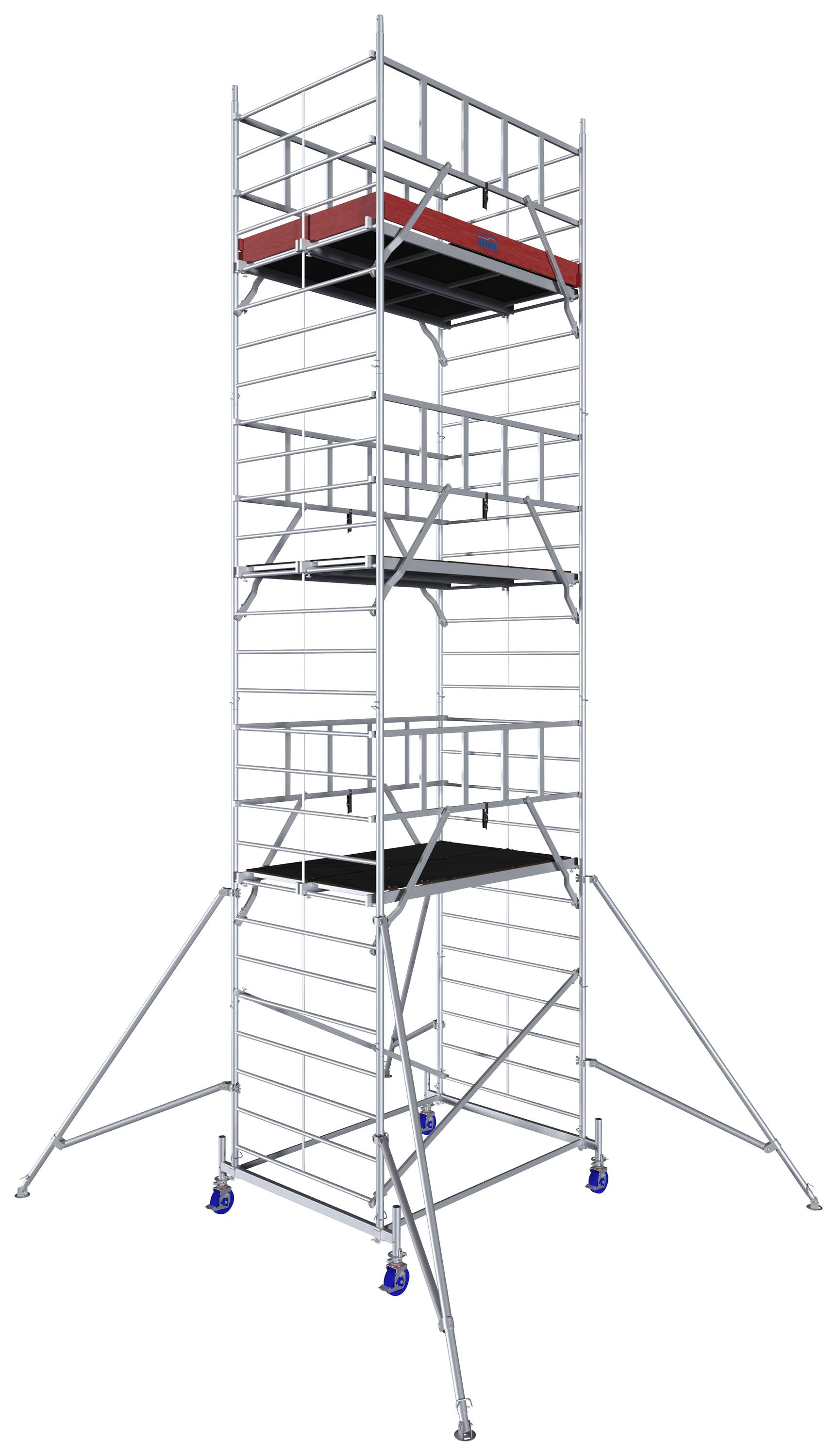

MONTO ProTec XXL Aluminum mast Wide structure, working height approx. 8.30 m.
- TUV-tested, load capacity 200 kg/m² according to DIN EN 1004-1

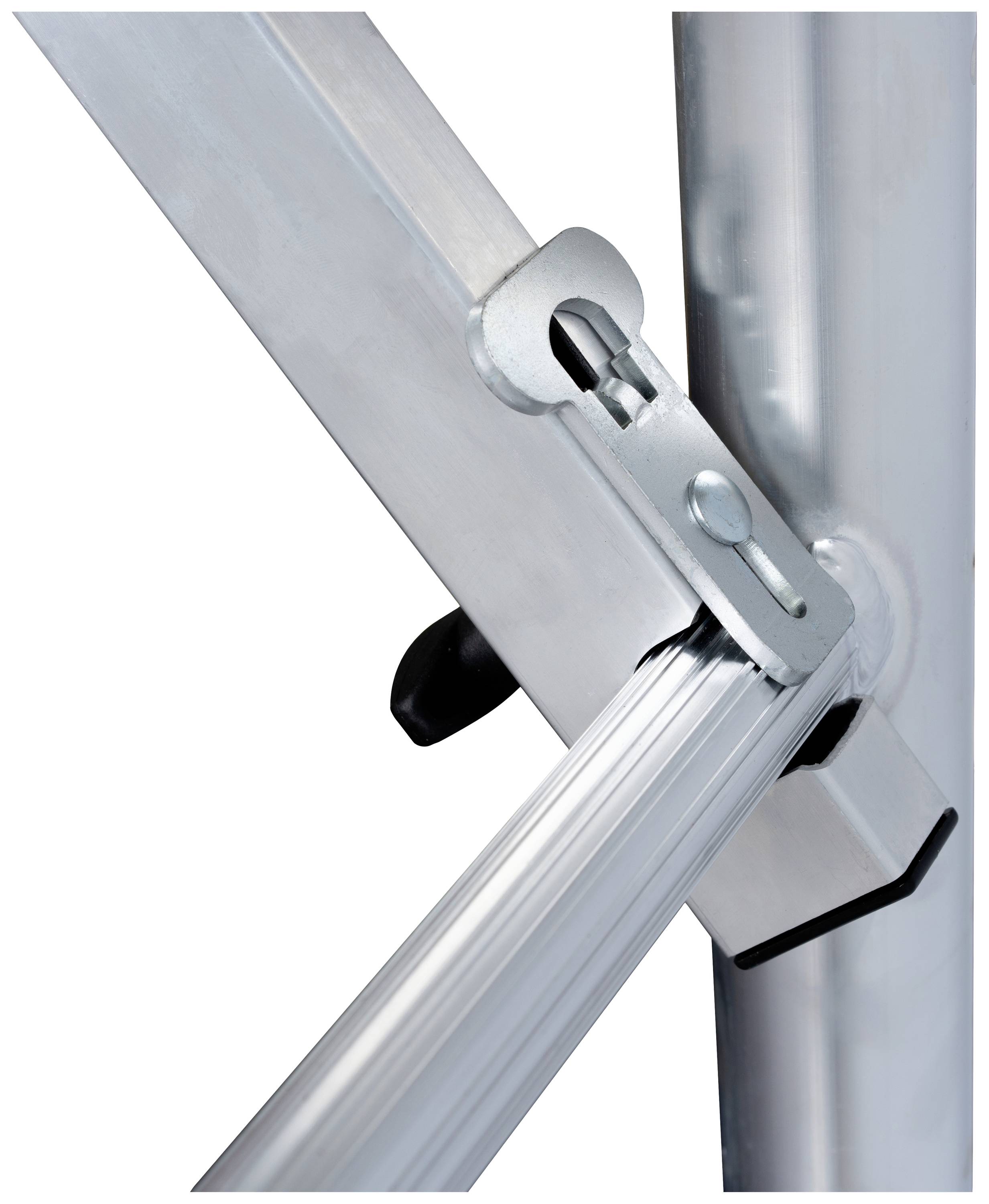

- The 6-point fixing of the GuardMatic system provides for maximum stability in the height of positive semi-automatic diagonal connections enable the simple, fast and safe setup
- The innovative shape of the diagonals offers a maximum usable surface on the surface stage and does not disturb in any way
- Maximum spacing of 2 m for comfortable and safe construction without auxiliary equipment
- Secure inner ascent through non-slip profiled rungs
- Two 1-meter vertical frames included in the delivery, which can be plugged together to form a 2-meter vertical frame, enable flexible construction
- Weatherproof and non-slip platforms with a working surface of 2.00 m x 1.20 m.
- Braked, height-adjustable castors to compensate for uneven ground surfaces
- Easy-to-install radial arms provide additional stability from a working height of 6.30 m.
- Optimum stability thanks to high-strength steel cross rail from a working height of 4.30 m.
Technical specifications
- Product type
Mobile scaffold
- Max. load
200 kg/m²
- Working height range
8.1 m - 9 m
- Factory colour
Silver
- Material
Aluminium
- Weight
237.90 kg
- No. of side arms
4
- Operating height (max.)
8.30 m
- Features
Mobile
- Platform width
2.00 m
- Platform depth
1.20 m
- Maximum height
6.30 m
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2521541 Krause 945150 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 8.30 m Silver 237.90 kg
Description
The massive ProTec XXL with extra large work surface for efficient working. The secure structure is ensured by the attachment of the GuardMatic system railing frame before the next higher lining stage is suspended. When climbing through the belagbühne, a complete railing and thus a fall protection is available. The integration of the diagonals in the GuardMatic system ensures a simple and safe installation. For transport or storage, the rail frame can be folded together to save space.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 4x Outlayer
