Technical specifications

Max. Adjusting speed: 0.08 s at 8.4 V.
Max. Actuating power: 6.5 kg at 6.0 V.
Motor type: Coreless
Servo gearing: Servo-specific
Set: No.

Product type: Mini servo

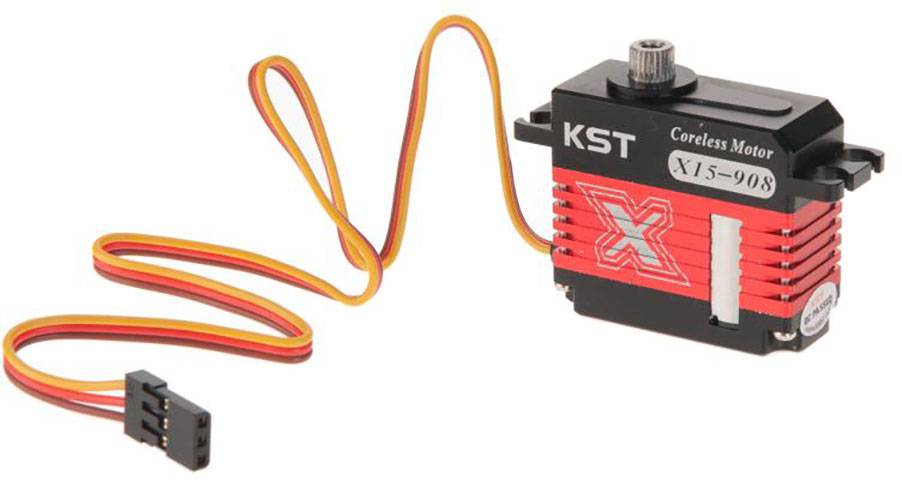

Model: KST Servo X15-908 Digital HV

Dim: (L x W x H) 35.5 x 15 x 32.5 mm

Length: 35.5 mm

Width: 15 mm

Height: 32.5 mm

Voltage: High

Weight: 40 g

Gear box: Metal

Type of bearing: Double ball bearing

Servo technology: Digital servo

Operating voltage: 8.4 V (max)

Max. operating voltage: 8.4 V

Manufacturer part #: X15-908

Description

KST Servo X15-908 Digital HV
Mini Servo
Drive: Metal
Max. Actuating power: 9.2 kg
Servo-size: Mini
digital servo –
for exact control commands Digital servos have a higher angular resolution compared to analogueue servos and the servo position is regulated faster and more precisely. They can also be programd frequently, allowing you to set the zero point and the speed, for example. In addition, a digital servo requires about 4 times more current than an analogueue servo.
