Kyoritsu KEW 6516BT Electrical tester VDE standard 0100-600, 0105-100
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,621.01 / piece)
€ 1,621.01
plus VAT.
Only 1 Piece(s) available
Highlights & Details

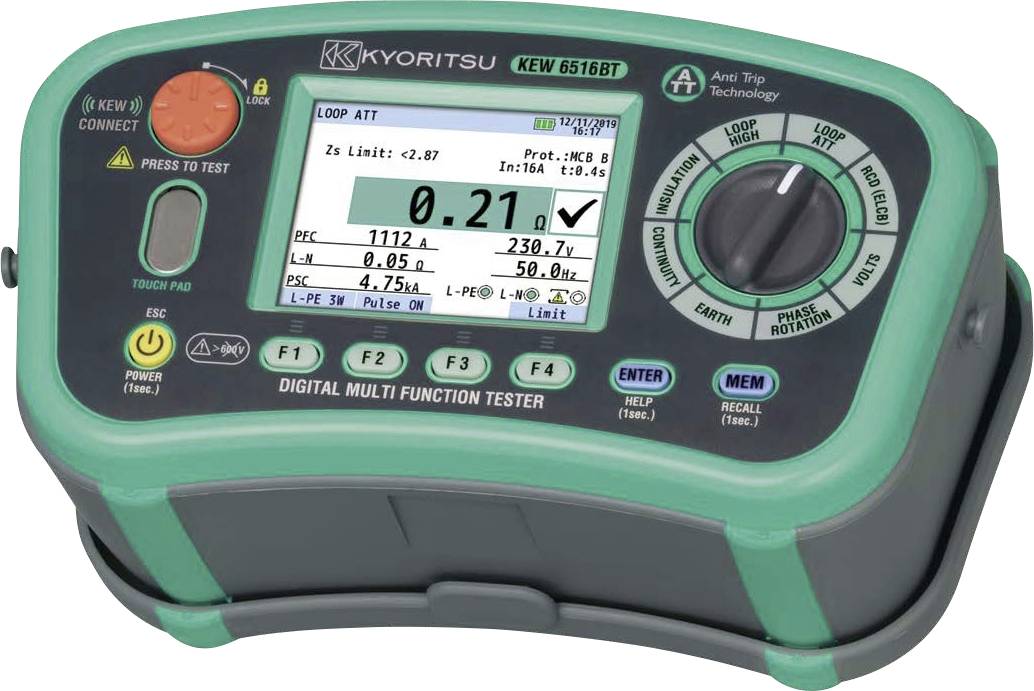

Kyoritsu KEW 6516BT multifunction tester Bluetooth
- 12 functions in 1
- Insulation
- Loop
- RCD
- PSC
- PFC
- Earthing
- ACV
- Continuity
- Phase rotation
- Frequency
- SPD (varistor)
- PAT
- Insulation measurement range 2/20/200/1000M/2000MOhm
- TEST VOLTAGE 100V/250V/500V/1000V
- Colour display LCD 3.5 inch dot matrix
- Communication interface USB
- Bluetooth
Technical specifications
- Indicator of direction of rotating field
- Earth resistance measurement (3-wire method)
- Voltage measurement up to 600 V.
- Product type
Electrical tester
Manufacturer's standards (no certificate)
- Reading category
CAT IV 300 V
CAT III 600 V
- Interfaces
Bluetooth®
USB
- Dim
(L x W x H) 114 x 235 x 151 mm
- Weight
1580 g
IP40
- DIN standard
DIN EN 61010-1
DIN EN 61557
- Display type
Digital (LCD)
- Accuracy
2
- Width
235 mm
- Height
151 mm
- Length
114 mm
- Test procedure
automated
- Voltage supply
Battery
Rechargeable
- Memory (space)
1000
- Type
KEW 6516BT
- VDE standard
0100-600
0105-100
Documents & Downloads
Datasheet
Datasheet 3642392 Kyoritsu KEW 6516BT Electrical tester VDE standard 0100-600, 0105-100
User & Safety Instructions
User & Safety Instructions 3642392 Kyoritsu KEW 6516BT Electrical tester VDE standard 0100-600, 0105-100
Description
Kyoritsu multifunction tester KEW 6516BT
This text is machine translated.
This text is machine translated.
Scope of delivery
- Test leads (7272)
- Network cable (7218)
- Remote test probe (7103A)
- Alligator clips
- Carrying case
- Software (KEW Report)
- 8 x AA batteries (LR6) or Ni-MH rechargeable batteries
- Calibration certificate
- Shoulder strap
