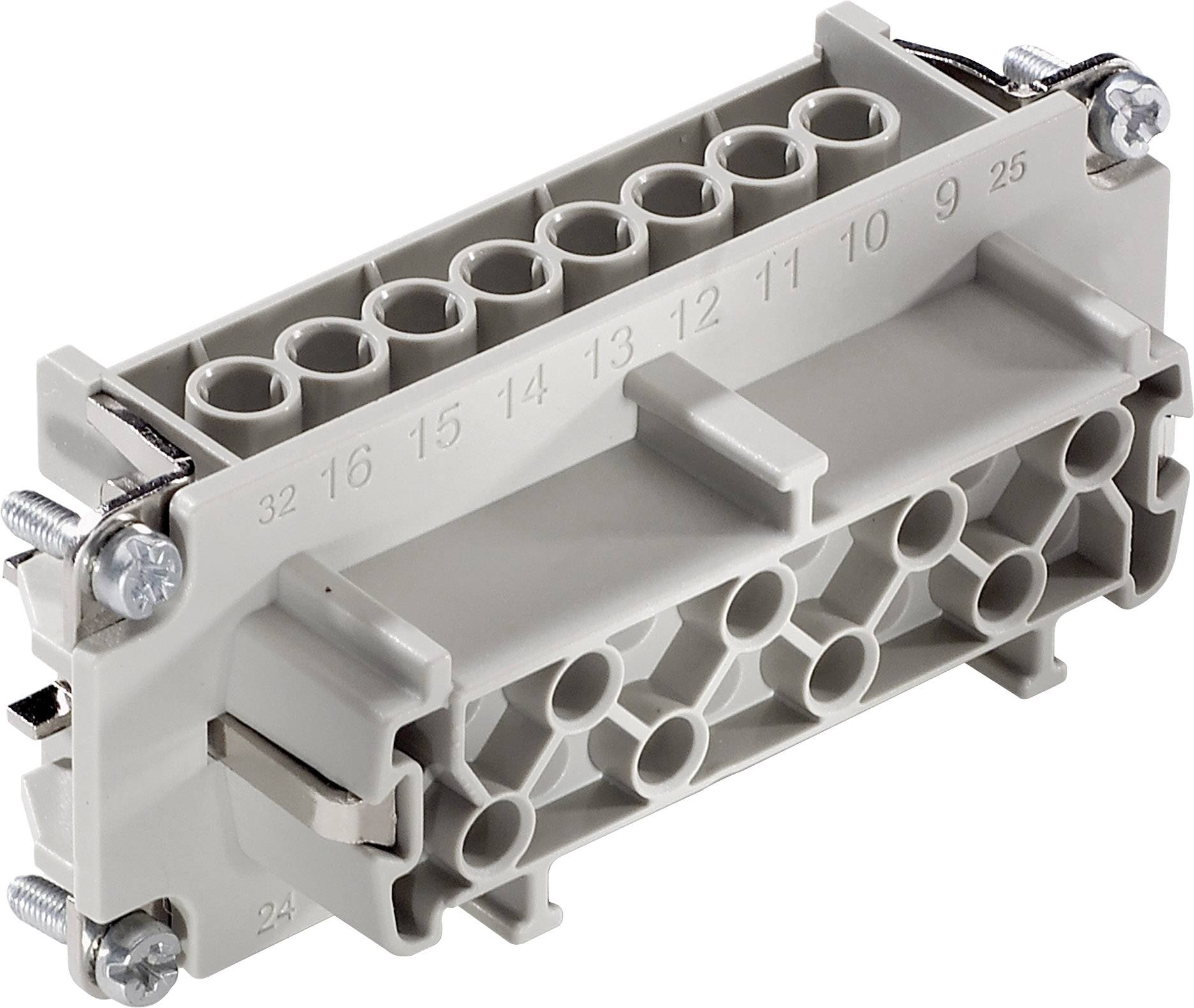

LAPP 10240010 Socket inset EPIC® H-BVE 6 Total number of pins 6 + 2 + PE 5 pc(s)
EAN:
Part number:
Item no:
Product type
Socket inset
Series
EPIC® H-BVE 6
Connection
Screws
Features
+ wire protection
Number of pins
6
2
Datasheet (PDF)
Technical specifications
- Product type
Socket inset
- Series
EPIC® H-BVE 6
- Features
+ wire protection
- Connection
Screws
- Number of pins
6
2
- Total no. of pins
6 + 2 + PE
- Core cross section (min.)
0.5 mm²
- Core cross section (max.)
2.5 mm²
- Rated surge voltage
6 kV
- Rated voltage
IEC: 630 V
UL: 600 V
CSA: 600 V
- Test current
IEC: 16 A
UL: 16 A
CSA: 16 A
- Content
5 pc(s)
- Leading contact (PE)
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1021517 LAPP 10240010 Socket inset EPIC® H-BVE 6 Total number of pins 6 + 2 + PE 5 pc(s)
User & Safety Instructions
User & Safety Instructions 1021517 LAPP 10240010 Socket inset EPIC® H-BVE 6 Total number of pins 6 + 2 + PE 5 pc(s)
Description
These high-voltage inserts are additionally equipped with 2 switching contacts; the pursuing switching contacts interrupt in the corresponding wiring the power supply, before the working contacts.
