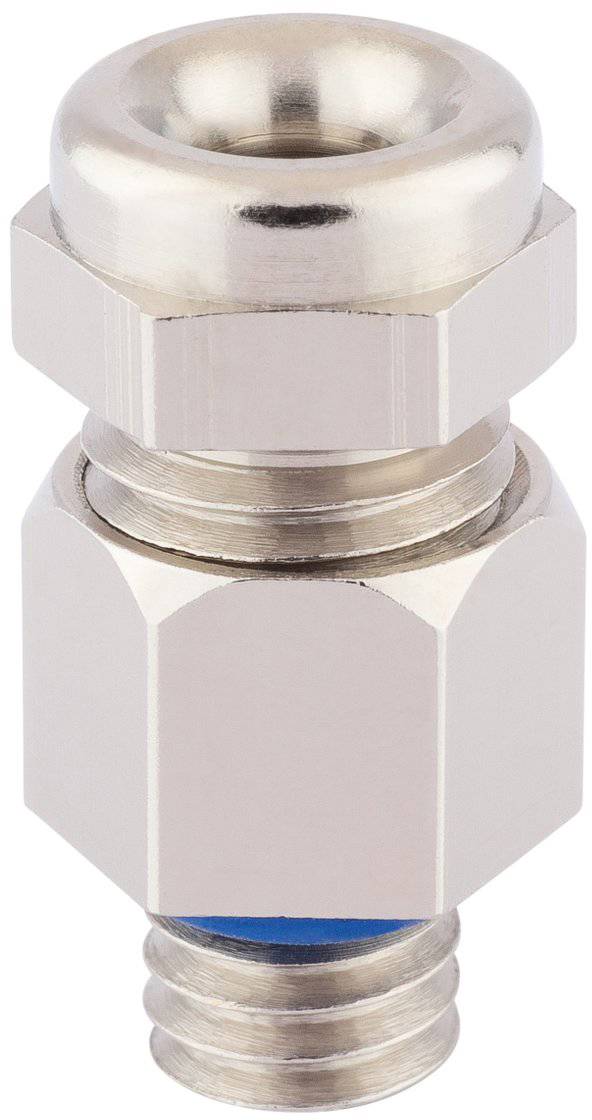

LAPP 52001878 Cable gland UV-resistant Brass (Ni-plated) 50 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
Material
Brass (Ni-plated)
Clamp Ø
3.5 mm
Terminal Ø (max.)
5.0 mm
Features
UV-resistant
Datasheet (PDF)
Technical specifications
- Product type
Cable gland
- Features
UV-resistant
- Material
Brass (Ni-plated)
- Clamp Ø
3.5 mm
- Terminal Ø (max.)
5.0 mm
- Spanner size
11 mm
- Halogen-free
Yes
- Content
50 pc(s)
- Manufacturer part #
52001878
- Type
SKINDICHT® MINI M8X1 COLD
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3521784 LAPP 52001878 Cable gland UV-resistant Brass (Ni-plated) 50 pc(s)
Datasheet 3521784 LAPP 52001878 Cable gland UV-resistant Brass (Ni-plated) 50 pc(s)
User & Safety Instructions
User & Safety Instructions 3521784 LAPP 52001878 Cable gland UV-resistant Brass (Ni-plated) 50 pc(s)
Description
SKINDICHT® MINI M8X1 COLD screwed cable gland; M 8; clamping area (min./max.): 3.5 - 5.0 mm; wrench width 1: 11; nickel plated brass; halogen-free; UV-resistant; IP 68 - 5 bar (30 min), IP 66
