LAPP 52001879 Cable gland UV-resistant M10 x 1 Brass (Ni-plated) 50 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
M10 x 1
Material
Brass (Ni-plated)
Clamp Ø
5.5 mm
Terminal Ø (max.)
7.0 mm
Datasheet (PDF)
Technical specifications
- Product type
Cable gland
- Features
UV-resistant
- External thread
M10 x 1
- Material
Brass (Ni-plated)
- Clamp Ø
5.5 mm
- Terminal Ø (max.)
7.0 mm
- Spanner size
14 mm
- Halogen-free
Yes
- Content
50 pc(s)
- Manufacturer part #
52001879
- Type
SKINDICHT® MINI M10X1 COLD
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3521782 LAPP 52001879 Cable gland UV-resistant M10 x 1 Brass (Ni-plated) 50 pc(s)
User & Safety Instructions
User & Safety Instructions 3521782 LAPP 52001879 Cable gland UV-resistant M10 x 1 Brass (Ni-plated) 50 pc(s)
Description

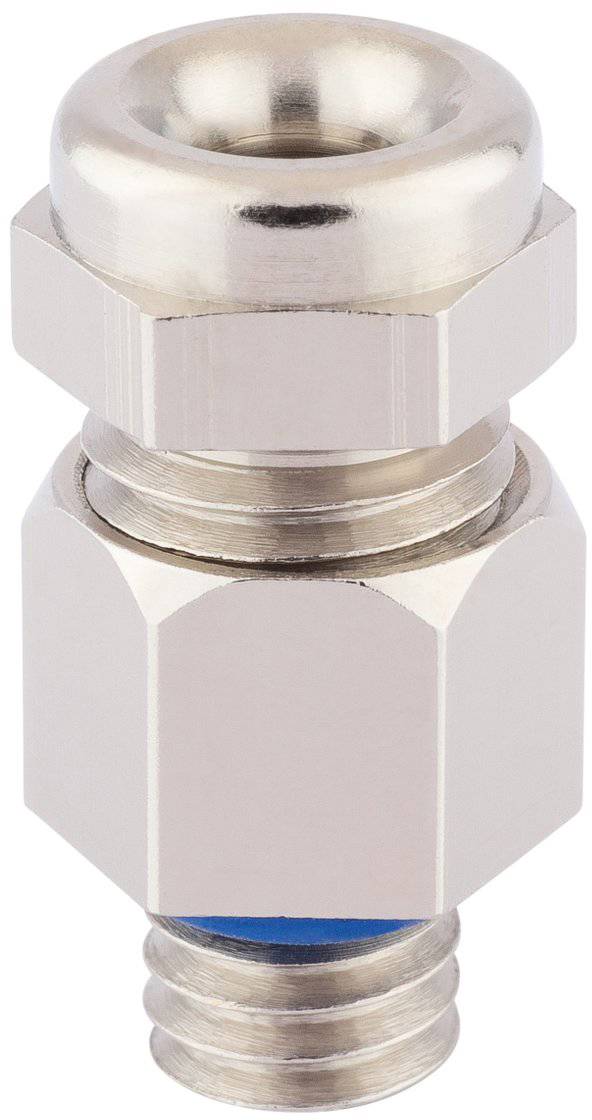

SKINDICHT® MINI M10X1 COLD screwed cable gland; M 10; clamping range (min./max.): 5.5 - 7.0 mm; key width 1: 14; nickel plated brass; halogen-free; UV-resistant; IP 68 - 5 bar (30 min), IP 66
