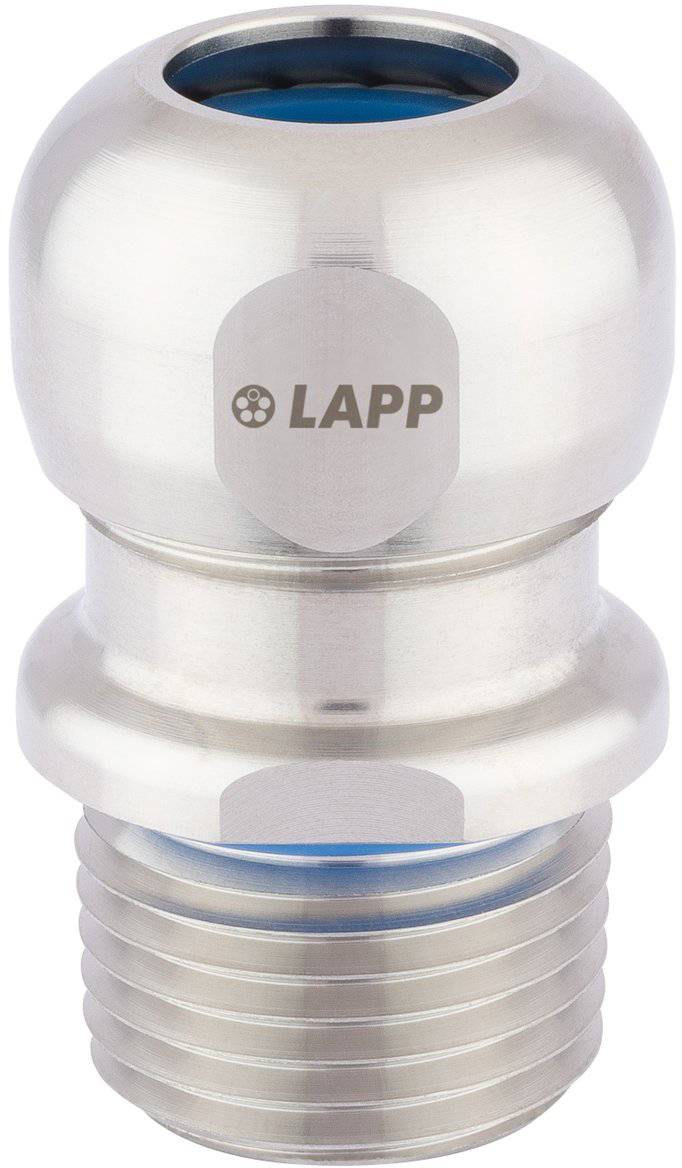

LAPP 53806783 Cable gland UV-resistant NPT 1 1/4" Stainless steel 5 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
NPT 1 1/4"
Material
Stainless steel
Clamp Ø
19 mm
Terminal Ø (max.)
28 mm
Datasheet (PDF)
Technical specifications
- Product type
Cable gland
- Features
UV-resistant
- External thread
NPT 1 1/4"
- Material
Stainless steel
- Clamp Ø
19 mm
- Terminal Ø (max.)
28 mm
- Spanner size
45 mm
- Halogen-free
Yes
- Content
5 pc(s)
- Manufacturer part #
53806783
- Type
SKINTOP® INOX NPT 1 1/4"
TRUE
45 mm
17 mm
TRUE
FALSE
Sealing ring
Other
NPT
FALSE
FALSE
FALSE
Documents & Downloads
Datasheet
Datasheet 3521845 LAPP 53806783 Cable gland UV-resistant NPT 1 1/4" Stainless steel 5 pc(s)
User & Safety Instructions
User & Safety Instructions 3521845 LAPP 53806783 Cable gland UV-resistant NPT 1 1/4" Stainless steel 5 pc(s)
Description
SKINTOP® INOX NPT 1 1/4" cable gland; NPT 1 1/4"; clamping range (min./max.): 19 - 28 mm; key width 1: 45; halogen-free; UV-resistant; IP 69, IP 68 – 5 bar (30 min);
