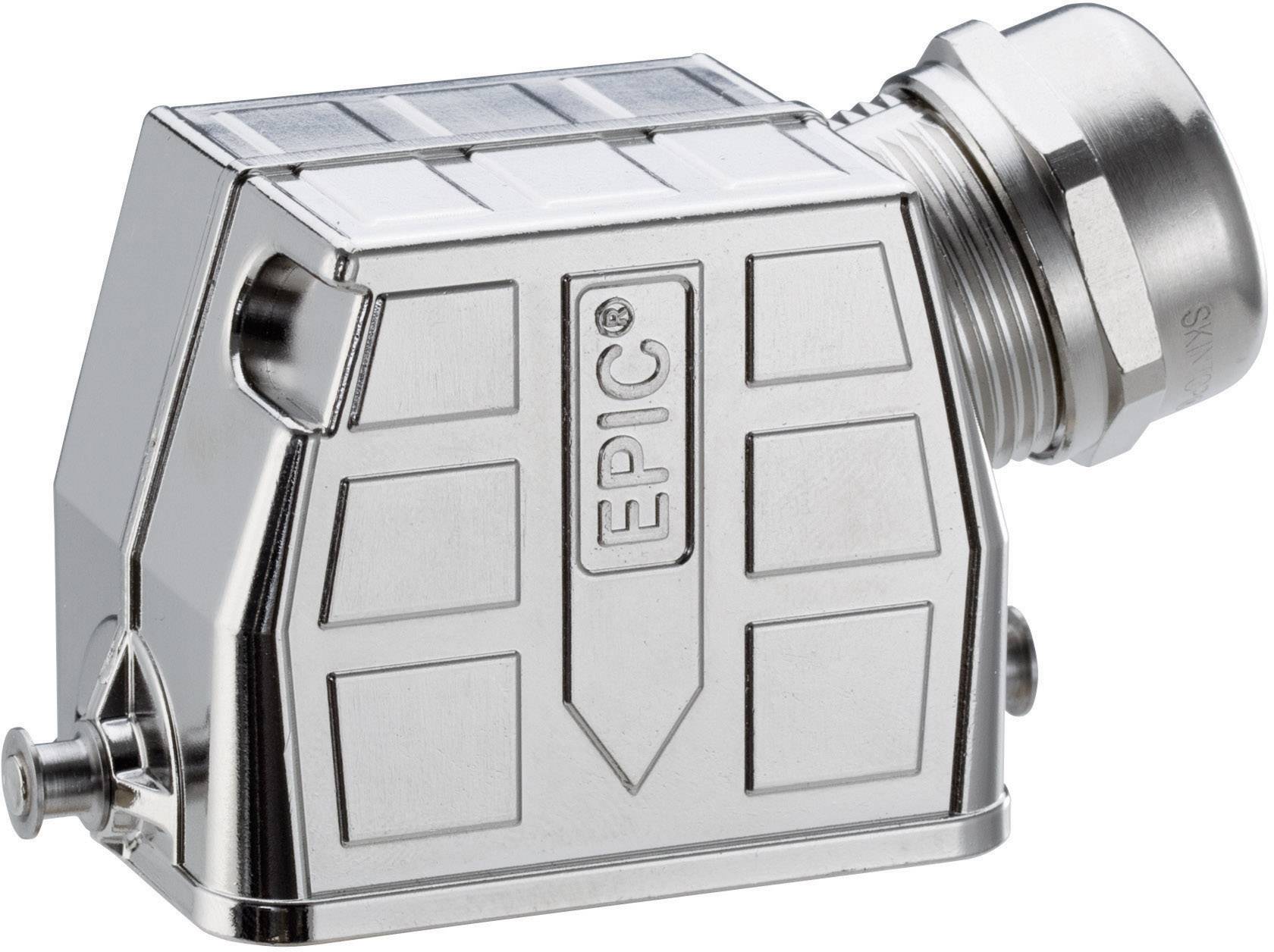

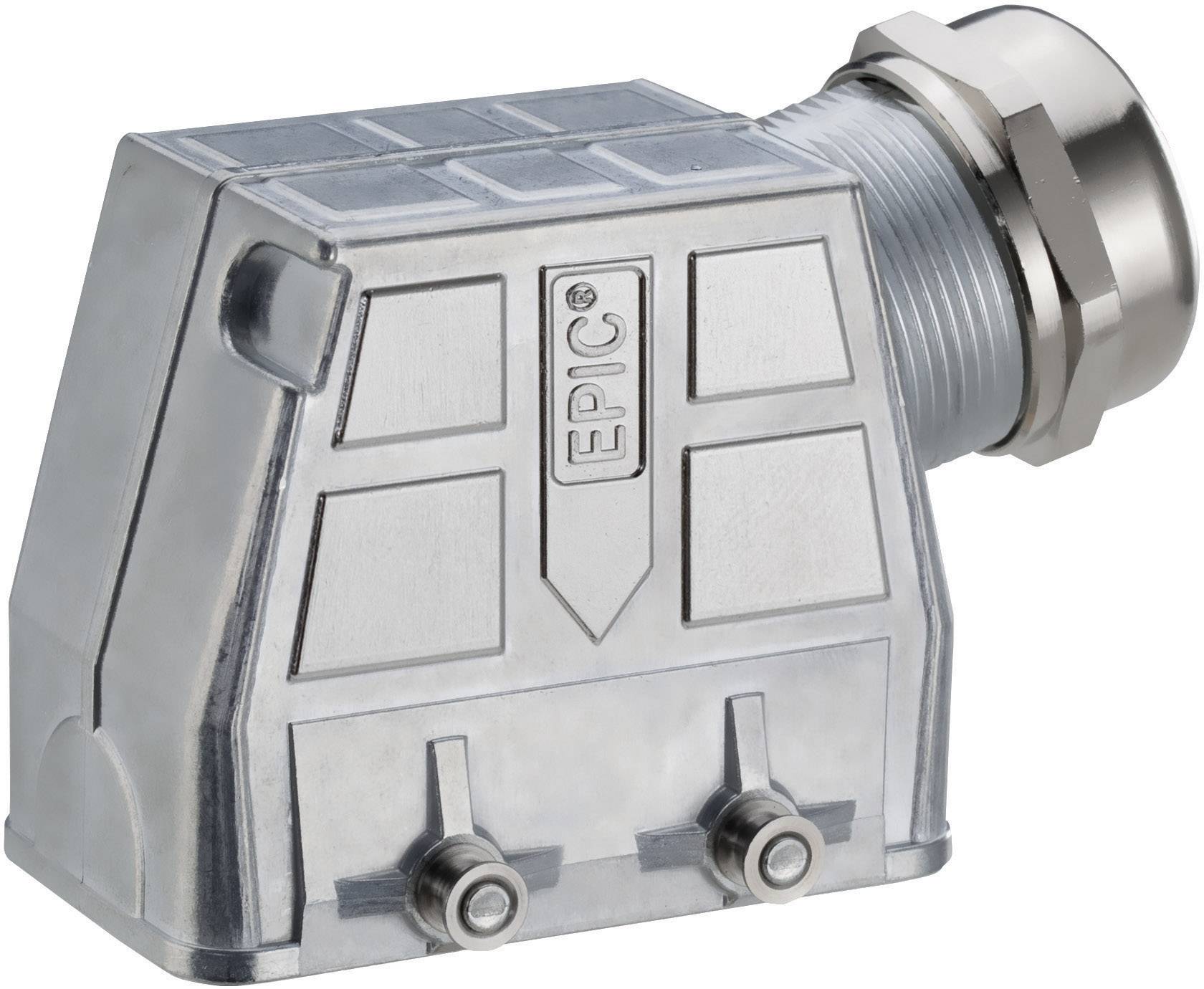

LAPP 70250210 Bush enclosure EPIC® Ultra H-B 10 1 pc(s)
EAN:
Part number:
Item no:
Product type
Bush enclosure
Series
EPIC® Ultra H-B 10
Case material
Diecast zinc
Type
EPIC ULTRA H-B 10 TS QB 7-15 (1)
Manufacturer part #
70250210
Datasheet (PDF)
Technical specifications
- Type
EPIC ULTRA H-B 10 TS QB 7-15 (1)
- Product type
Bush enclosure
- Series
EPIC® Ultra H-B 10
- Manufacturer part #
70250210
- Features
Cable input (lateral)
Transverse brace pin
+ screws
- Case material
Diecast zinc
- Factory colour
Silver
IP65
- Content
1 pc(s)
- Terminal Ø (max.)
15 mm
- Clamp Ø
7 mm
- Max. temperature
+100 °C
- Min. temperature
-40 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1021921 LAPP 70250210 Bush enclosure EPIC® Ultra H-B 10 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1021921 LAPP 70250210 Bush enclosure EPIC® Ultra H-B 10 1 pc(s)
Description
Application range:
In EMC-sensitive environments
For fixed and flexible applications (e.g. machinery building, wind turbines)
Construction machinery
Electric motor manufacturing
Benefit:s
Optimum, low-resistance 360° screening
All-purpose due to high corrosion resistance and high environmental protection.
Space-saving due to compact dimensions
Faster than any other comparable system
High mechanical resistance
Product features:
Housings with the BRUSH addition come with BRUSH cable screen contacting
Pluggable with standard housings
Corrosion-resistant according to DIN EN 6988
Resistance to cyclic salt spray is tested according to IEC 68-2-52, severity level 2
In EMC-sensitive environments
For fixed and flexible applications (e.g. machinery building, wind turbines)
Construction machinery
Electric motor manufacturing
Benefit:s
Optimum, low-resistance 360° screening
All-purpose due to high corrosion resistance and high environmental protection.
Space-saving due to compact dimensions
Faster than any other comparable system
High mechanical resistance
Product features:
Housings with the BRUSH addition come with BRUSH cable screen contacting
Pluggable with standard housings
Corrosion-resistant according to DIN EN 6988
Resistance to cyclic salt spray is tested according to IEC 68-2-52, severity level 2
