Laserfuchs Plumb dot laser Elliptical 1 mW 70150964
Product type
Plumb dot laser
Emission characteristics
Elliptical
Wavelength
520 nm
Power
1 mW
(Ø)
19 mm
EAN:
Part number:
Item no:
Highlights & Details
Point laser, green, 520nm, 1mW, laser class 2, Focus 5m, 3V DC, 19x19 86mm, battery operation
- Laser category: 2
- Emission characteristics: Elliptical
Technical specifications
- Material: Aluminium
- Optical power 1 mW
- Lifetime 3,000 h
- Operating temperature: - 20 °C to 50 °C
- Storage temperature: -20°C to 60 °C.
- Beam form: Point
- Class 2 laser
- Divergent: H - 1.0 mrad
- 5 m operating distance
- Acrylic lens
- Laser technology: Single mode diode
- Focus: Fixed (5.0m)
- Potential of the enclosure: VDD(+)
- Outlet diameter of optical 6 mm
- Product type
Plumb dot laser
- Type
70150964
- Emission characteristics
Elliptical
- Focus properties
Fixed-focus
- Wavelength
520 nm
1 mW
- (Ø)
19 mm
- Length
86 mm
- Laser category
2
- Beam divergence
1.0 mrad
- Clearance
5 m
- Operating voltage
3 V DC
- Operating current
50 mA
- Material
Aluminium
- Dim
(Ø x H) 19 mm x 86 mm
- Weight
25 g
- RoHS-compliant
Yes
- Width
19 mm
- Height
86 mm
- Max. temperature
50 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987373 Laserfuchs Plumb dot laser Elliptical 1 mW 70150964
Information
Information 2987373 Laserfuchs Plumb dot laser Elliptical 1 mW 70150964
Conformity certificate
Conformity certificate 2987373 Laserfuchs Plumb dot laser Elliptical 1 mW 70150964
Description
Features
- Point laser, green, 520nm, 1mW, laser class 2, Focus 5m, 3V DC, 19x19 86mm, battery operation
- The type LFD520-1-3(19x86) is a point laser for projection of a green laser point. The laser module emits radiation of the 520nm wavelength. The module uses a type CR123A battery, included. With this, a wireless operation is possible over several hours. The laser has a compact design (19x86mm). This point laser is used for example in component positioning, leveling systems, laser marking systems, in industry, trade, Hobby and the show area. Typical usage areas are low-cost applications. This module falls into the laser class 2.

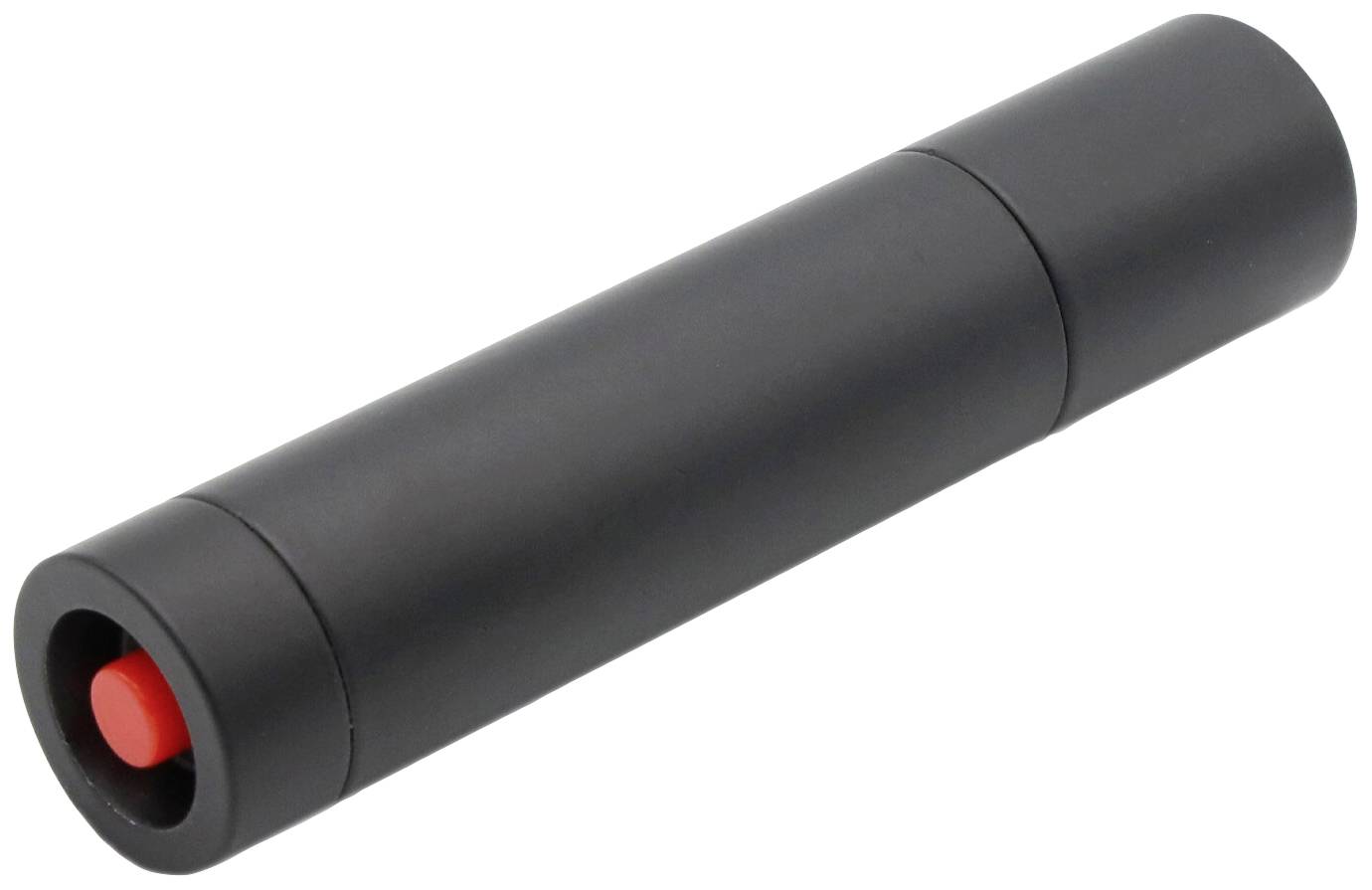

- Latch switch: Press the switch at the end of the laser module once and the laser is permanently switched on. Repeated operation switches off the laser again.
- Radiation characteristic: Elliptical point, point size 3..4mm@5m
- Optical power 1mW (laser class 2)
- Focus 5 m
- Compact design: 19x86mm
- Axle deviation: Up to 3.0°
- For applications in e.g. laser spirit levels, laser marking systems, robotics, industry, trade, Hobby and the show area.
- Power supply 3V.

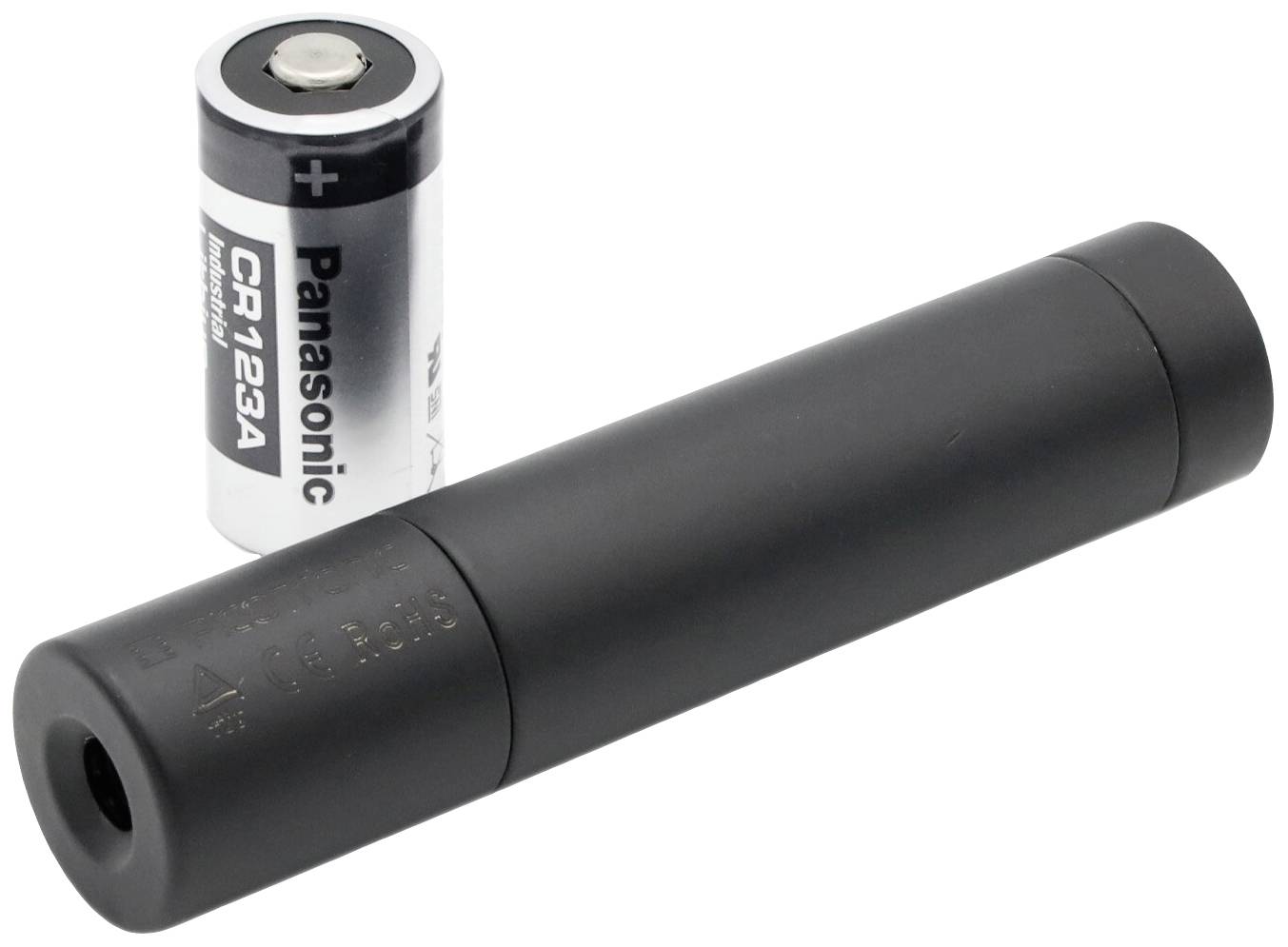

- Delivery includes a CR123A type battery.
- This text is machine translated.
