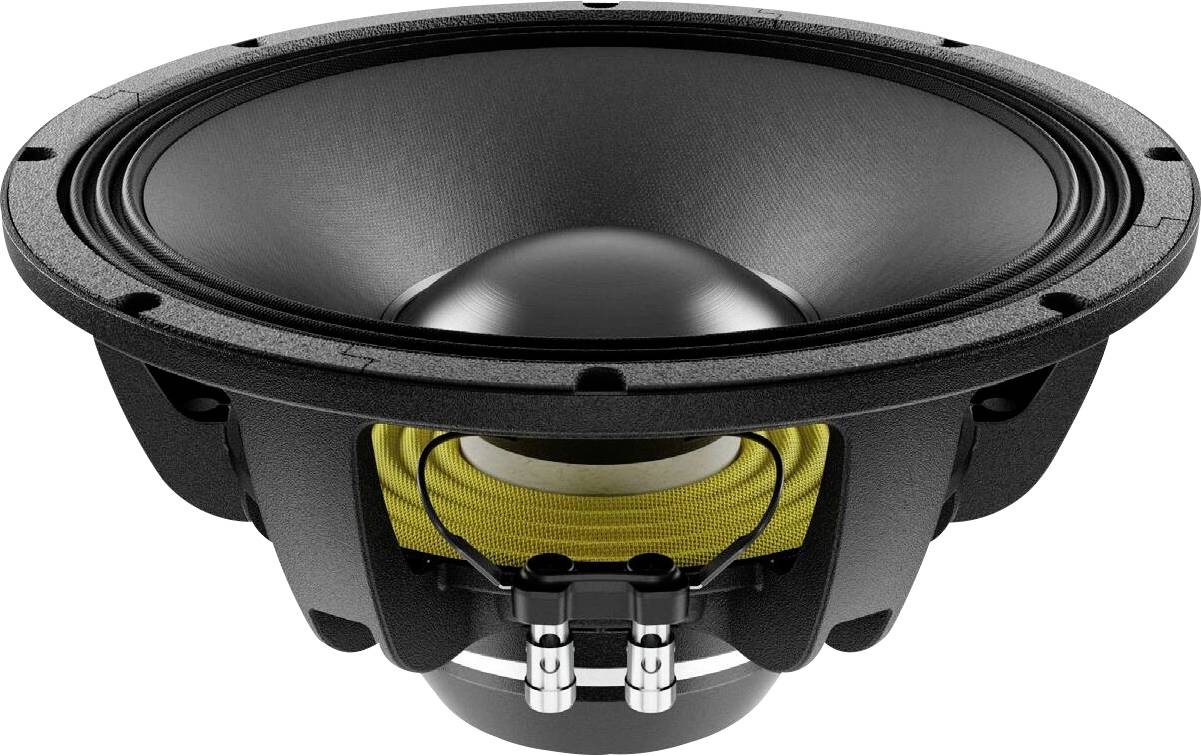

A close-up of a black speaker cone with a yellow suspension inside a circular housing, highlighting the speaker's structure and design.

A close-up of a black speaker cone with a yellow suspension inside a circular housing, highlighting the speaker's structure and design.

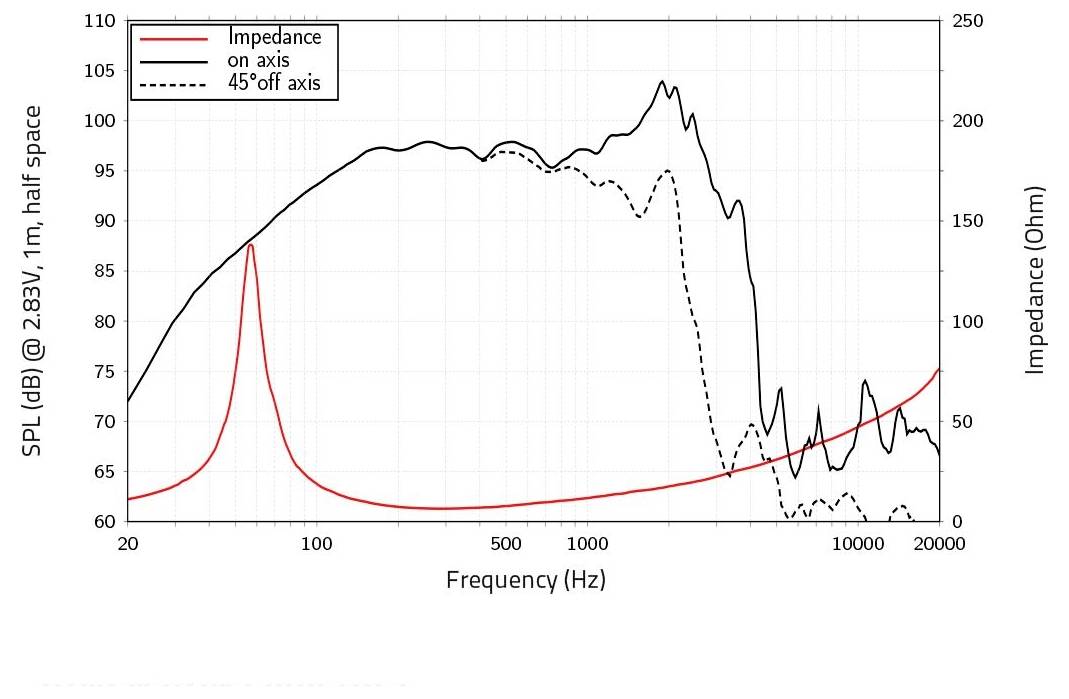

The graph shows speaker SPL (in dB) and impedance (in Ohm) versus frequency (Hz). It includes 'on axis' and '45° off axis' sound levels.

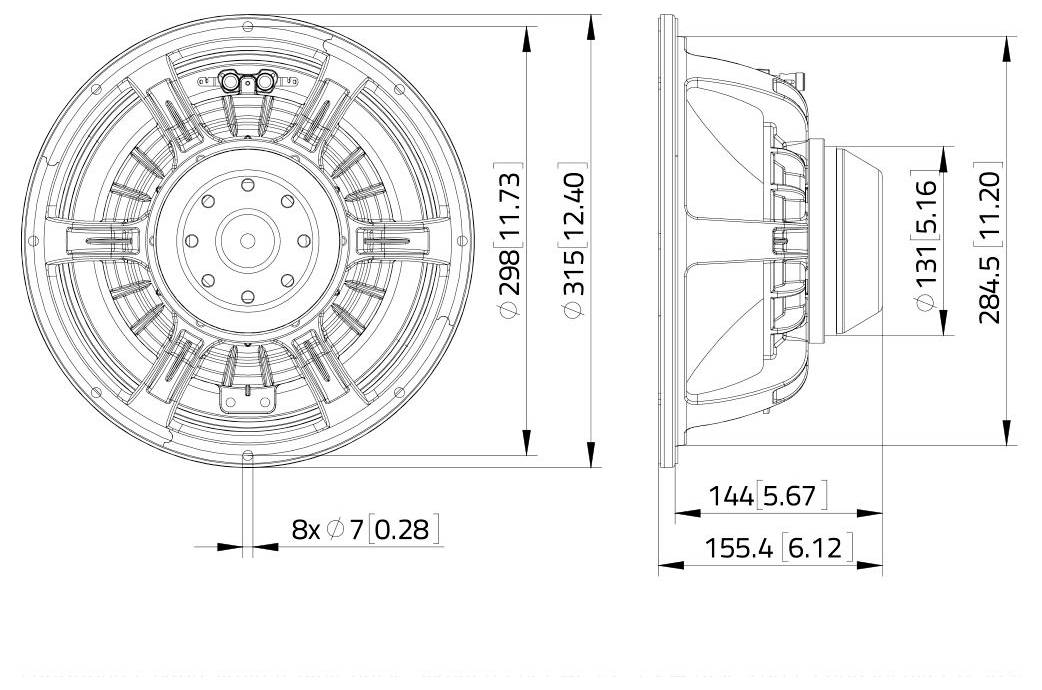

Technical diagram of a speaker showing front and side views with measurements. Front view diameter: 315 mm (12.40 inches). Side depth: 155.4 mm (6.12 inches).

1/3

Lavoce

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Loudspeaker: 12" woofer with neodymium magnet; basket material: Aluminium; cone material: Cardboard/paper; 3" moving coil woofer
Rating 500 W RMS
Frequency range 40 2000 Hz
Sensitivity 99 dB

Product type: Subwoofer

Speaker size (inch): 12 inch

RMS capacity: 500 W

Max. load: 500 W

Min. frequency: 40 Hz

Max. frequency: 2000 Hz

Impedance: 8 Ω

Sound pressure: 99 dB

Weight: 4.90 kg

Frequency range: 40 Hz - 2000 Hz

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729635 Lavoce WAN123.01 12 inch Subwoofer 500 W 8 Ω

Description

500 W RMS, 8 ohm, 99 dB, 40 - 2000 Hz. You can find more information on this product under "Downloads" in the data sheet.

This text is machine translated.

Scope of delivery

1 x speaker

Related products can be found here

Audio Adapters, Couplers & Splitters AV Connectors Stage Audio Adapters Speaker Covers Speaker Insulation Bass Reflex Tubes Earphones Outdoor Wear & Accessories Crossovers Audio Cables Tweeters Radios XLR Cables Speaker Assembly Accessories Speaker Terminals

Description

500 W RMS, 8 ohm, 99 dB, 40 - 2000 Hz. You can find more information on this product under "Downloads" in the data sheet.

This text is machine translated.

Scope of delivery

1 x speaker
