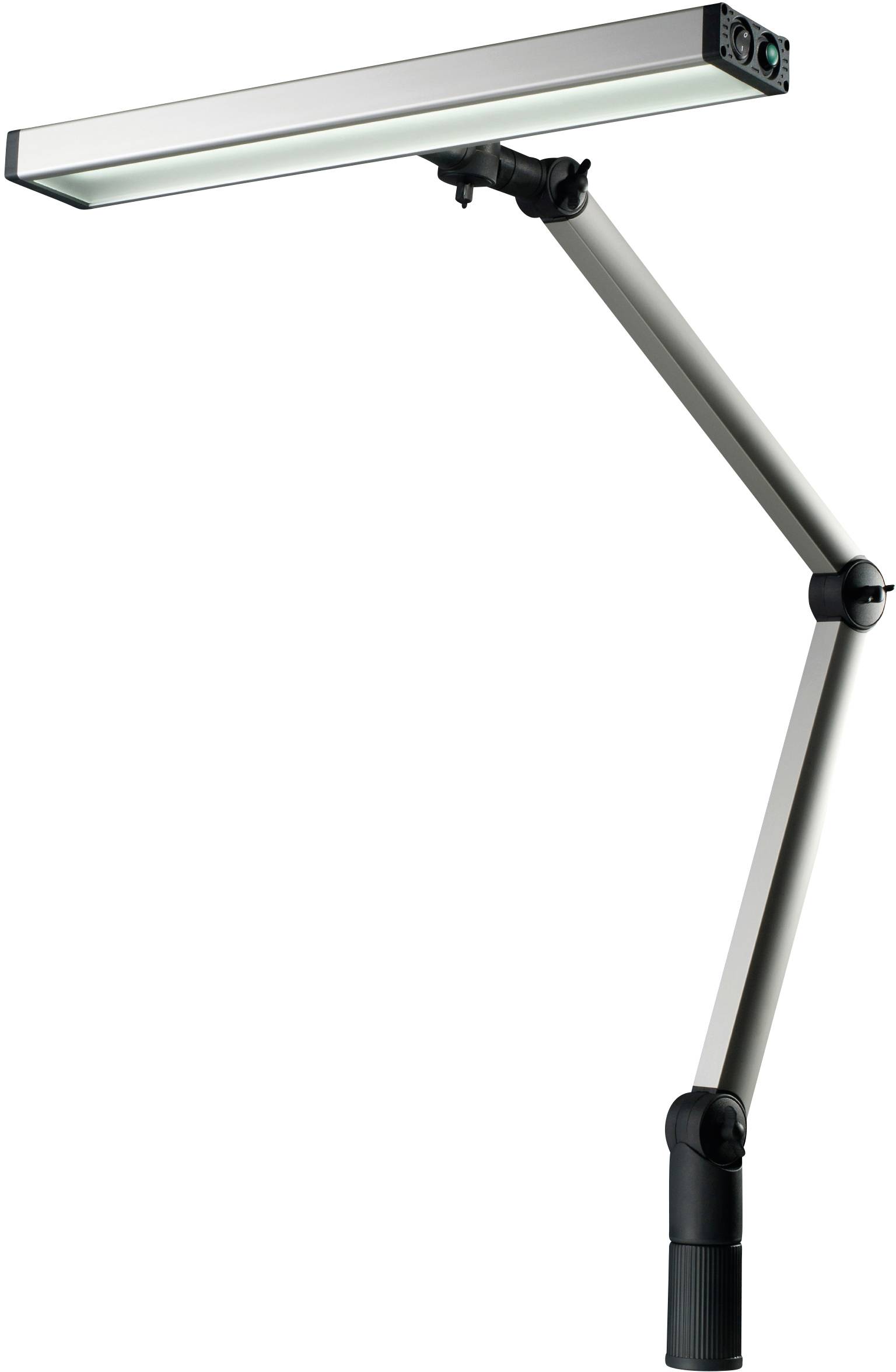

LED2WORK Articulated arm light 120710-01 31 W 2565 lm 100 ° 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
LED2WORK 120710-01 Pivot arm lamp 1 pc
- Power= 31 W
- Luminous flux (phi)= 2565 lm
Technical specifications
- Mounting: Table clamp
- Equipped with 84 SMD LEDs
- Operating device: Plug-in power supply
- Glare: Makrolon opal white
- Color rendering (Ra): RA>85
- Weight (net): 2.5 kg
- Lifetime > : 60,000 operating hours
- Light output: Approx. 82 lm/W.
- Light distribution: Direct / direct
- Mains connection: CEE 7/16, 3m 3M cable
- Variant/version: Not dimmable
- Product type
Articulated arm light
- Type
120710-01
- Min. operating voltage
90 V AC
- Max. operating voltage
264 V AC
- Operating voltage
90 - 264 V AC
31 W
- Min. colour temperature
5200 K
- Colour temperature (max.)
5700 K
- Luminous flux (Φ)
2565 lm
- Radiation angle
100°
- LEDs
84
- Connection
Cable + connector
- Material
Aluminium
IP40
- Protection class
I
- Min. temperature
-10 °C
- Max. temperature
+40 °C
n.rel.
- Light bulb included
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2258667 LED2WORK Articulated arm light 120710-01 31 W 2565 lm 100 ° 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2258667 LED2WORK Articulated arm light 120710-01 31 W 2565 lm 100 ° 1 pc(s)
Description
UNILED II
Ergonomic, efficient, 2 light colors
The articulated arm lamp UNILED II is the consistent further development of the predecessor UNILED and also universally equipped:
A high-quality aluminum spring arm, 2 different light colors and power strengths as well as a continuous, flicker-free dimming are the quality characteristics of this lamp.
With a luminosity of up to 4000 lx at a distance of 50 cm, the LED-lamp sets every work place in the right light and proves to be 1. Choice for demanding visual tasks.
APPLICATION AREAS
Assembly and control workstations
Manual workstations
Goldsmiths and watchmakers workshops
Dentallabor
YOUR BENEFITS
Homogeneous, shadow and glare-free illumination of the workplace with max. >4000 lx
Variants with two light colors - warm white and daylight white
Excellent ergonomic handling - lamp can be freely positioned by aluminum spring arm and 3D ball joint
Variant with continuous dimming and memory function
Versatile mounting options
This text is machine translated.
Ergonomic, efficient, 2 light colors
The articulated arm lamp UNILED II is the consistent further development of the predecessor UNILED and also universally equipped:
A high-quality aluminum spring arm, 2 different light colors and power strengths as well as a continuous, flicker-free dimming are the quality characteristics of this lamp.
With a luminosity of up to 4000 lx at a distance of 50 cm, the LED-lamp sets every work place in the right light and proves to be 1. Choice for demanding visual tasks.
APPLICATION AREAS
Assembly and control workstations
Manual workstations
Goldsmiths and watchmakers workshops
Dentallabor
YOUR BENEFITS
Homogeneous, shadow and glare-free illumination of the workplace with max. >4000 lx
Variants with two light colors - warm white and daylight white
Excellent ergonomic handling - lamp can be freely positioned by aluminum spring arm and 3D ball joint
Variant with continuous dimming and memory function
Versatile mounting options
This text is machine translated.
