LED2WORK Articulated arm light UNILED II 19 W 2139 lm 100 ° 24 V DC 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
LED2WORK UNILED II, articulated arm 400+250mm, light width 380mm, 100° ~19W, 100-240V AC
- Power= 19 W
- Luminous flux (phi)= 2139 lm
Technical specifications
- Model: UNILED II articulated arm
- Design: LED hinged arm lamp
- Lamp: SMD LED
- Luminous efficacy 131 lm/W
- Light distribution: Direct
- Light connection: M12 sensor plug A-coded
- Color reproduction (Ra): > 85
- Lamp life > 60,000 h
- Material casing: Aluminum / plastic
- Material cover: Makrolon
- Weight approx. 1900 g
- Risk group: Free group

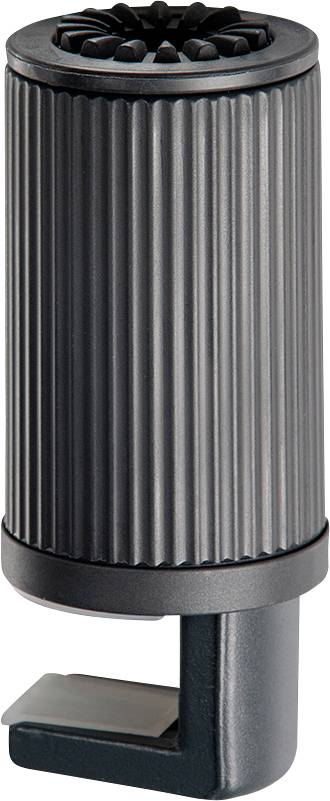

- Mounting accessories: Table clamp included
- Dimmable: Optional via accessories
- Special feature: Middle lamp head width and shortened front arm
- Fade-out: opal white
- Operating device: Power supply 100-240V AC incl.

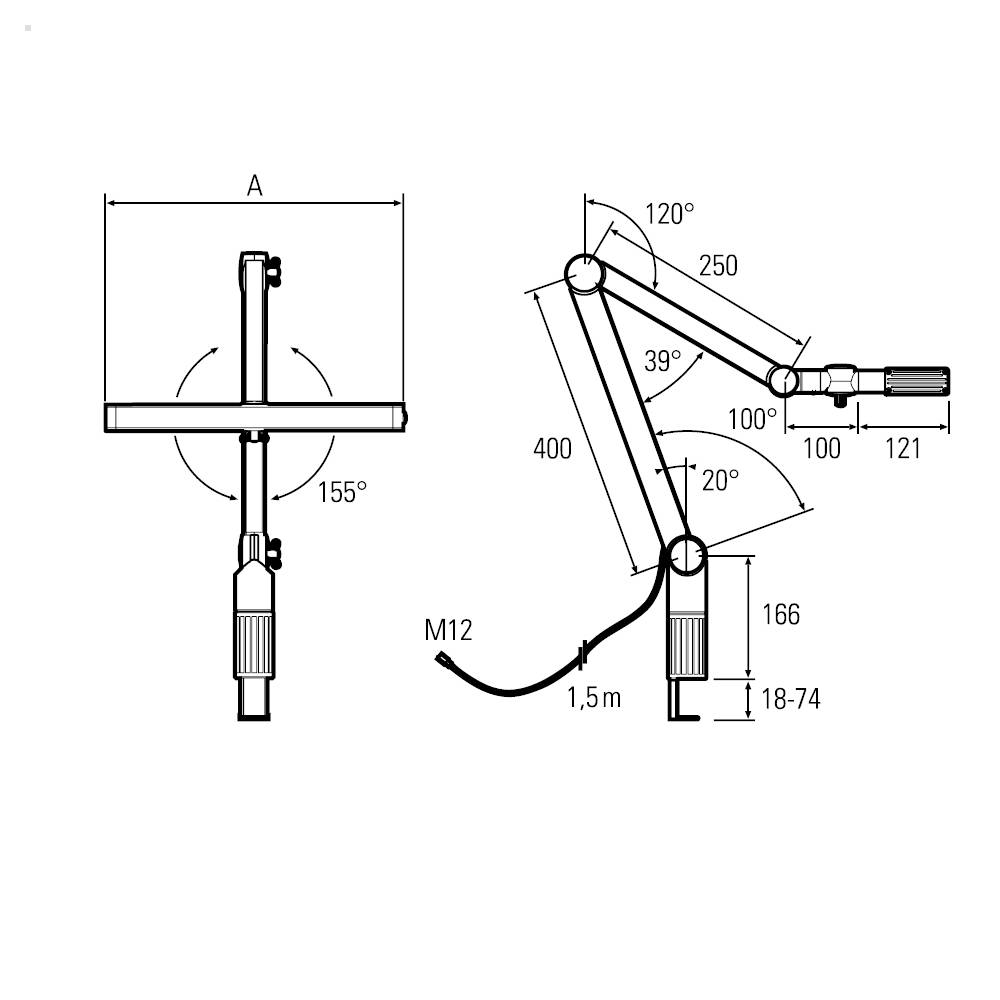

- Length of articulated arms: 1x 400 mm, 1x 250 mm
- Connected load power supply 110-240V AC
- Power supply connection: EURO plug to M12 plug connector
- Length of head [A]: 380 mm
- Product type
Articulated arm light
- Type
UNILED II
- LED features
dimmable
- Operating voltage
24 V DC
19 W
- Min. colour temperature
5200 K
- Colour temperature (max.)
5700 K
- Luminous flux (Φ)
2139 lm
- Radiation angle
100°
- Lead length
3 m
- Connection
M12 plug
- Material
Aluminium
Plastic
IP40
- Protection class
III
- Min. temperature
-10 °C
- Max. temperature
+60 °C
n.rel.
- Light bulb included
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2383282 LED2WORK Articulated arm light UNILED II 19 W 2139 lm 100 ° 24 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2383282 LED2WORK Articulated arm light UNILED II 19 W 2139 lm 100 ° 24 V DC 1 pc(s)
Description
LED articulated arm light
UNILED II
Ergonomic, efficient, 2 light colors
The articulated arm lamp UNILED II is the consistent further development of the predecessor UNILED and also universally equipped: A high-quality aluminum spring arm, 2 different light colors and power strengths as well as a continuous, flicker-free dimming are the quality characteristics of this lamp. With a luminosity of up to 4000 lx at a distance of 50 cm, the LED-lamp sets every work place in the right light and proves to be 1. Choice for demanding visual tasks.
Benefits:
Homogeneous, shadow and glare-free illumination of the workplace with max. >4000 lx
Variants with two light colors - warm white and daylight white
Excellent ergonomic handling - lamp can be freely positioned by aluminum spring arm and 3D ball joint
Variant with continuous dimming and memory function
Versatile mounting options
Application areas:
Assembly and control workstations
Manual workstations
Goldsmiths and watchmakers workshops
Dentallabor
This text is machine translated.
UNILED II
Ergonomic, efficient, 2 light colors
The articulated arm lamp UNILED II is the consistent further development of the predecessor UNILED and also universally equipped: A high-quality aluminum spring arm, 2 different light colors and power strengths as well as a continuous, flicker-free dimming are the quality characteristics of this lamp. With a luminosity of up to 4000 lx at a distance of 50 cm, the LED-lamp sets every work place in the right light and proves to be 1. Choice for demanding visual tasks.
Benefits:
Homogeneous, shadow and glare-free illumination of the workplace with max. >4000 lx
Variants with two light colors - warm white and daylight white
Excellent ergonomic handling - lamp can be freely positioned by aluminum spring arm and 3D ball joint
Variant with continuous dimming and memory function
Versatile mounting options
Application areas:
Assembly and control workstations
Manual workstations
Goldsmiths and watchmakers workshops
Dentallabor
