LED2WORK Connection cable 200100-11 24 V DC Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Connection cable
Operating voltage
24 V DC
Energy efficiency rating
n.rel.
Type
200100-11
Datasheet (PDF)
Technical specifications
- Model: LED2WORK sensor cable 0.34 mm², for 24V DC
- Design: Sensor cable, PUR, black
- Weight: 300 g
- Suitable for: LED2WORK RGB and RGB-W lamps 24V DC

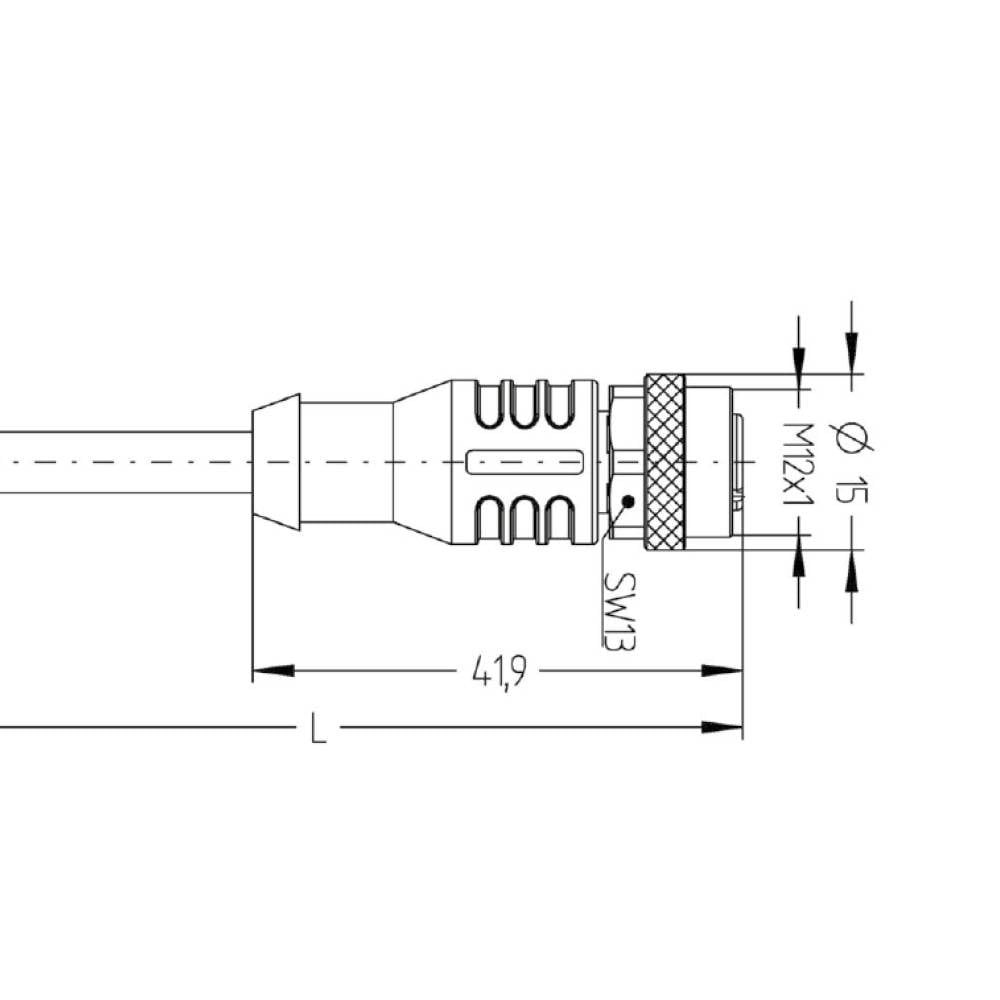

- Mounting on lamp: Plug connector M12 socket, straight
- Cable length 10 m

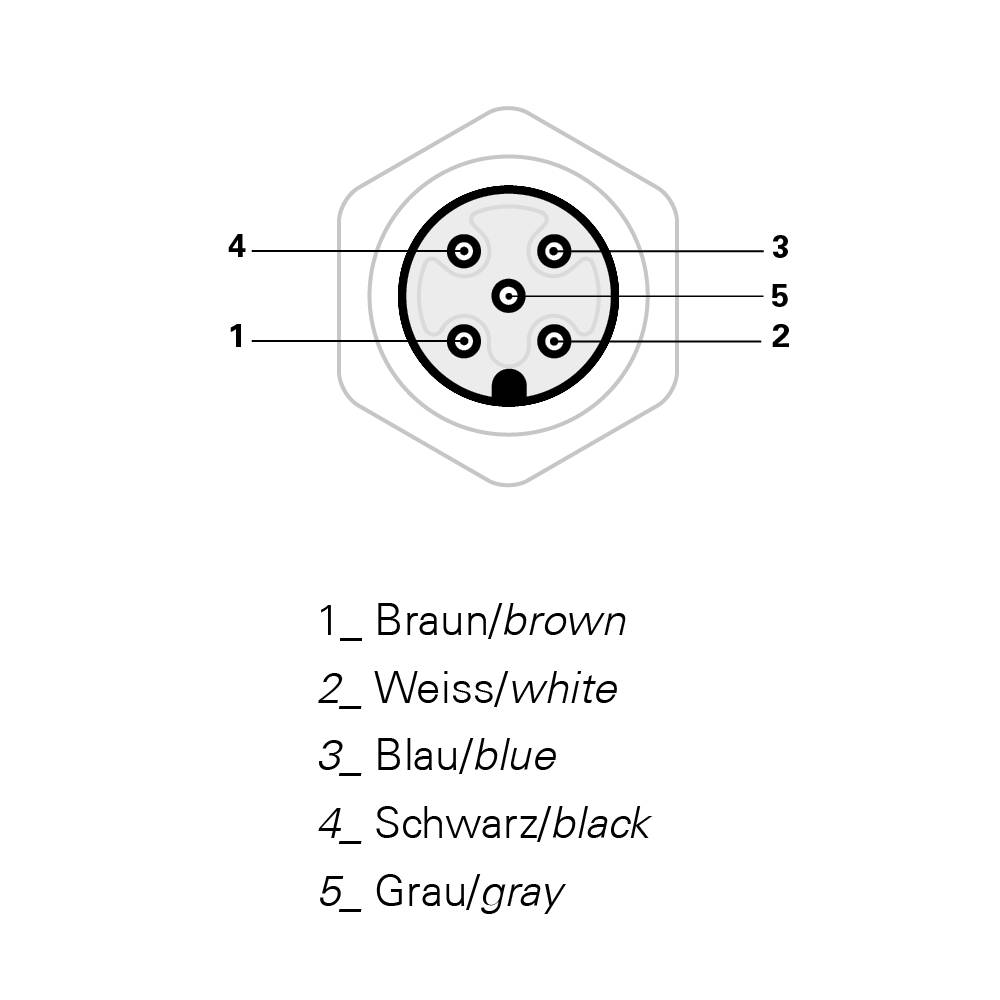

- Cable ends: Open ends, 5 wires/ M12 socket, straight
- Number of pins: 5
- Coding: A-coded
- Forward resistance (ohms): < 0.005
- Material: Metal, CuZn, nickel-plated
- Material contacts: Metal, CuSn, gold-plated
- Protection class (mounted): IP65, IP67, IP68
- Current load per PIN: 4000 mA
- Insulation resistance (Ohm) > : 100,000,000
- Material cable: PURE
- Material grip body: Plastic, TPU, BK
- Material contact carrier: Plastic, TPU, BK
- Material seal: FPM / FKM
- Packaging type
Piece
- Product type
Connection cable
- Type
200100-11
- Operating voltage
24 V DC
- Operating current
4000 mA
- Lead length
10 m
- Connection
M12 socket
- Material
PUR
- Protection class
IP68
- Min. temperature
+90 °C
- Max. temperature
-30 °C
- Length
10 m
n.rel.
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2383400 LED2WORK Connection cable 200100-11 24 V DC Piece 1 pc(s)
Description

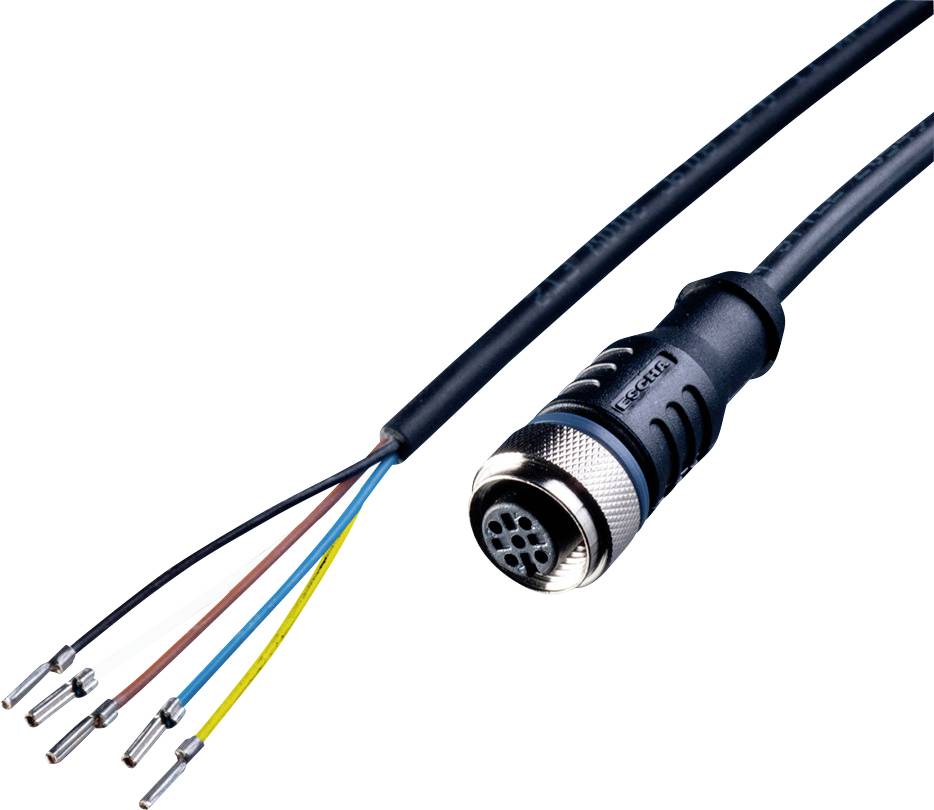

24V DC sensor cable, 10 m, black, 5-wire, with M12 socket A-coded on one side and five open cable ends on the other side.
For connecting LED2WORK 24V DC lights with M12-A connection, mainly RGB and RGB-W lights. A 5-pin cable is required for the signal function.
This text is machine translated.
For connecting LED2WORK 24V DC lights with M12-A connection, mainly RGB and RGB-W lights. A 5-pin cable is required for the signal function.
