LED2WORK Holder Leuchtenhalter TUBELED_70 EVO (L x W x H) 70 x 52 x 76 mm 1 Pair
EAN:
Part number:
Item no:
Product type
Holder
Energy efficiency rating
n.rel.
Type
Leuchtenhalter TUBELED_70 EVO
Features
Light direction adjustment
Material
Stainless steel
Datasheet (PDF)
Technical specifications
- Design: Bracket
- Weight: 200 g
- Gross weight 250 g
- Special feature: LED lamp can be adjusted in the inclination and fixed
- Number: 1 pairs
- Suitable for:TUBELED_70 EVO
- Material: Stainless steel
- Dimensions (mm) 70 x 52 x 76 mm
- Attachment to light: Screw connection at the end caps of the lamp
- Product type
Holder
- Type
Leuchtenhalter TUBELED_70 EVO
- Features
Light direction adjustment
- Material
Stainless steel
- Length
70 mm
- Width
52 mm
- Height
76 mm
- Dim
(L x W x H) 70 x 52 x 76 mm
n.rel.
Stainless steel
52 mm
76 mm
Mounting kit
70 mm
Stainless steel
FALSE
TRUE
FALSE
Documents & Downloads
Datasheet
Datasheet 3384501 LED2WORK Holder Leuchtenhalter TUBELED_70 EVO (L x W x H) 70 x 52 x 76 mm 1 Pair
User & Safety Instructions
User & Safety Instructions 3384501 LED2WORK Holder Leuchtenhalter TUBELED_70 EVO (L x W x H) 70 x 52 x 76 mm 1 Pair
Description

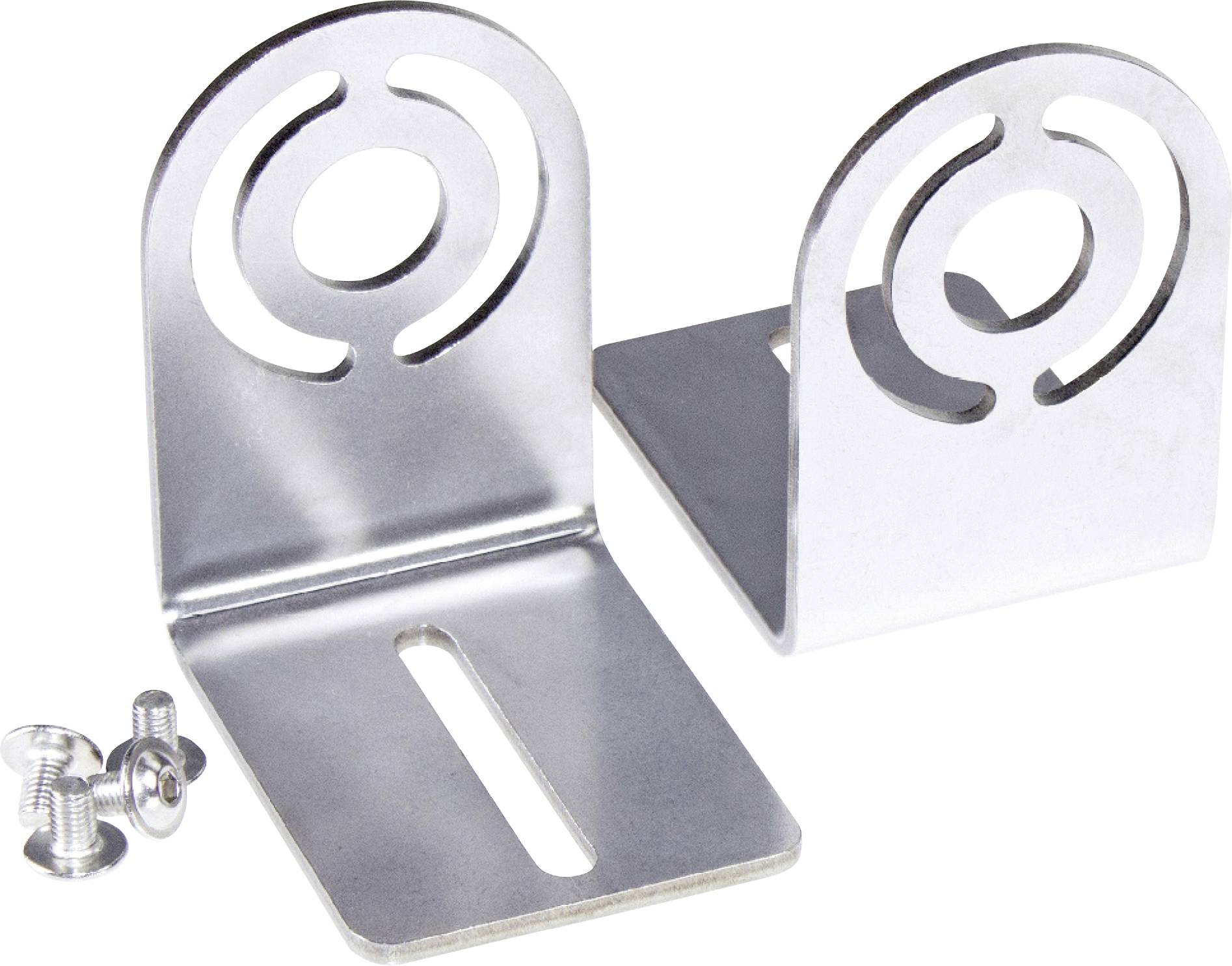

Mounting angle made of stainless steel for swiveling mounting of the LED machine lamp TUBELED_70 EVO. There are 2 thread holes each in the end caps of the TUBELED_70 EVO where the light is fastened to the bracket with screws. With slightly loosened screws the TUBELED_70 EVO can be aligned in the inclination and then fixed in place.
