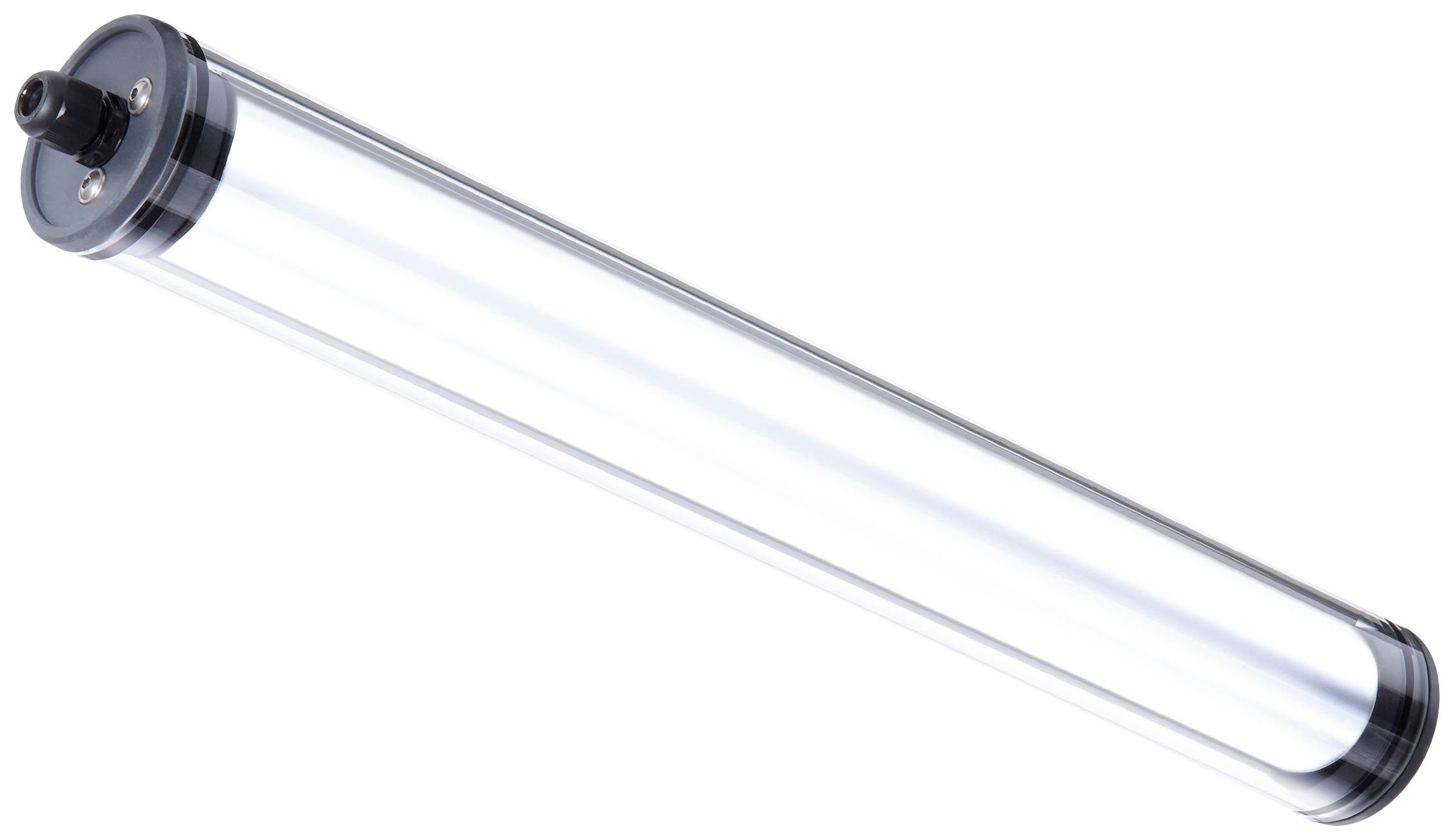

LED2WORK Industrial LED indicator light INROLED_70 13 W 1890 lm 125 ° 24 V DC (L x W x H) 650 x 70 x 70 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Industrial LED indicator light
Operating voltage
24 V DC
Power
13 W
Luminous flux (Φ)
1890 lm
IP rating
IP67
IP69K
Datasheet (PDF)
Highlights & Details
INROLED_70 eco DC, 650 mm, 24V DC, 125°, protective tube Borosilicate
- High-power LED chips for daylight white 5200-5700KUniversal angle of radiation 125° and color reproduction Ra >85Microprismatic cover directly over LED chipsHousing: Protective tube made of borosilicate glass, 4 mm thickHardly any warming, residual heat dissipation through ribbed aluminum base bodiesUsed for ambient temperatures from -10°C to +40°C in the 24V variant and from -10°C to +30°C in the 230V variant230V light output, depending on version, from 810 lm to 2440 lmVery high protection class IP67/IP69K and service life > 60,000h (L70/B10)Connection voltage, depending on version, 24V DC or 220-240V ACCable entry via cable gland (Wago terminal inside)All variants can be electrically chained (cascadable)Mounting via standard Ø70 fasteners or optional fixing accessoriesMade in Germany
Technical specifications
- Angle of radiation: 125°Connection lamp: Cable inlet, terminal lying insideConnected load lamp 24 V DC ± 10%Design: LED construction pipe lampMounting accessories: OptionalSpecial feature: Cascadable (max. 4.0 A)Operating temperature -10... +45 °CGross weight 2850 gDimmable: Optionally via accessoriesFade-out: Micro-prismsColour reproduction (Ra): > 85Manufactured in: GermanyWeight: 2200 gHeight [B] x width [C]: Ø 70 mmLamp life > 60,000 hLamp power ~13 WLight output 145 lm/WLamp light current 1890 lmLength [A]: 650 mmSMD LED lampLight color: Daylight white (5200 - 5700K)Light distribution: DirectMaterial cover: Safety glass, jump-proofMaterial housing: AluminiumModel: INROLED_70 with borosilicate glass protective tubeRisk group (DIN EN 62471): Free groupProtection class IP67/IP69KProtection class III
- Product type
Industrial LED indicator light
- Type
INROLED_70
- LED features
dimmable
- Operating voltage
24 V DC
- Operating current
540 mA
13 W
- Min. colour temperature
5200 K
- Colour temperature (max.)
5700 K
- Luminous flux (Φ)
1890 lm
- Radiation angle
125°
- Connection
Clamp
- Material
Aluminium
IP67
IP69K
- Protection class
III
- Min. temperature
-10 °C
- Max. temperature
+45 °C
- Length
650 mm
- Width
70 mm
- Height
70 mm
- Dim
(L x W x H) 650 x 70 x 70 mm
n.rel.
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2861299 LED2WORK Industrial LED indicator light INROLED_70 13 W 1890 lm 125 ° 24 V DC (L x W x H) 650 x 70 x 70 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2861299 LED2WORK Industrial LED indicator light INROLED_70 13 W 1890 lm 125 ° 24 V DC (L x W x H) 650 x 70 x 70 mm 1 pc(s)
Description
INROLED_70Linkable, universal, cost-optimizedMade of borosilicate glass (safety glass), the INROLED_70 has a wide range of applications.The diameter of 70 mm gives the lamp a high light output.As such, it can be used in buildings and building services as well as in the classical areas of application like machines and plants.Thanks to their electrical concatenability, even and economic illumination of large areas is possible.Benefits:High light output, flicker-free light without UV and IR components, flat and homogeneous lightOptimal glare and light scattering with micro-prism cover4 mm strong Borosilicate glass protects the electronics from water, dust and moistureHigh degree of protection (IP67/IP69K)Simple conversion and retrofittingLamps can be connected electricallyWide range of usesApplication areas:Machinery and technical equipmentHome SystemsUnderground car parksArchitecture
