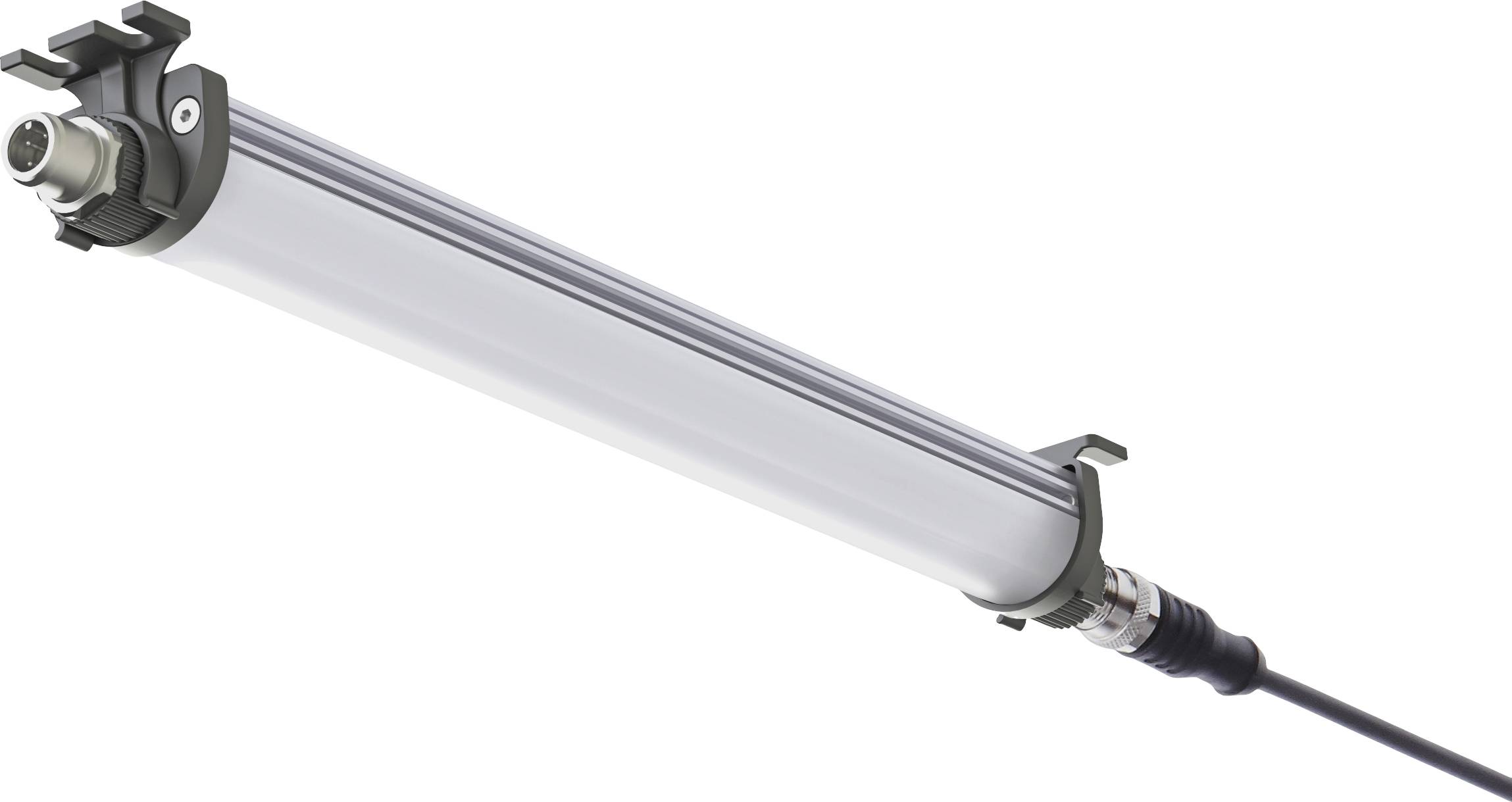

LED2WORK Industrial LED indicator light LEANLED II 8 W 1260 lm 120 ° 24 V DC (L x W x H) 350 x 26 x 31 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Industrial LED indicator light
Operating voltage
24 V DC
Power
8 W
Luminous flux (Φ)
1260 lm
IP rating
IP54
Datasheet (PDF)
Highlights & Details
LEANLED II, 350 mm, opal white cover, cascadable
- Bright illumination in daylight white 5200-5700KBeam angle 120° and color reproduction Ra>85Slim, hardly built-in LED light, only 25 mm highClear or opal white cover made of polycarbonate, break and splinter-freeHeat is discharged to the rear via an aluminum baseProtection class IP 54 and long service life > 60,000h (L80/B10)Direct supply voltage 24V DC and M12 A-coded plug connectionCascadable variants with M12 plug connector for electrical linkingCE and ETL listed2 pairs of light holders for fixed or swiveling mounting in the delivery scopeMade in Germany
Technical specifications
- Beam angle: 120°Connection light: M12 A-codedConnected load lamp 24 V DC ± 10%LED mounting lamp typeMounting accessories: Fixing bracket including, other attachments optionalSpecial feature: Cascadable, several lights can be electrically connected up to a total current of max. 4AOperating temperature -10... +60 °CGross weight 450 gDimmable: Optionally via accessoriesOpal white glareColour reproduction (Ra): > 85Manufactured in: GermanyWeight: 300 gHeight [B] x width [C]: 31 mm x 26 mmLamp life > 60,000 hLamp power ~8 WLight output 145 lm/WLamp light current 1260 lmLength [A]: 350 mmSMD LED lampLight color: Daylight white (5200 - 5700K)Light distribution: DirectMaterial cover: Polycarbonate, opal whiteMaterial housing: AluminiumLEANLED II, matt, cascadableRisk group (DIN EN 62471): Free groupProtection class: IP54Protection class III
- Product type
Industrial LED indicator light
- Type
LEANLED II
- LED features
dimmable
- Operating voltage
24 V DC
- Operating current
330 mA
8 W
- Min. colour temperature
5200 K
- Colour temperature (max.)
5700 K
- Luminous flux (Φ)
1260 lm
- Radiation angle
120°
- Connection
M12 plug
- Material
Aluminium
IP54
- Protection class
III
- Min. temperature
-10 °C
- Max. temperature
+60 °C
- Length
350 mm
- Width
26 mm
- Height
31 mm
- Dim
(L x W x H) 350 x 26 x 31 mm
n.rel.
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2861294 LED2WORK Industrial LED indicator light LEANLED II 8 W 1260 lm 120 ° 24 V DC (L x W x H) 350 x 26 x 31 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2861294 LED2WORK Industrial LED indicator light LEANLED II 8 W 1260 lm 120 ° 24 V DC (L x W x H) 350 x 26 x 31 mm 1 pc(s)
Description
LED surface-mounted lampLEANLED IIVery slim, very light, electrically chain-ableThe bright LED inspection lamp LEANLED II can be used in almost any machine without chips or KSS. The splinter-proof cover made from polycarbonate protects the LED technology against dust and water spray. Further variants are cascadable. These versions can be electrically interlinked and thus light installations can be quickly and easily realized which illuminate large production areas uniformly and evenly.Like the previous model, the LEANLED II comes with clear or opal white cover. In length, 3 variants have been added, so that now you can choose between seven lengths. The new provided brackets are to be highlighted, with which the rod light can be attached firmly or flexibly.Benefits:Very bright LED inspection lampUniform, flicker-free illuminationHomogeneous illumination via opal-white apertureCascadable, or electrically connected version – thus a simple voltage supply of several lamps with a power lead.Wide range of usesApplication areas:Wood processingFor machines and systems with very small spaceDry working areas in metal processingVending machines and bending machinesPunching machines and conveyor beltsLogistics and many other applications
