LED2WORK Industrial LED indicator light TOPLED Daylight white 8.5 W 680 lm 40 ° 24 V DC 1 pc(s)
EAN:
Part number:
Item no:
Product type
Industrial LED indicator light
Operating voltage
24 V DC
Power
8.5 W
Luminous flux (Φ)
680 lm
IP rating
IP67
Datasheet (PDF)
Highlights & Details

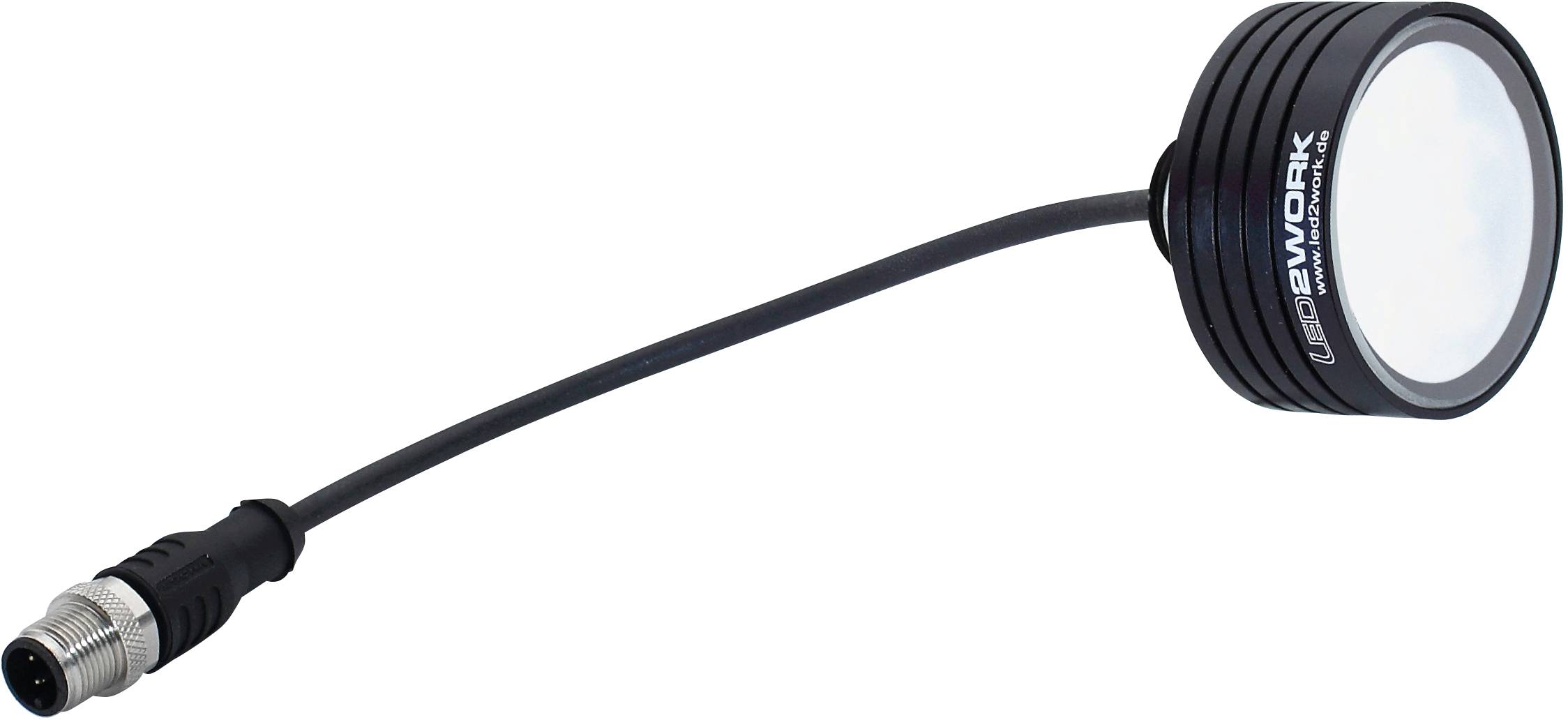

LED2WORK 111913-01 Machine lamp 1 pc
- High power LED chips for daylight white 5200-5700K
- Bright with 680 lm, a beam angle 40° and color reproduction Ra>80
- 4 mm ESG: Oil-resistant and chip-safe
- Suitable for CNC
- Use in ambient temperatures from -10°C to +40°C.
- Aluminum base for good heat dissipation to the rear – no thermal stress
- Protection class IP 67 and long life > 50.000h (L70/B10)
- Connection 24V DC via 150 mm connecting cable with M12 plug connector
- Mounting directly on the machine cover
- Manufactured in Germany
Technical specifications
- Attachment: Via rear-side M18x1.5 thread
- Assembly: 6 high power LEDs
- Fade-out: Non-brittle ESG matt
- Color rendering (Ra): RA>80
- Weight (net): 0.1 kg
- Service life > : 50,000 operating hours
- Light output: Approx. 80 lm/W.
- Light distribution: Direct / direct
- Mains connection: M12 sensor plug
- Risk group (DIN EN 62471): Group 1
- Product type
Industrial LED indicator light
- Type
TOPLED
- Features
incl. cable
- LED features
splashproof
- Operating voltage
24 V DC
8.5 W
- Factory colour
Daylight white
- Min. colour temperature
5200 K
- Colour temperature (max.)
5700 K
- Luminous flux (Φ)
680 lm
- Radiation angle
40°
- LEDs
6
- Lead length
150 mm
- Connection
M12 plug
- Material
Aluminium
IP67
- Protection class
III
- Min. temperature
-10 °C
- Max. temperature
+40 °C
n.rel.
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2258438 LED2WORK Industrial LED indicator light TOPLED Daylight white 8.5 W 680 lm 40 ° 24 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2258438 LED2WORK Industrial LED indicator light TOPLED Daylight white 8.5 W 680 lm 40 ° 24 V DC 1 pc(s)
Description
TOPLED design
Very small, extremely robust and bright
The TOPLED was developed for the lighting of a work piece to be processed from close proximity.
The LED surface-mounted lamp requires only a minimum of space, is extremely robust and provides for a powerful and precise illumination.
Thanks to its small size, it can be used very close to the machining field.
APPLICATION AREAS
Metal processing
Plastics processing
Machine Tools
CNC systems
Woodworking machines
YOUR BENEFITS
Precisely positioned, flicker-free light without UV and IR component
Near, low-shade illumination at the processing field
Easy to upgrade or retrofit in machine tools
Oil-resistant and safe against chipping
