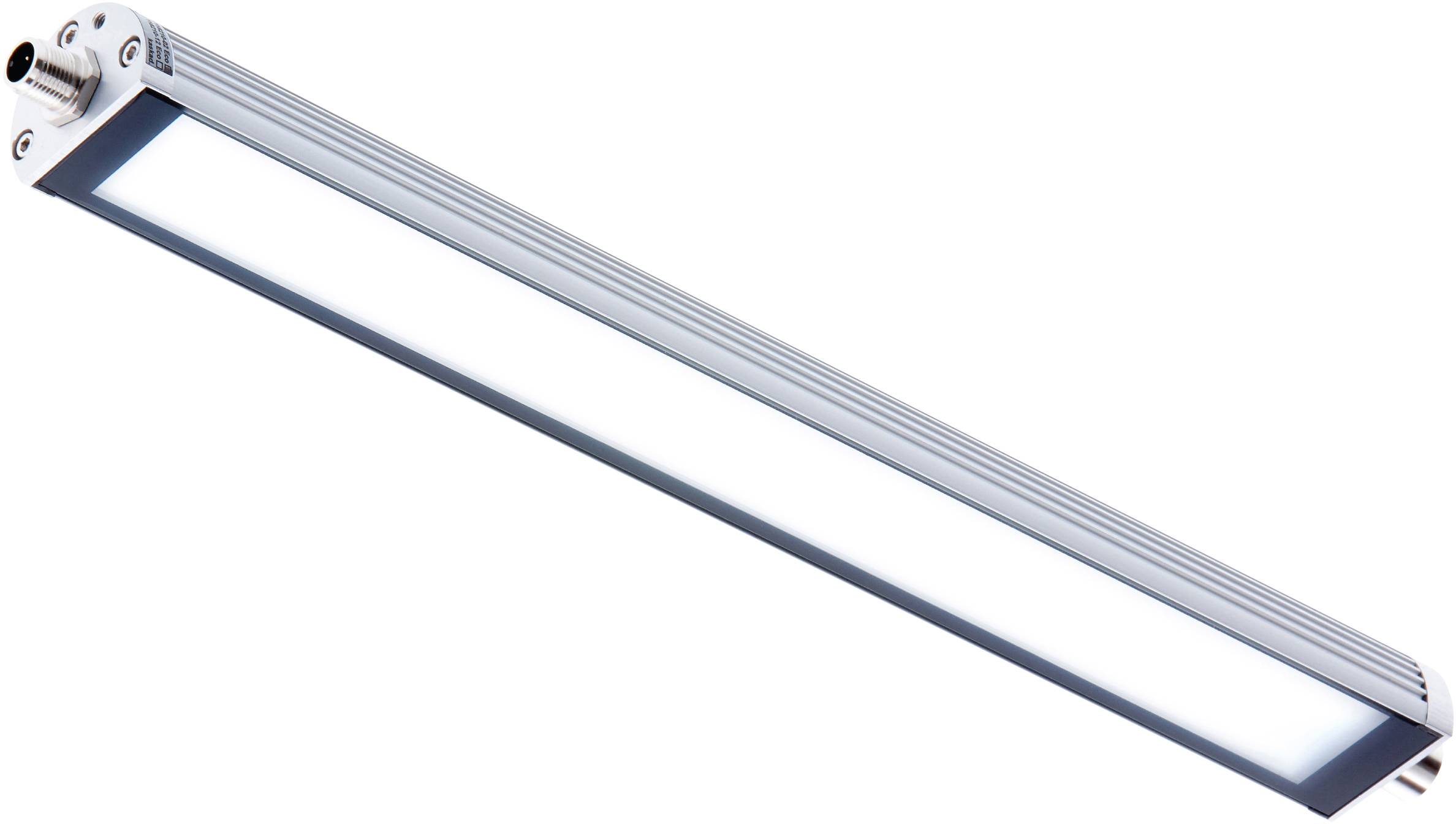

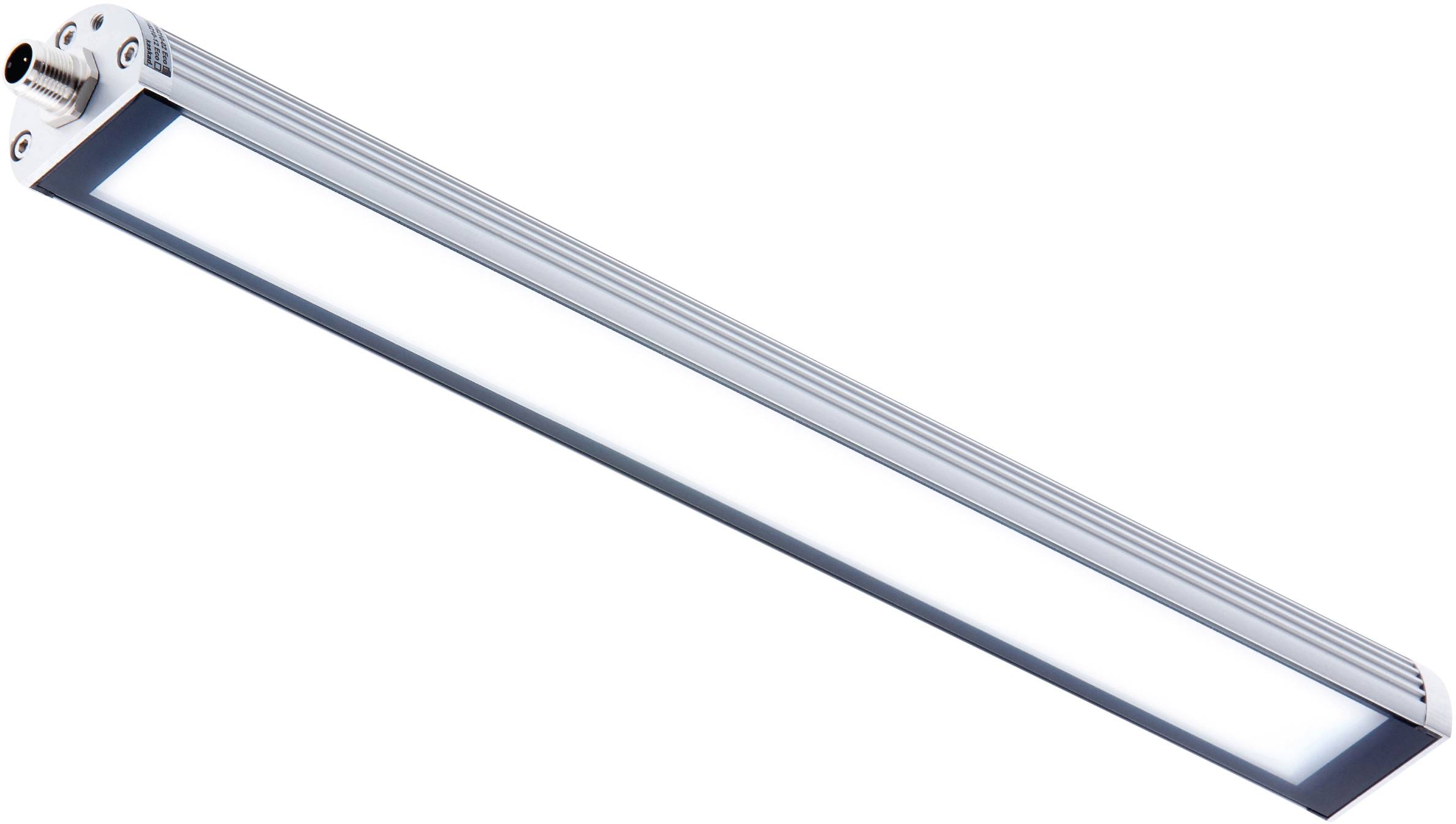

LED2WORK Industrial LED indicator light TUBELED_40 II 16 W 1722 lm 100 ° 24 V DC 1 pc(s)
EAN:
Part number:
Item no:
Product type
Industrial LED indicator light
Operating voltage
24 V DC
Power
16 W
Luminous flux (Φ)
1722 lm
IP rating
IP67
IP69K
Datasheet (PDF)
Highlights & Details
LED2WORK 118210-01 Machine lamp 1 pc
- Protection class IP67/IP69K and above-average service life > 60.000h (L70/B10)
- Direct connection voltage 24V DC and cascading via M12 plug connections
- Attachment via separately available accessories
- Manufactured in Germany
- High power LED chips for daylight white 5200-5700K – very bright
- Beam angle 100° and good color reproduction Ra >85
- Anti-spawning, 4 mm thick ESG with opal white masking
- Safe from chipping, vibration and shock - 100% CNC suitable
- Oil-resistant seals (FKM seal Vition®)
- Light Forming technology
- Luminous flux, depending on the version, from 459 lm to 4953 lm
- Luminous flux-optimized power versions and power-optimized ECO versions
- Use in ambient temperatures from -30°C to +60°C.
- Heat dissipation via aluminum extrusion profile – no burning of KSS
Technical specifications
- Attachment: M4
- 56 SMD LEDs
- Suppression: Diffuser, ESG
- Color rendering (Ra): RA>85
- Weight (net): 0.50 kg
- Cascadable: No.
- Lifetime > : 60,000 operating hours
- Light yield: Approx. 107.6 lm/W.
- Light distribution: Direct / direct
- Mains connection: M12 sensor plug
- Risk group (DIN EN 62471): Free group
- Product type
Industrial LED indicator light
- Type
TUBELED_40 II
- Features
heat-proof
- LED features
splashproof
- Operating voltage
24 V DC
16 W
- Min. colour temperature
5200 K
- Colour temperature (max.)
5700 K
- Luminous flux (Φ)
1722 lm
- Radiation angle
100°
- LEDs
56
- Connection
M12 plug
- Material
Aluminium
IP67
IP69K
- Protection class
III
- Min. temperature
-30 °C
- Max. temperature
+40 °C
- Width
40 mm
n.rel.
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2258481 LED2WORK Industrial LED indicator light TUBELED_40 II 16 W 1722 lm 100 ° 24 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2258481 LED2WORK Industrial LED indicator light TUBELED_40 II 16 W 1722 lm 100 ° 24 V DC 1 pc(s)
Description
TUBELED_40 II.
Conspicuous inconspicuous, rich in variants
Narrow installation space with simultaneously harsh production conditions and temperatures up to + 60° C – this is the area in which TUBELED_40 II moves like no other.
With a lamp diameter of only 40 mm and in 7 available lengths, the slim LED surface-mounted lamp is an all-round talent – in the light yield and in the application possibilities.
AREAS OF APPLICATION:
Metal processing: Microprecision machines, eroding machines, punching automation
Plastics processing
Wood working
Wherever narrow installation conditions prevail
YOUR BENEFITS
Bright and flicker-free illumination, without UV and IR component
Generous lighting by 100° surface light
Space-saving geometry
Easy and fast retrofitting of machines
Liquid-tight and temperature-resistant
High degree of protection IP67/IP69K
For high ambient temperatures up to +60°C.
Electrically linkable variants (cascadable)
On/off interface: Load-free switching, flashing, flashing and dimming possible
This text is machine translated.
