Name: LED2WORK Industrial LED indicator light TUBELED_40 II Basic-Line 1785 lm 100 ° 24 V DC 1 pc(s)
Brand: LED2WORK
SKU: 3741736

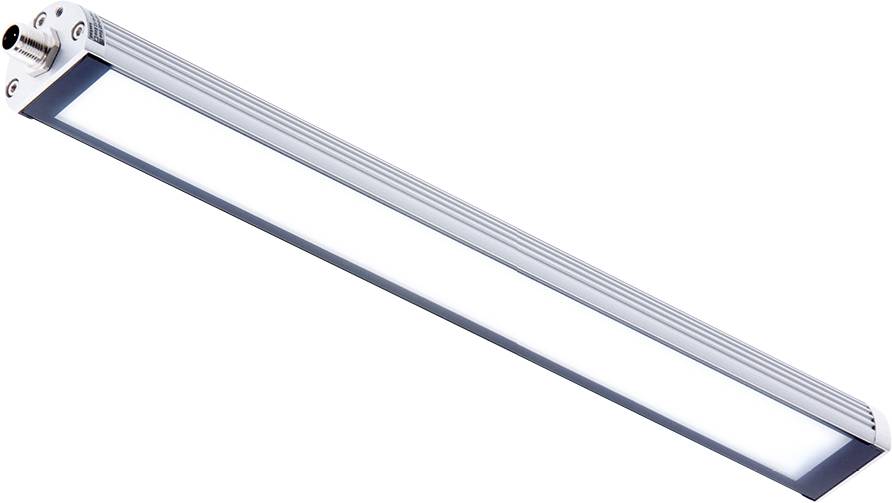

A long, rectangular LED light fixture with a metallic frame, used for ceiling or wall installation, designed for energy-efficient lighting.

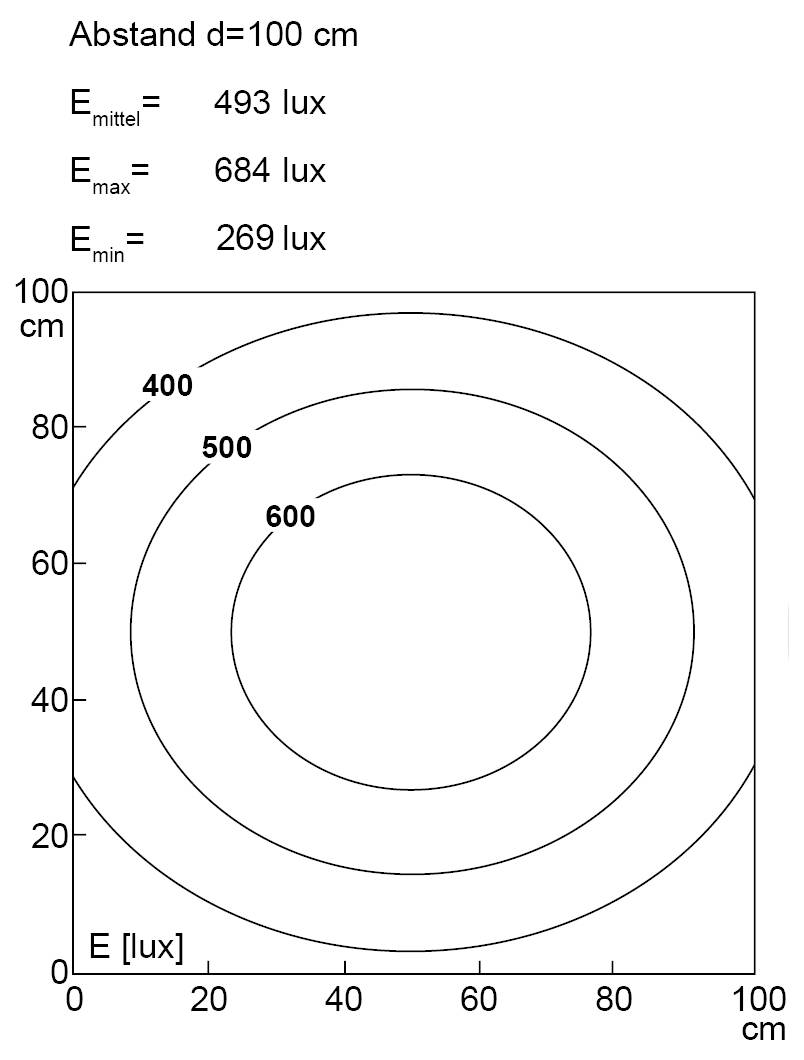

'Illumination distribution plot at distance 100 cm with concentric circles labeled 400, 500, 600 lux. E_mittel=493 lux, E_max=684 lux, E_min=269 lux.'

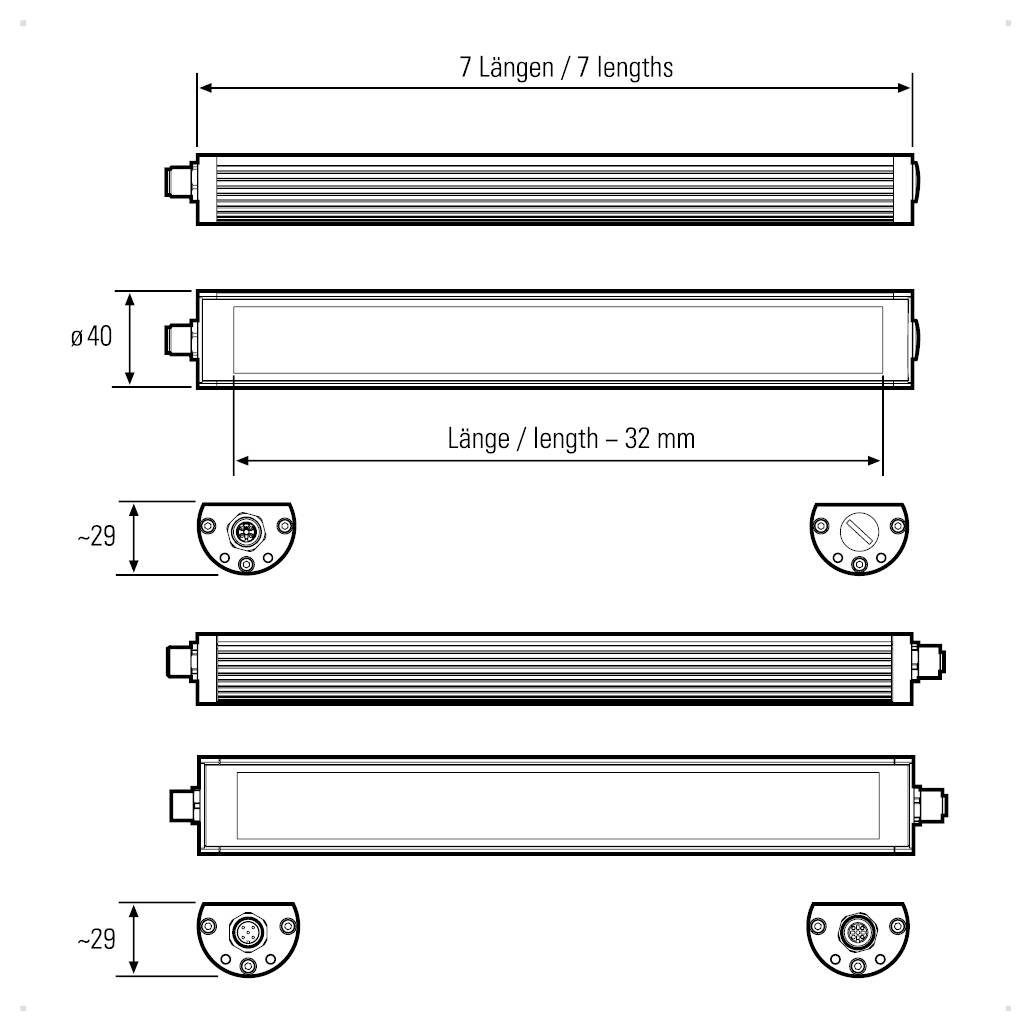

'Diagram of a cylindrical object with dimensions: length options in 7 increments, Ø 40 mm, and end-to-end length 32 mm including connectors.'

1/3

Product type

Industrial LED indicator light

Operating voltage

24 V DC

Luminous flux (Φ)

1785 lm

IP rating

IP67

Energy efficiency rating

n.rel.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Industrial LED indicator light

Type: TUBELED_40 II Basic-Line

Operating voltage: 24 V DC

Luminous flux (Φ): 1785 lm

Radiation angle: 100°

Connection: M12 plug

: IP67

Protection class: IP67

RoHS-compliant: Yes

: n.rel.

: III

: 40 mm

: None

: DC

: 11-11 W

: Aluminium

: Screw-on plate

: 80-89

: 40 mm

: 540 mm

: 29 mm

: LED not exchangeable

: 20-24 V

: IP67

: TRUE

: FALSE

: 5700-5700 K

: 11.6 W

: 1785 lm

: White

: 155 lm/W

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3741736 LED2WORK Industrial LED indicator light TUBELED_40 II Basic-Line 1785 lm 100 ° 24 V DC 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3741736 LED2WORK Industrial LED indicator light TUBELED_40 II Basic-Line 1785 lm 100 ° 24 V DC 1 pc(s)

Description

The TUBELED_40 II Basic-Line carries the same DNA as the TUBELED_40 II, but deliberately refrains from functions such as on/off interface and electrical chain. As a cost-optimized version, it complements the tried and tested lighting system with an economical solution for applications with reduced functional requirements. Externally identical, it is equipped with a specially adapted LED lamp, which provides reliable light output at attractive conditions. With seven new versions, the Basic-Line offers a robust machine lamp for all areas of application where functionality and economic efficiency are in the foreground.
