LED2WORK Industrial LED indicator light VARILED II Power 12 W 1899 lm 24 V DC (L x W x H) 298 x 40.2 x 13.7 mm Piece 1 p
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Industrial LED indicator light
Operating voltage
24 V DC
Power
12 W
Colour temperature type
5600 K
Datasheet (PDF)
Technical specifications
- Light bulb LE-249p
- Lamp power 12 W
- Lamp light current 1899 lm
- Light output 155 lm/W
- Light distribution: Direct
- Light color: 5600K 3-step Macadam
- Connected load lamp 24 V DC ± 10%
- Device: External
- Connection light: M8 A-coded
- Protection class IP67
- Protection class III
- Colour reproduction (Ra): >85
- Lamp life > 100,000 h (L80/B10)
- Material housing: Aluminium and glass
- Height [B] x width [C]: 13.7 mm x 40.2 mm
- Length [A]: 298 mm
- Weight: 300 g
- Gross weight 360 g
- Risk group (DIN EN 62471): Free group
- Mounting accessories: No.
- Manufactured in: Germany
- Dimmable: Optionally via accessories
- Number of poles: 3
- Mounting: Direct
- Packaging type
Piece
- Product type
Industrial LED indicator light
- Type
VARILED II Power
- LED features
dimmable
- Operating voltage
24 V DC
12 W
- Colour temperature type
5600 K
- Luminous flux (Φ)
1899 lm
- Connection
M8 plug
- Material
Aluminium
Glass
IP67
- Protection class
III
- Length
298 mm
- Width
40.2 mm
- Height
13.7 mm
- Dim
(L x W x H) 298 x 40.2 x 13.7 mm
n.rel.
III
40.2 mm
None
DC
12-12 W
Aluminium
13.7 mm
Screw-on plate
80-89
298 mm
13.7 mm
LED not exchangeable
24-24 V
IP67
TRUE
FALSE
5600-5600 K
12 W
1899 lm
White
155 lm/W
D
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3384504 LED2WORK Industrial LED indicator light VARILED II Power 12 W 1899 lm 24 V DC (L x W x H) 298 x 40.2 x 13.7 mm Piece 1 p
User & Safety Instructions
User & Safety Instructions 3384504 LED2WORK Industrial LED indicator light VARILED II Power 12 W 1899 lm 24 V DC (L x W x H) 298 x 40.2 x 13.7 mm Piece 1 p
Description

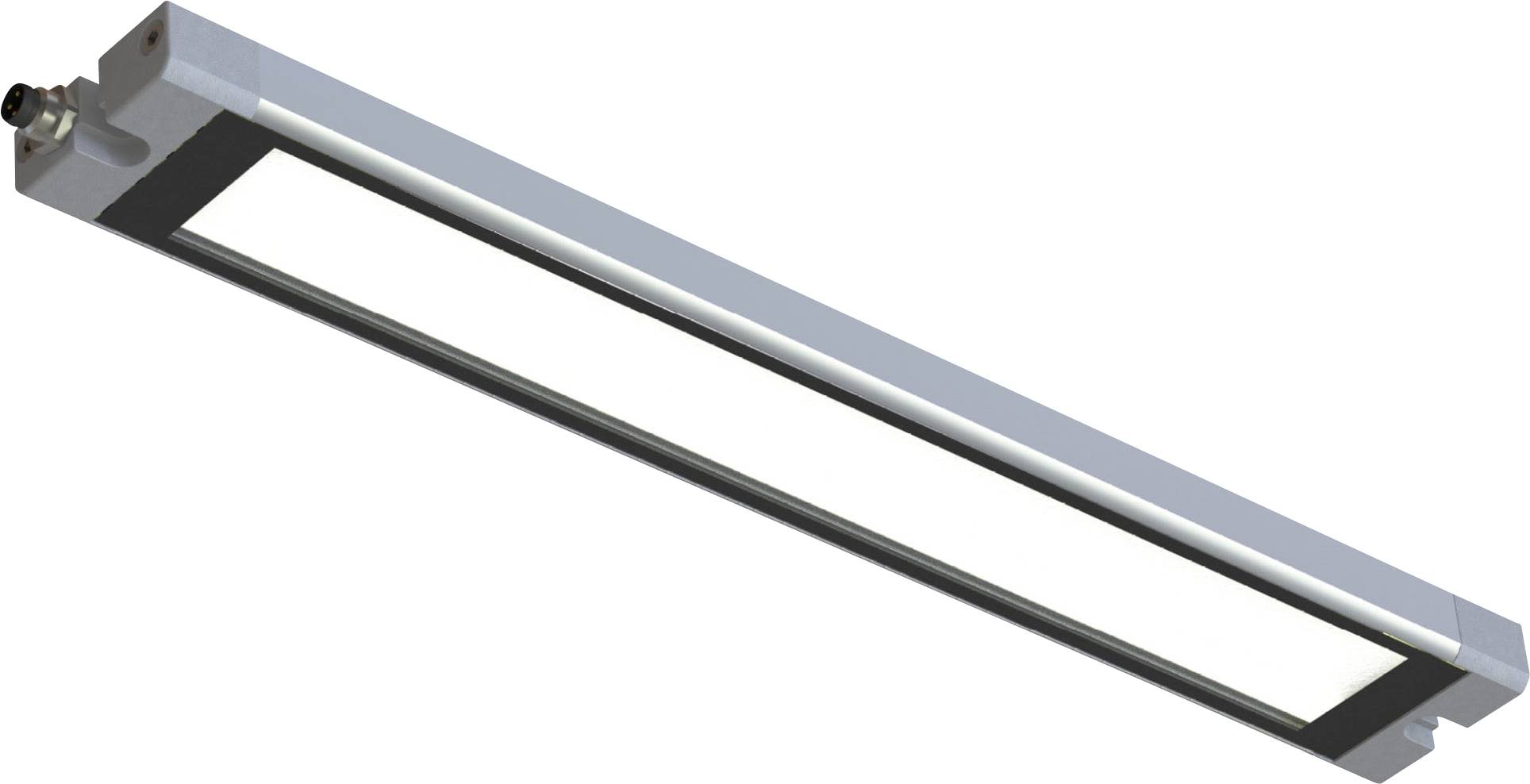

The VARILED II LED surface-mounted light is suited for original equipment or retrofits for lighting machines and systems. The LED light is compact, flat and extremely robust. The high degree of protection marks the VARILED II in its high level of protection against dust and fluids. Its advantage is that it has very homogeneous and glare-free illumination at an intensity not expected from such a flat lamp.
