Name: LED2WORK LED light PROFILED AC 11 W 1670 lm 100 ° (L x W x H) 500 x 65 x 45 mm 1 pc(s)
Brand: LED2WORK
SKU: 3384531

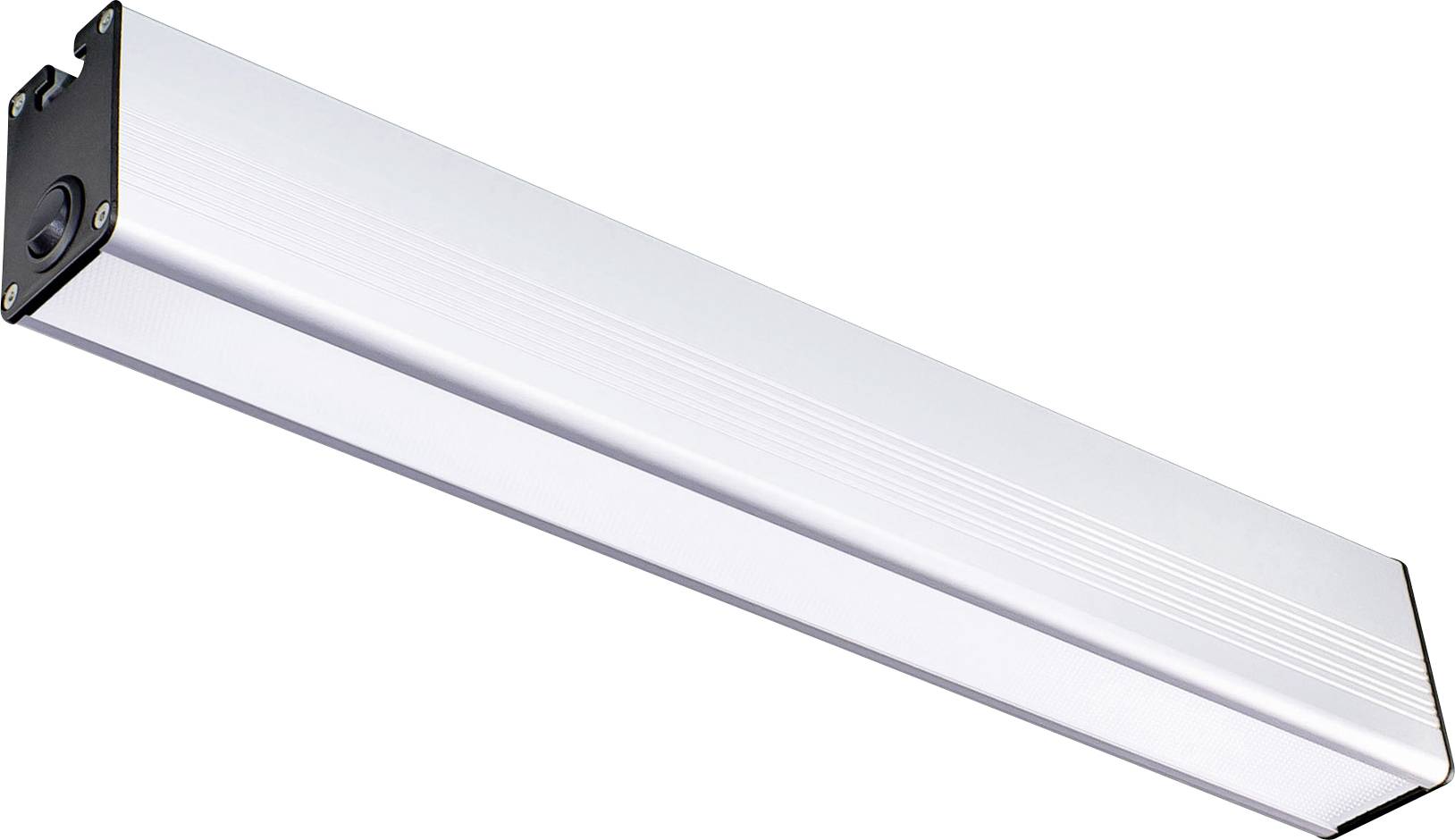

A rectangular, silver LED light with a black end piece. It is designed for mounting on the ceiling or wall.

1/2

Our service for you

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

PROFILED AC, 500mm, dimmable, cover micro-prisms, 100°, ~14W, 120-277V AC

Power= 11 W
Luminous flux (phi)= 1670 lm
Colour temperature type= 5600 K

Technical specifications

Design: Profile light with T-groove on the rear side
SMD LED lamp
Total output including driver: 14 W
Lamp power 11 W
Lamp light current 1670 lm
Light output 155 lm/W
Light distribution: Direct
Light color: 5600K 3-step Macadam
Connection value light: 120-277V AC ± 10%, 50-60 Hz
Operating device: Integrated
Connection lamp: Plug
Protection class: IP40
Protection class: I
Fade-out: Micro-prisms
Angle of radiation: 100°
Operating temperature: -10 °C - +45 °C
Colour reproduction (Ra): >85
Lamp life > 100,000 h (L80/B10)
Material housing: Aluminium
Material cover: Plastic
Height [B] x width [C]: 65 mm x 45 mm
Length [A]: 500 mm
Weight: 1450 g
Gross weight 1800 g
Risk group (DIN EN 62471): Free group
Mounting accessories: Optional
Manufactured in: Germany
Special feature: Universal lamp with dimmer
Dimmable: Internal dimmer

Product type: LED light

Type: PROFILED AC

LED features: dimmable

Min. operating voltage: 120 V AC

Max. operating voltage: 277 V AC

Operating voltage: 120 - 277 V AC

: 11 W

Min. colour temperature: 5600 K

Colour temperature type: 5600 K

Colour temperature (max.): 5600 K

Luminous flux (Φ): 1670 lm

Radiation angle: 100°

Connection: Plug

Material: Aluminium

: IP40

Protection class: I

Min. temperature: -10 °C

Max. temperature: +45 °C

Length: 500 mm

Width: 65 mm

Height: 45 mm

Dim: (L x W x H) 500 x 65 x 45 mm

: n.rel.

Light bulb included: Yes

: I

: 45 mm

: None

: Other

: Aluminium

: AC

: FALSE

: 11-11 W

: Not required

: 80-89

: TRUE

: 3

: 500 mm

: 65 mm

: Metal/plastic

: LED not exchangeable

: TRUE

: FALSE

: 120-277 V

: FALSE

: IP40

: TRUE

: FALSE

: FALSE

: 1

: TRUE

: 5600-5600 K

: 14 W

: 1670 lm

: White

: FALSE

: FALSE

: Ending

: 100000 h

: FALSE

: FALSE

: FALSE

: TRUE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: TRUE

: FALSE

: Other

: 155 lm/W

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: 80 %

: 10 %

: No

: No

: No

: FALSE

: FALSE

: C

: FALSE

: 0.79

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3384531 LED2WORK LED light PROFILED AC 11 W 1670 lm 100 ° (L x W x H) 500 x 65 x 45 mm 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3384531 LED2WORK LED light PROFILED AC 11 W 1670 lm 100 ° (L x W x H) 500 x 65 x 45 mm 1 pc(s)

Description

The PROFILED is a universal working place- and industrial light for applications around technical plants, packaging, at work places or assembly lines. The robust and robust LED-light is mounted with a T-groove 10 in the profile. The illumination of the surface as well as the wide light scattering is supported by the micro-prism cover. As standard, within the lamp series one can choose between connection variants with 24V or 120-277V and four lengths each.
