Name: LED2WORK LED light PROFILED AC 23 W 3674 lm 100 ° (L x W x H) 1000 x 65 x 45 mm 1 pc(s)
Brand: LED2WORK
SKU: 3384528

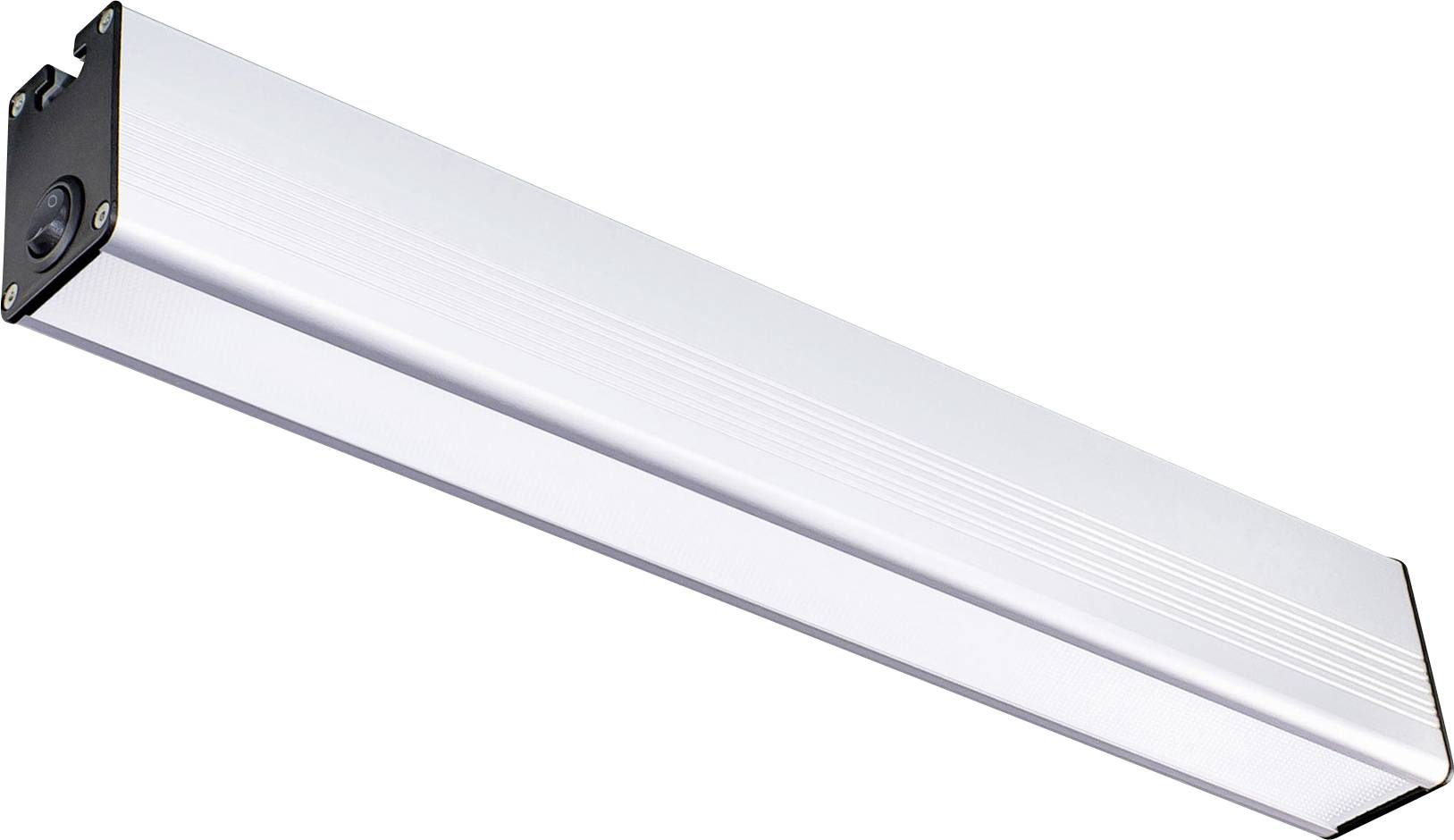

A long, rectangular LED light in a white housing with black end caps. Suitable for industrial or commercial lighting.

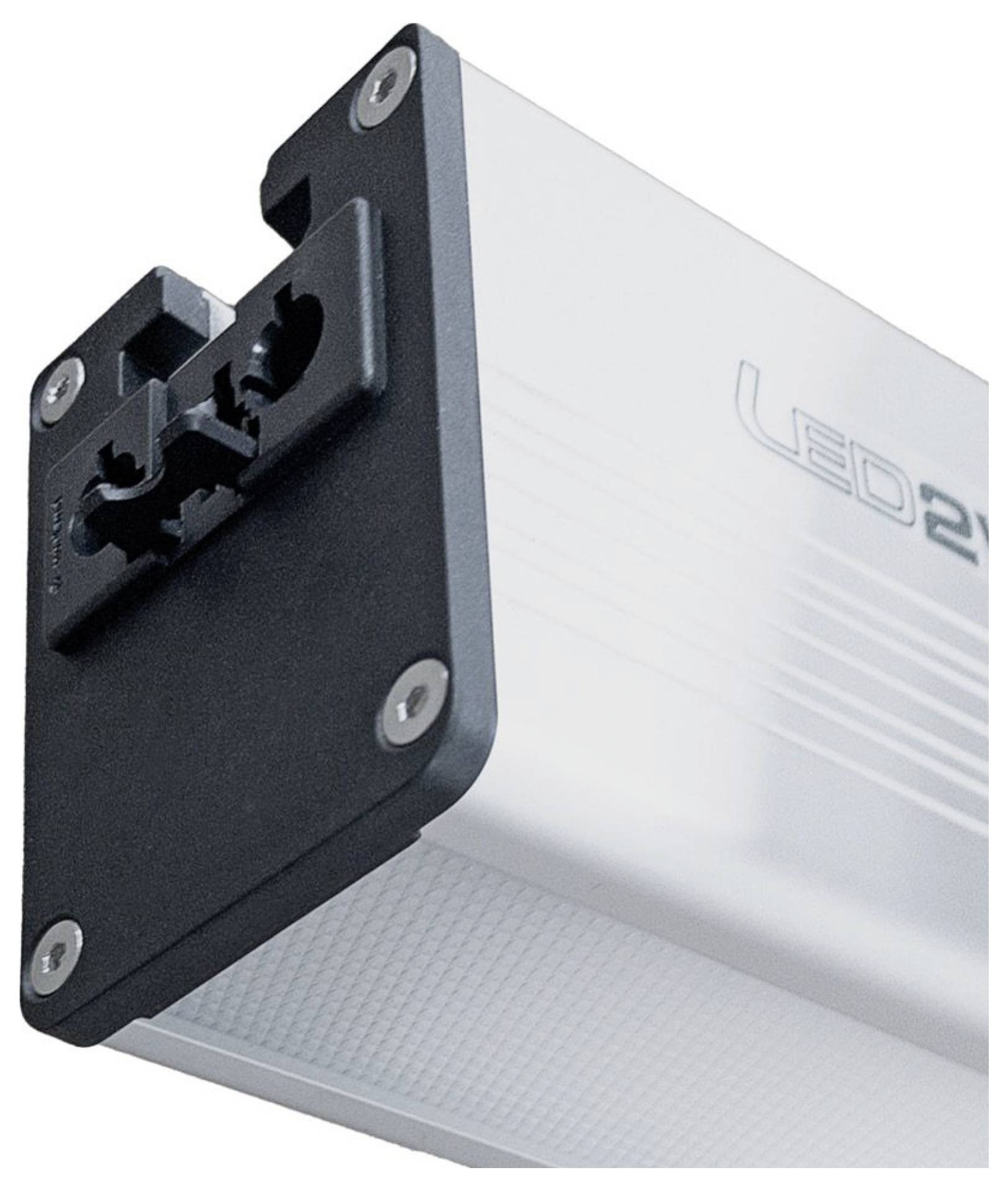

Close-up of an LED lamp with a rectangular housing and black mounting bracket at one end. 'LED' lettering visible.

1/2

Our service for you

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

PROFILED AC, 1000mm, abd. MICRO-PRISMS, 100°, ~27W, 120-277V AC

Power= 23 W
Luminous flux (phi)= 3674 lm
Colour temperature type= 5600 K

Technical specifications

Design: Profile light with T-groove on the rear side
SMD LED lamp
Total output including driver: 27 W
Lamp power 23 W
Lamp light current 3674 lm
Light output 155 lm/W
Light distribution: Direct
Light color: 5600K 3-step Macadam
Connection value light: 120-277V AC ± 10%, 50-60 Hz
Operating device: Integrated
Connection lamp: Plug
Protection class: IP40
Protection class: I
Fade-out: Micro-prisms
Angle of radiation: 100°
Operating temperature: -10 °C - +45 °C
Colour reproduction (Ra): >85
Lamp life > 100,000 h (L80/B10)
Material housing: Aluminium
Material cover: Plastic
Height [B] x width [C]: 65 mm x 45 mm
Length [A]: 1000 mm
Weight: 2440 g.
Gross weight 3140 g
Risk group (DIN EN 62471): Free group
Mounting accessories: Optional
Manufactured in: Germany
Special feature: Universal lamp

Product type: LED light

Type: PROFILED AC

Min. operating voltage: 120 V AC

Max. operating voltage: 277 V AC

Operating voltage: 120 - 277 V AC

: 23 W

Colour temperature type: 5600 K

Luminous flux (Φ): 3674 lm

Radiation angle: 100°

Connection: Plug

Material: Aluminium

: IP40

Protection class: I

Min. temperature: -10 °C

Max. temperature: 45 °C

Length: 1000 mm

Width: 65 mm

Height: 45 mm

Dim: (L x W x H) 1000 x 65 x 45 mm

: n.rel.

Light bulb included: Yes

: I

: 45 mm

: None

: Other

: Aluminium

: AC

: FALSE

: 23-23 W

: Not required

: 80-89

: TRUE

: 3

: 1000 mm

: 65 mm

: Metal/plastic

: LED not exchangeable

: TRUE

: FALSE

: 120-277 V

: FALSE

: IP40

: TRUE

: FALSE

: FALSE

: 1

: TRUE

: 5600-5600 K

: 27 W

: 3674 lm

: White

: FALSE

: FALSE

: Ending

: 100000 h

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: TRUE

: Other

: 155 lm/W

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: 80 %

: 10 %

: No

: No

: No

: FALSE

: FALSE

: C

: FALSE

: 0.79

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3384528 LED2WORK LED light PROFILED AC 23 W 3674 lm 100 ° (L x W x H) 1000 x 65 x 45 mm 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3384528 LED2WORK LED light PROFILED AC 23 W 3674 lm 100 ° (L x W x H) 1000 x 65 x 45 mm 1 pc(s)

Description

The PROFILED is a universal working place- and industrial light for applications around technical plants, packaging, at work places or assembly lines. The robust and robust LED-light is mounted with a T-groove 10 in the profile. The illumination of the surface as well as the wide light scattering is supported by the micro-prism cover. As standard, within the lamp series one can choose between connection variants with 24V or 120-277V and four lengths each.
