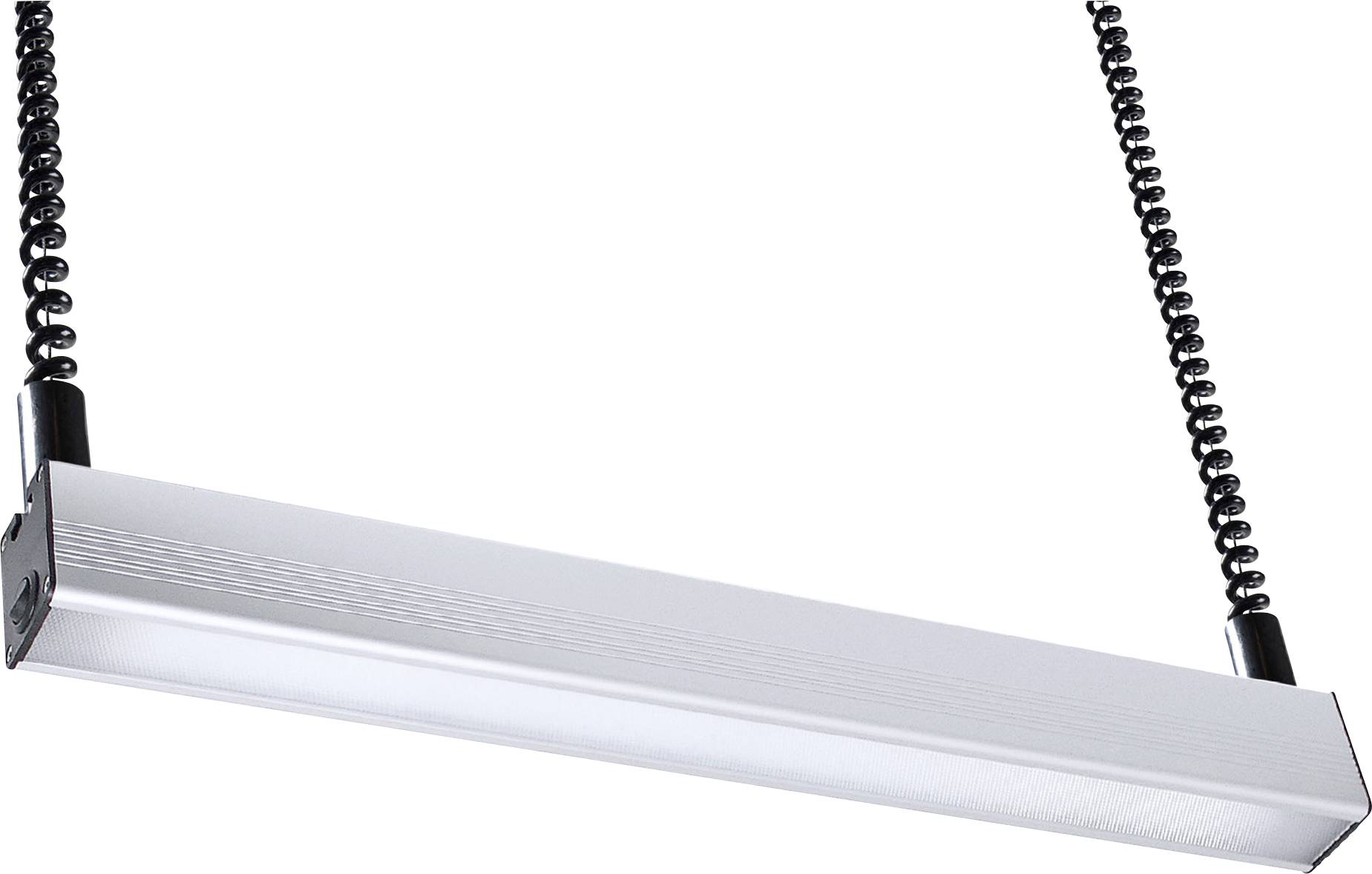

LED2WORK LED light PROFILED Zugpendel 30 W 4676 lm 100 ° (L x W x H) 1200 x 65 x 45 mm 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
PROFILED AC drawbar, 1200mm, draft range ~900mm 1800mm, cover microprisms, 100°, ~34W, 120-277V AC
- Power= 30 W
- Luminous flux (phi)= 4676 lm
- Colour temperature type= 5600 K
Our service for you
Technical specifications
- Design: Profile light with train pendulum suspension
- SMD LED lamp
- Total output including driver: 34 W
- Lamp power 30 W
- Lamp light current 4676 lm
- Light output 155 lm/W
- Light distribution: Direct
- Light color: 5600K 3-step Macadam
- Connection value light: 120-277V AC ± 10%, 50-60 Hz
- Operating device: Integrated
- Connection light: 1 pairs of drawbar, 1x 90-305V ceiling transfer point, 3 m cable with open cable ends
- Protection class: IP40
- Protection class: I
- Fade-out: Micro-prisms
- Angle of radiation: 100°
- Operating temperature: -10 °C - +45 °C
- Colour reproduction (Ra): >85
- Lamp life > 100,000 h (L80/B10)
- Material housing: Aluminium
- Material cover: Plastic
- Height [B] x width [C]: 65 mm x 45 mm
- Length [A]: 1200 mm
- Weight: 3840 g
- Gross weight 4640 g
- Risk group (DIN EN 62471): Free group
- Mounting accessories: Optional
- Manufactured in: Germany
- Dimmable: No.

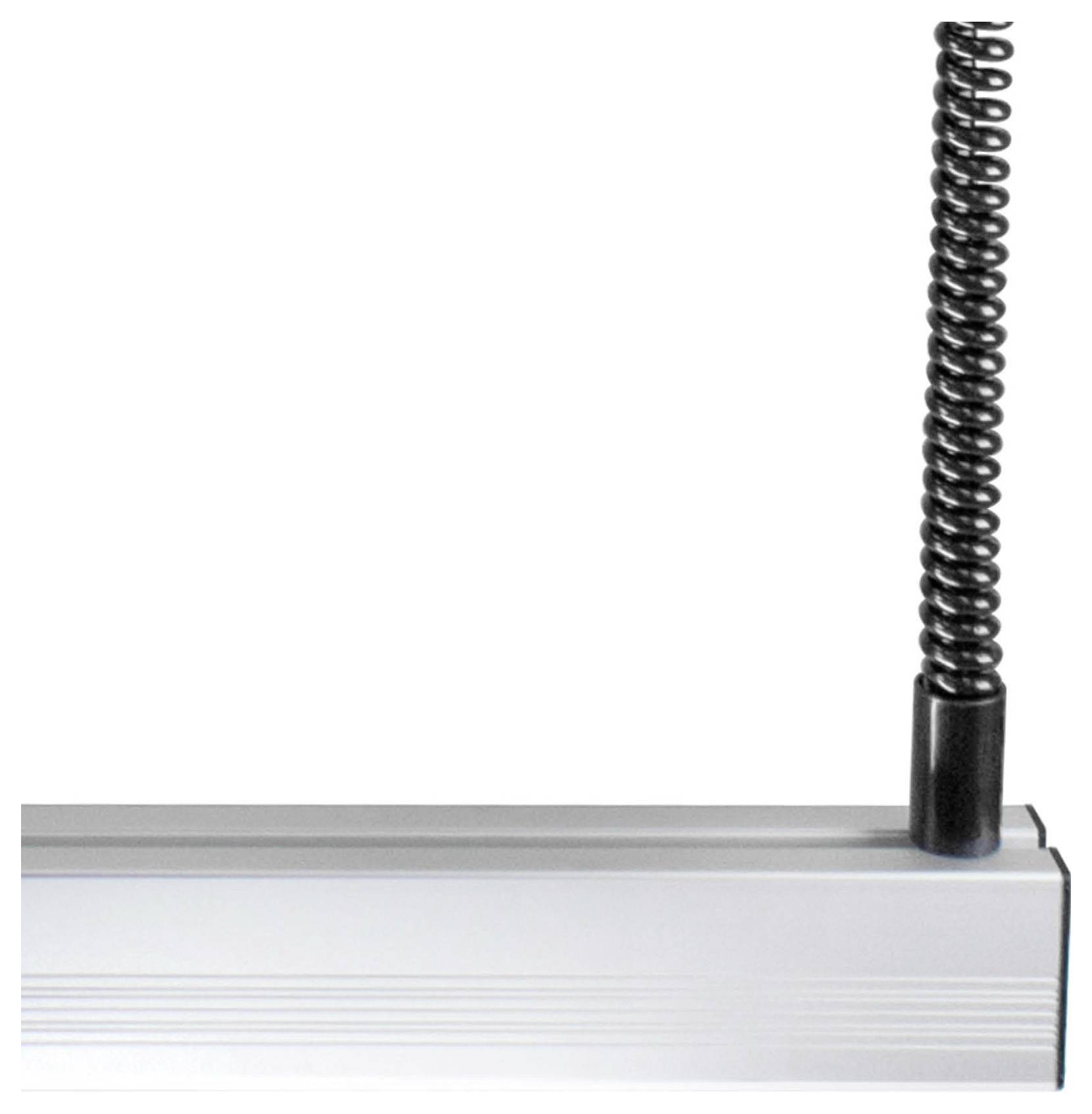

- Train pendulum extraction range of 900 mm - 1800 mm
- Product type
LED light
- Type
PROFILED Zugpendel
- LED features
not dimmable
- Min. operating voltage
120 V AC
- Max. operating voltage
277 V AC
- Operating voltage
120 - 277 V AC
30 W
- Colour temperature type
5600 K
- Luminous flux (Φ)
4676 lm
- Radiation angle
100°
- Lead length
3 m
- Connection
Open cable ends
- Material
Aluminium
IP40
- Protection class
I
- Min. temperature
-10 °C
- Max. temperature
45 °C
- Length
1200 mm
- Width
65 mm
- Height
45 mm
- Dim
(L x W x H) 1200 x 65 x 45 mm
n.rel.
- Light bulb included
Yes
I
45 mm
None
Screwed terminal
Aluminium
AC
FALSE
30-30 W
Not required
80-89
TRUE
3
1200 mm
65 mm
Metal/plastic
LED not exchangeable
FALSE
FALSE
120-277 V
FALSE
IP40
TRUE
FALSE
FALSE
1
TRUE
5600-5600 K
34 W
4676 lm
White
FALSE
FALSE
Ending
100000 h
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
TRUE
Other
155 lm/W
FALSE
FALSE
FALSE
FALSE
FALSE
80 %
10 %
No
No
No
FALSE
FALSE
C
FALSE
0.79
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3384523 LED2WORK LED light PROFILED Zugpendel 30 W 4676 lm 100 ° (L x W x H) 1200 x 65 x 45 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3384523 LED2WORK LED light PROFILED Zugpendel 30 W 4676 lm 100 ° (L x W x H) 1200 x 65 x 45 mm 1 pc(s)
Description
The PROFILED AC drawbar is a flexible pendant lamp for ceiling mounting. The robust and robust LED workplace lamp is mounted using the two pendants. The light intensity can be adjusted by pulling up or pulling down the lamp. Surface illumination as well as broad light scattering are supported by the micro prism cover over the light output. The extraction range is between 900mm and 1800mm. The PROFILED AC pendant lamp is connected to a ceiling transfer point.
