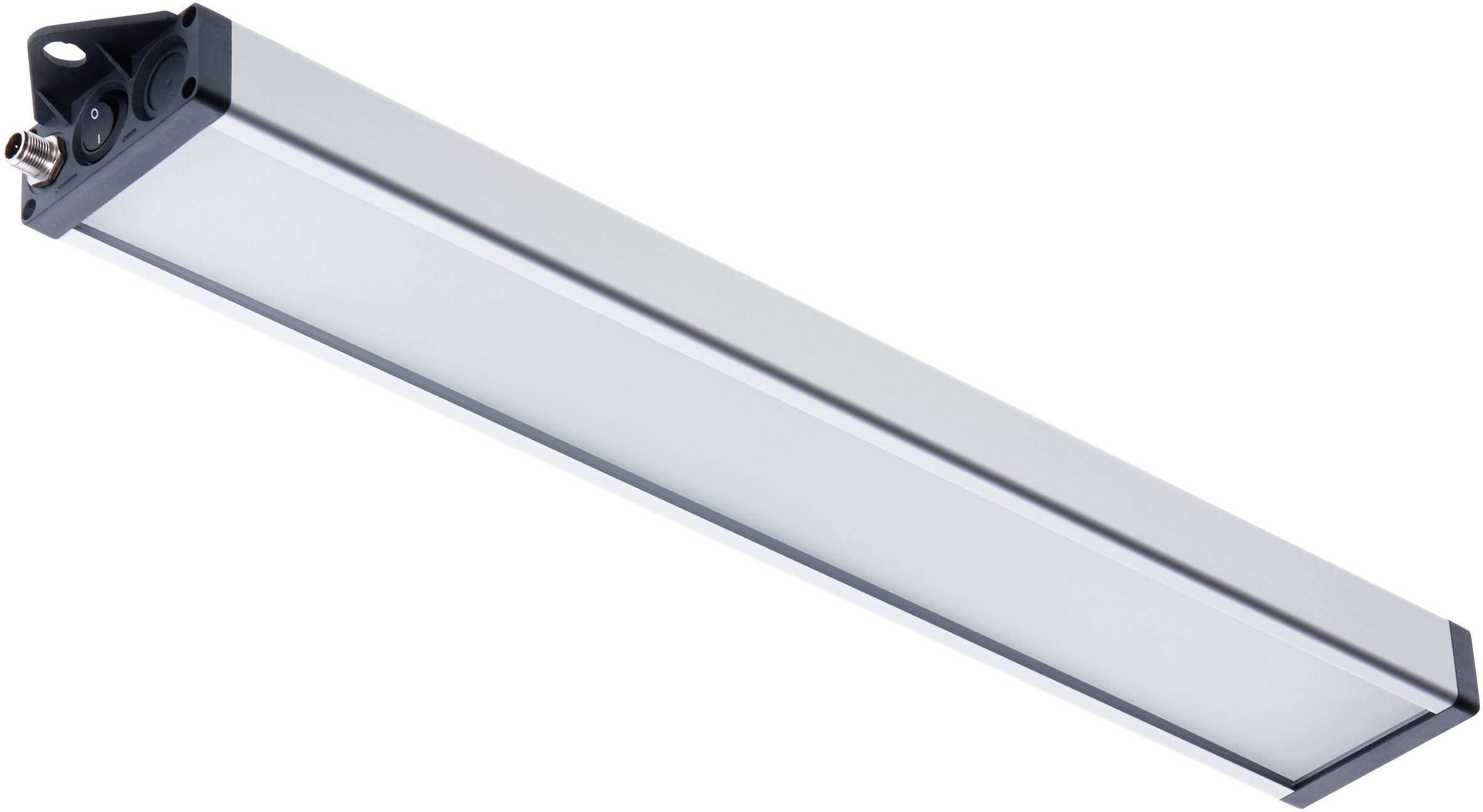

LED2WORK System light UNILED SL 24 W 2304 lm 100 ° 24 V DC 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
LED2WORK 110914-12 SYSTEM LIGHT 1 PCS
- Power= 24 W
- Luminous flux (phi)= 2304 lm
Technical specifications
- Fastening: Plastic straps on the housing (according to drawing)
- Equipped with 84 SMD LEDs
- Glare shield: mat cover made of plastic
- Color rendering (Ra): RA>85
- Weight (net): 1.0 kg
- Lifetime > : 60,000 operating hours
- Light output: Approx. 103 lm/W.
- Light distribution: Direct / direct
- Mains connection: 24 V DC connection (machine voltage);M12 sensor plug
- Risk group (DIN EN 62471): Free group
- Product type
System light
- Type
UNILED SL
- Operating voltage
24 V DC
24 W
- Min. colour temperature
5200 K
- Colour temperature (max.)
5700 K
- Luminous flux (Φ)
2304 lm
- Radiation angle
100°
- LEDs
84
- Connection
M12 plug
- Material
Aluminium
IP50
- Protection class
III
- Min. temperature
-10 °C
- Max. temperature
+50 °C
n.rel.
- Light bulb included
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2258503 LED2WORK System light UNILED SL 24 W 2304 lm 100 ° 24 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2258503 LED2WORK System light UNILED SL 24 W 2304 lm 100 ° 24 V DC 1 pc(s)
Description
UNILED SL
Strong, sensitive, pleasant
The UNILED SL creates a pleasant, motivating light atmosphere in (system) workplaces.
Provided with a matt disc, it generates a homogeneous, glare and shadow-free illumination at the same time with a strong light yield.
APPLICATION AREAS
Optical control workstations
System workstations
Test workstations
Can be used in machines without KSS and chip casting
YOUR BENEFITS
Homogeneous, low-shade, glare-free illumination
Pleasant atmosphere through daylight white 5200–5700K
Very good reproduction of colors and contrast values
Opal white fade-out for glare-free illumination or micro-prism fade-out wide light scattering
Integrated mounting straps
This text is machine translated.
Strong, sensitive, pleasant
The UNILED SL creates a pleasant, motivating light atmosphere in (system) workplaces.
Provided with a matt disc, it generates a homogeneous, glare and shadow-free illumination at the same time with a strong light yield.
APPLICATION AREAS
Optical control workstations
System workstations
Test workstations
Can be used in machines without KSS and chip casting
YOUR BENEFITS
Homogeneous, low-shade, glare-free illumination
Pleasant atmosphere through daylight white 5200–5700K
Very good reproduction of colors and contrast values
Opal white fade-out for glare-free illumination or micro-prism fade-out wide light scattering
Integrated mounting straps
