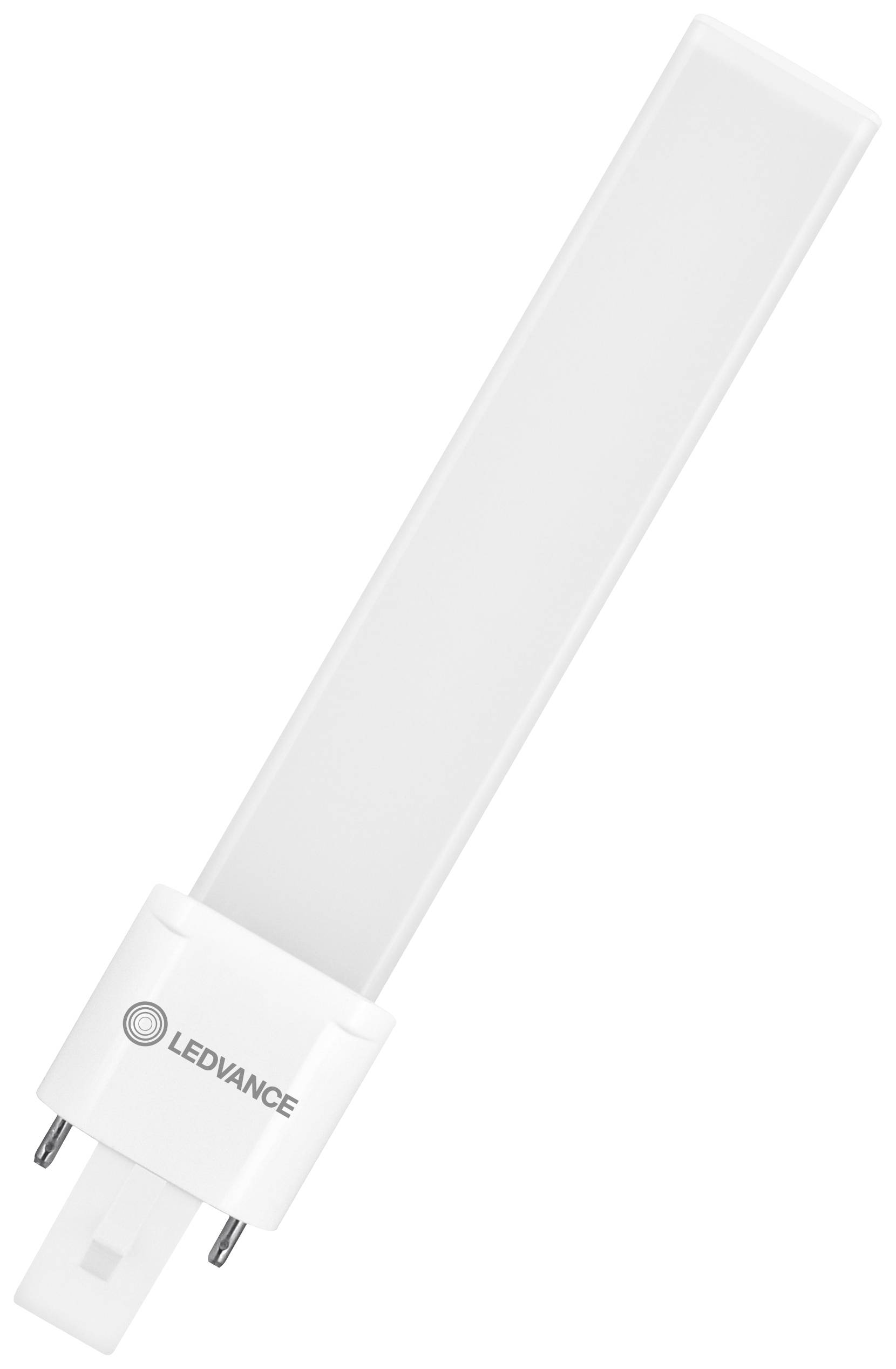

LEDVANCE 142724.LE.00.01 LED (monochrome) EEC D (A - G) G23 2-pin Rod shape 4 W = 9 W Cool white (Ø) .3 mm not dimmable
EAN:
Part number:
Item no:
Highlights & Details
LEDVANCE 142724.LE.00.01 LED (monochrome) G23 2-pin 4 W = 9 W Cool white Rod shape
- Power= 4 W
- Total luminous flux= 550 lm
- Colour temperature= 4000 K
- Cool white
Technical specifications
- Product type
LED (monochrome)
G23 2-pin
4 W
550 lm
9 W
- Factory colour
Multicolour
- Version
matte
- Radiation angle
120°
Rod shape
- Colour
Cool white
- ≙ power rating of a light bulb (range)
0 W - 9.9 W
- Light bulb features
not dimmable
4000 K
- Colour temperature range
4000 - 4000 K
No
30000 h
- Circuits
200000
- Operating voltage
220
230
240
- (Ø)
.3 mm
- Content
1 pc(s)
D (A - G)
- Dim
(Ø) .3 mm
- Operated via
LLB
IFTTT
- Colour rendering
840
- Colour consistency (SDCM)
6
- Colour rendering index
80 Ra
- Weight
41
- Power range
2.5 W - 4.9 W
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Total luminous flux
550 lm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2924076 LEDVANCE 142724.LE.00.01 LED (monochrome) EEC D (A - G) G23 2-pin Rod shape 4 W = 9 W Cool white (Ø) .3 mm not dimmable
User & Safety Instructions
User & Safety Instructions 2924076 LEDVANCE 142724.LE.00.01 LED (monochrome) EEC D (A - G) G23 2-pin Rod shape 4 W = 9 W Cool white (Ø) .3 mm not dimmable
Description
LED replacement for conventional compact fluorescent lamps in conventional ballast lights or from mains voltage. General lighting in ambient temperatures from -20 to +45 °C, such as, for example Supermarkets and department stores, corridors and hallways, hotels, restaurants.
This text is machine translated.
This text is machine translated.
Features
- Easy to set up
- Low energy consumption
- Easy lamp change thanks to compact design
- Operation directly at 230 V mains voltage possible
- Lifecycle up to 50 30000 hrs
- On-side 4-pin plug base G23
