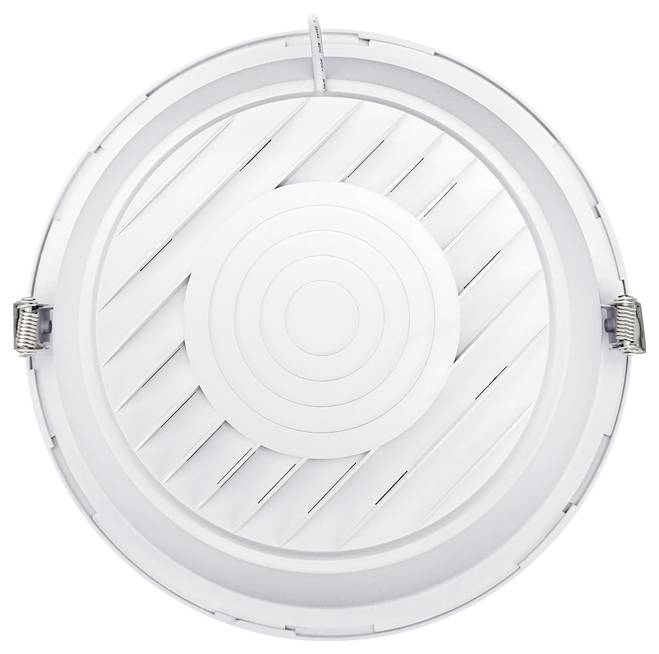

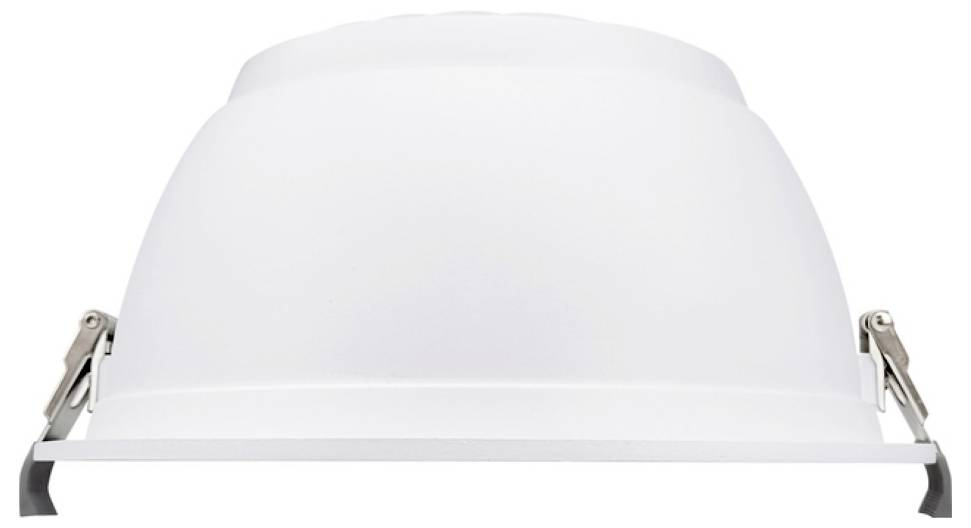

LEDVANCE 176277.LE.00.01 LED recessed light LED (monochrome) 36 W, 30 W, 25 W White
EAN:
Part number:
Item no:
Highlights & Details
LEDVANCE 176277.LE 00.01 DL CMFT he D250 P 36W ML 840 U19, white
- Power= 36 W, 30 W, 25 W Total luminous flux= 5200 lm Colour temperature= 4000 K Cool white
Technical specifications
- Product type
LED recessed light
- Operating voltage
220 V
240 V
- Bulb type
LED (monochrome)
36 W
30 W
25 W
- Total luminous flux
5200 lm
4000 K
- Colour
Cool white
- Radiation angle
60°
- Light features
Recess mount option
Ceiling mount option
- Recess diameter
250 mm
- Recess depth
124 mm
IP54
IP20
IK03
- Protection class
II
- Factory colour
White
- Material
Aluminium
Polycarbonate (PC)
- Weight
780 g
n.rel.
- Dim
(Ø x H) 265 mm x 124.10 mm
No
- Light bulb included
Yes
- Colour temperature range
4000 K
- Height
124.10 mm
- (Ø)
265 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3832720 LEDVANCE 176277.LE.00.01 LED recessed light LED (monochrome) 36 W, 30 W, 25 W White
Description
Product advantages
Energy savings thanks to system light yield: Up to 145 lm/W.
Through wiring possible via the supplied socket
High-quality polycarbonate frame to reduce the total lamp weight
Quick and easy installation thanks to a 3-pin, tool-free terminal connection box

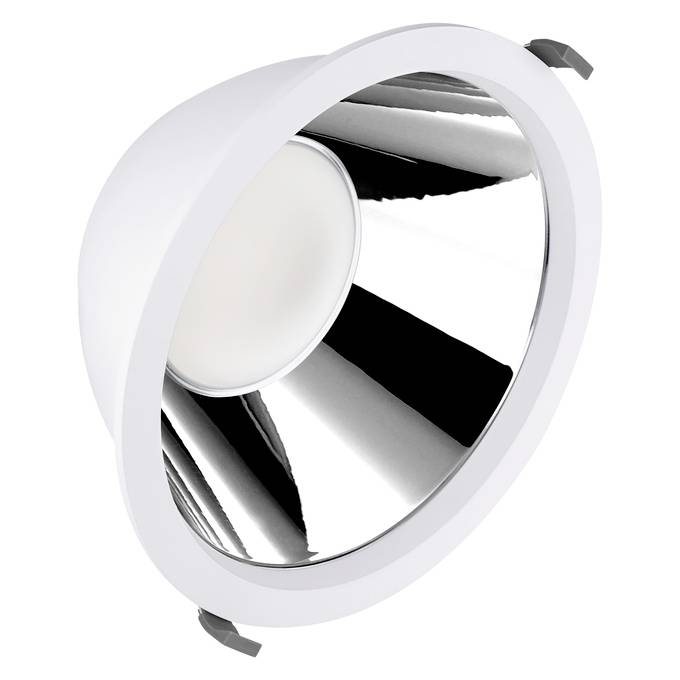

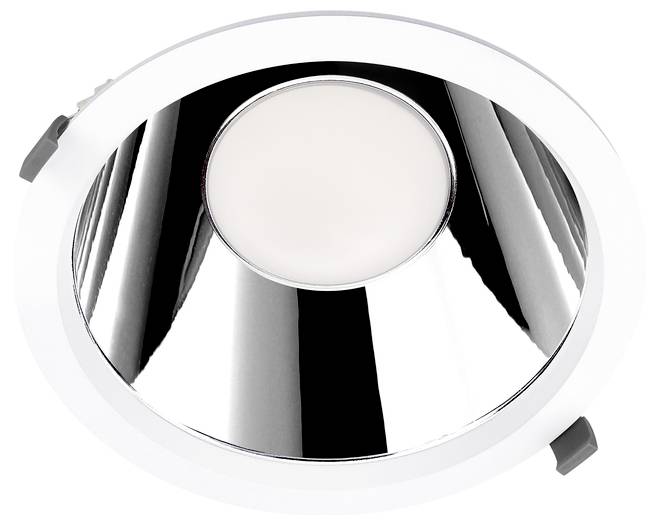

Even light with glare reduction thanks to the contained reflector and diffuser
Selectable power levels (multi lumen) via dip switches on the driver for a wide range of applications
Well suited for retrofitting with an extension ring as separate accessory
Use
Direct replacement for insertion lamps with fluorescent lamps
Offices, conference rooms
Reception areas, entrance areas, corridors, lifts
Product properties
Life (L80/B10): Up to 100,000 h (at 25 °C)
Consistent light color: ≤ 3 SDCM (threshold unit)
External driver with multi lumen function of up to 5220 lm
Aluminium lighting with three different sections and high gloss reflector UGR ≤ 19
Very homogeneous light distribution and reduced blending of UGR ≤ 19
Technical equipment
Safety cable for lamps included

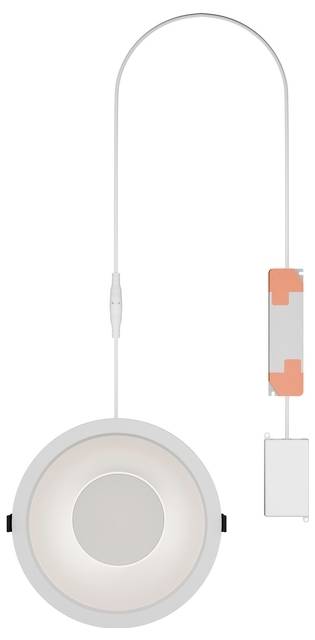

External ballast included
Connection box with 3-pin connection terminal included
Frame for surface mounting available as separate accessories
Gray and black replaceable rings available as separate accessories
Extension rings available as separate accessories
Extension ring D190 for retrofitting of D150 lamp, extension ring D240 for retrofitting of D200 lamp
Safety Instructions
All electrical connections must be made by qualified personnel only.
Caution, risk of electric shock.
The lamps are not intended for covering with heat insulating material.
